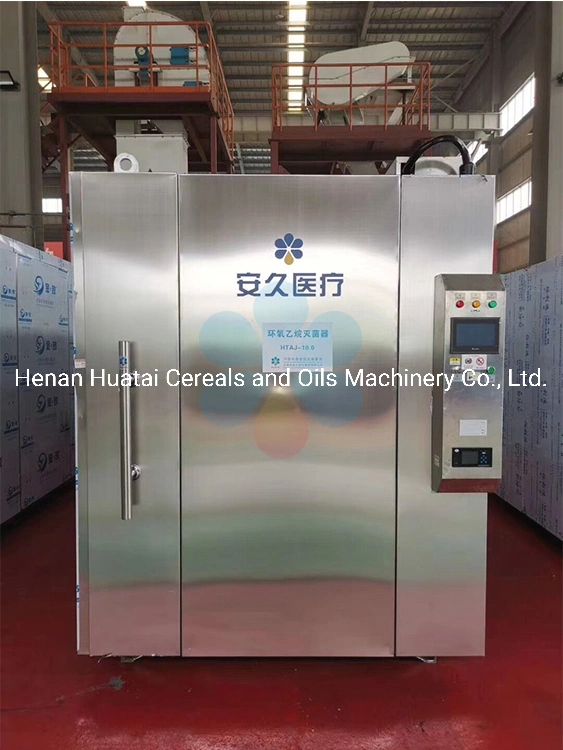

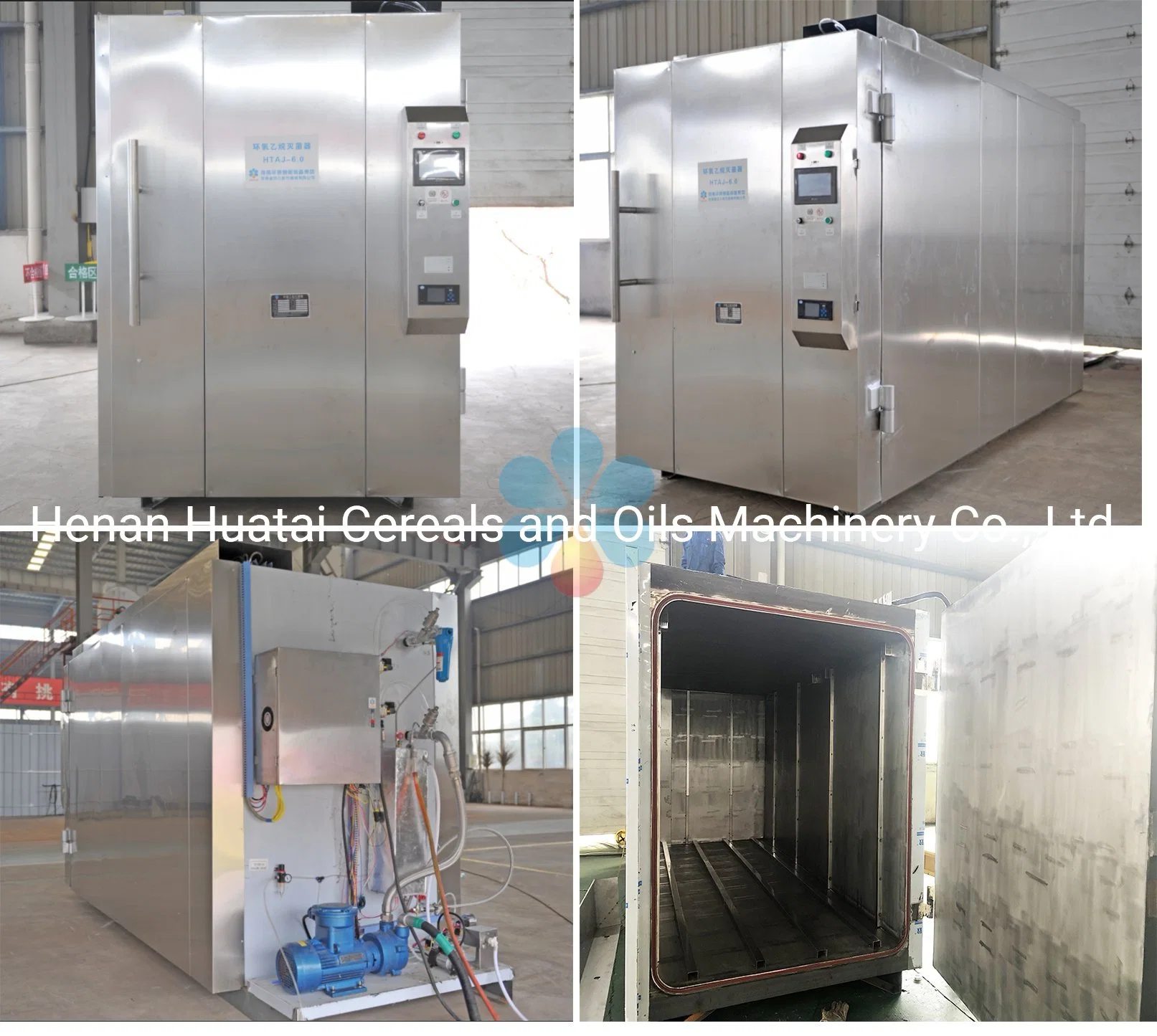

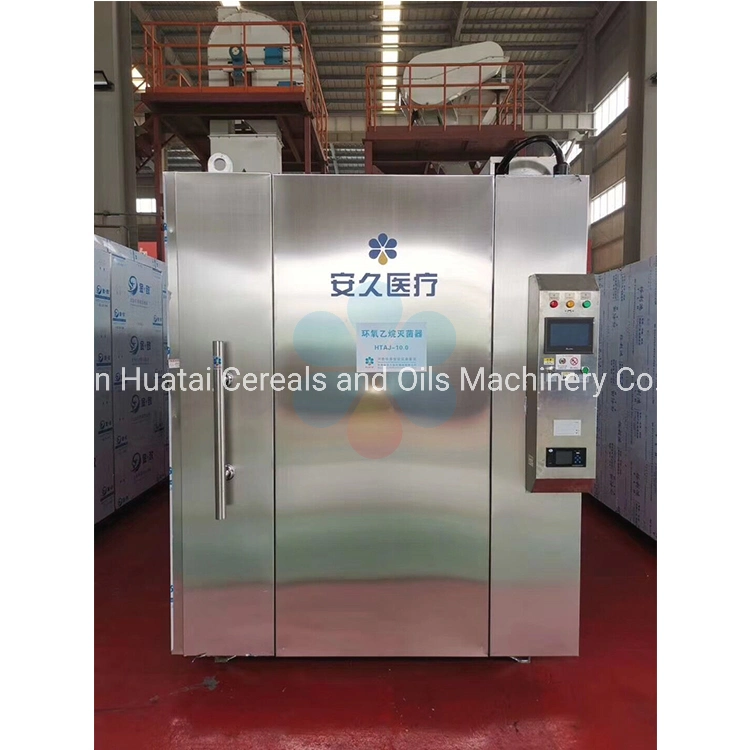

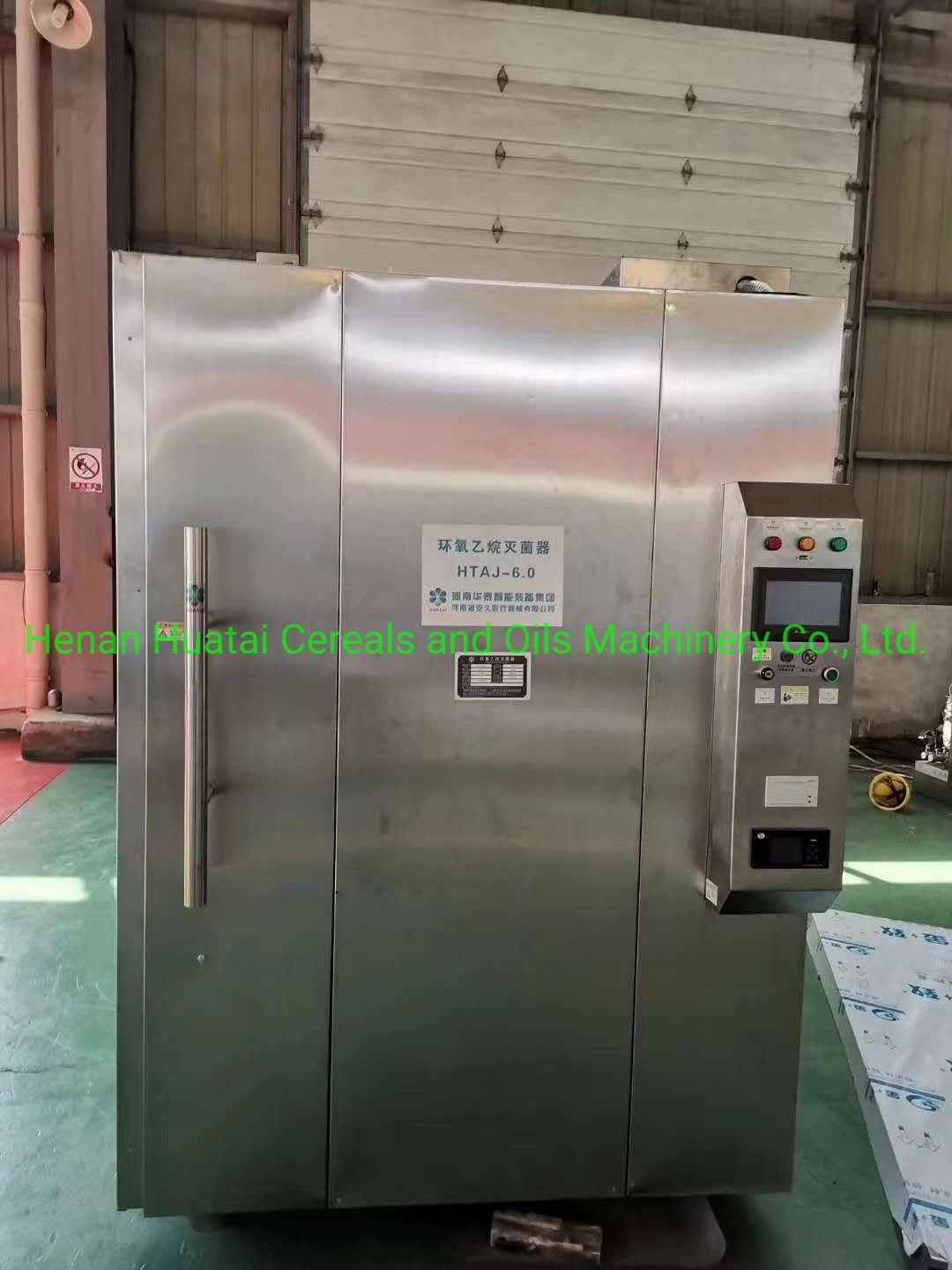

Ethylene Oxide Sterilizer
The Ethylene oxide sterilizer utilizes ethylene oxide gas for the sterilization of media used for damp heat sensitive items. This includes surgical precision medical equipment, optical instruments, electronic equipment, and various plastic products. It is designed to be non-corrosive to plastic, metal, and rubber materials.
As one of the most effective methods of gas sterilization, it offers broad-spectrum effectiveness and strong penetrability without damaging the environment or items. Equipped with reliable chemical and biological testing systems, it is essential low-temperature sterilization equipment for hospitals, operation rooms, and specialist clinics.

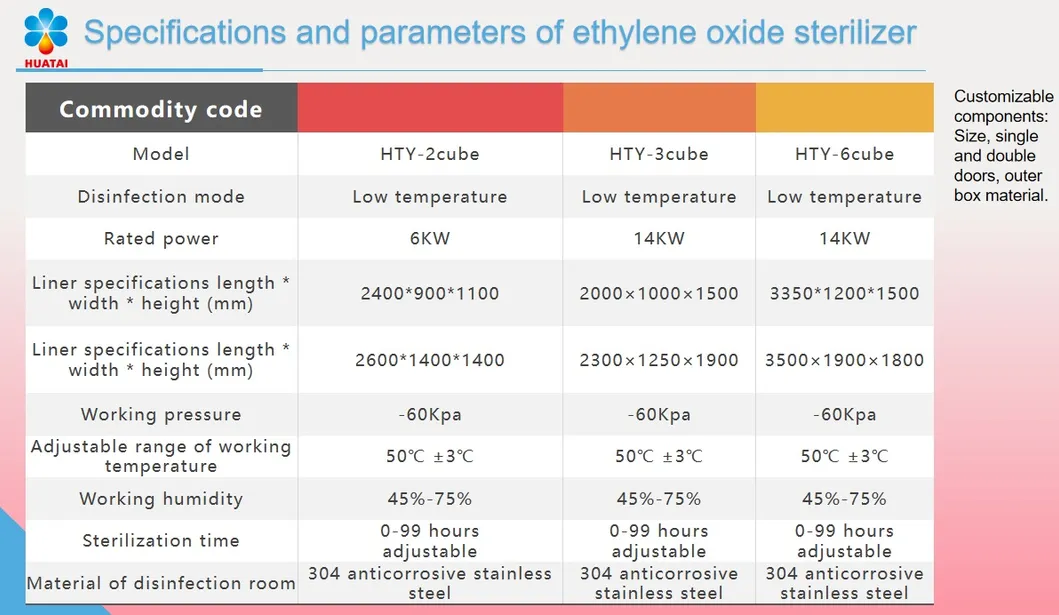

Product Parameters
| Model Number |
HTY-2cube |
Disinfection Mode |
Low temperature |
| Rated Power |
6KW |
Working Pressure |
-60Kpa |
| Inner Specs (L*W*H) |
2400*900*1100 mm |
Outer Specs (L*W*H) |
2600*1400*1400 mm |
| Working Temp Range |
50ºC ±3ºC |
Working Humidity |
45%-75% |
| Sterilization Time |
0-99 hours adjustable |
Chamber Material |
304 anticorrosive stainless steel |
Key Advantages
Simple Operation
One-key microcomputer control with a digital display for the entire process.
Print Records
Automatic printing of sterilization information for easy checking and archiving.
Advanced Filtration
Equipped with a system to filter germs and prevent secondary pollution.
Application Range
Our sterilizers are ideal for a wide range of products:
- Regional therapy (Pacemakers, artificial hearts)
- Endoscopy (Laryngoscopes, cystoscopes)
- Rubber products (Gloves, syringes, catheters)
- Medicine & Cosmetics
- Textiles (Cotton wool, blankets, gauze)
- Cultural relics (Paper currency, medical records)
- Instruments (Optical and electronic)
- Hygiene products (Sanitary napkins, tableware)

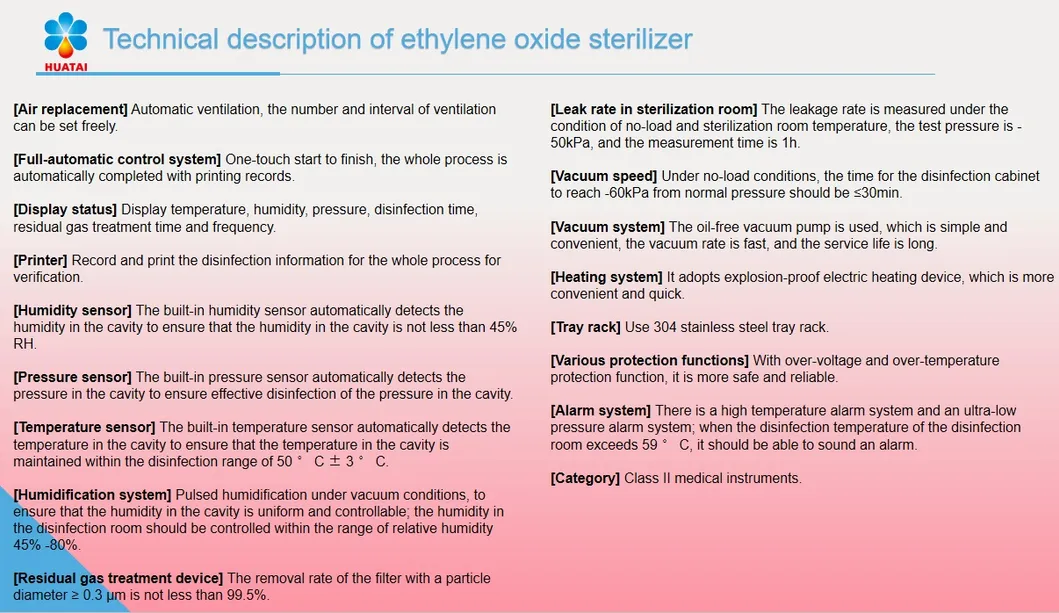

Technical Features
Automatic Ventilation: Free setting for air replacement intervals.
Multi-Sensor System: Precise monitoring of temperature, humidity, and pressure.
Pulsed Humidification: Ensures uniform humidity between 45% - 80% RH.
Fast Vacuum System: Oil-free pump reaching -60kPa in ≤30 minutes.
Explosion-proof Heating: Safe and quick heating technology.
Alarm System: Automatic alerts for ultra-high temperature or low pressure.
Frequently Asked Questions
1. What items are suitable for Ethylene Oxide sterilization?
EO sterilization is ideal for items sensitive to heat and moisture, such as precision optical instruments, electronics, plastic medical supplies, and rubber products.
2. Does the machine provide proof of sterilization?
Yes, the machine features a built-in printer that automatically records and prints detailed sterilization information for verification and archiving purposes.
3. How is the humidity controlled during the process?
The unit has a built-in humidity sensor and a pulsed humidification system that ensures the internal relative humidity stays within the effective range of 45%-80%.
4. Is the sterilization chamber durable?
Absolutely. The sterilization room is constructed from 304 anticorrosive stainless steel, ensuring long-term durability and resistance to chemicals.
5. What safety protection features are included?
The sterilizer includes over-voltage protection, over-temperature protection, and an alarm system that triggers if temperatures exceed 59°C or if there is ultra-low pressure.
6. How are residual gases handled?
The machine is equipped with a residual gas treatment device and a filtration system that filters out 99.5% of particles ≥ 0.3 μm to prevent environmental pollution.
