Far Infrared Heating Systems for Baking

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

Far Infrared Heating Systems for Baking

Structure

Horizontal Type

Product Name

Ceramic Infrared Tube Heater

Diameters

10mm/12mm/14mm/17mm/20mm

Material

Silicon Carbide

Wavelength

3-50 μ

Energy Saving

30%-50%

Reflection

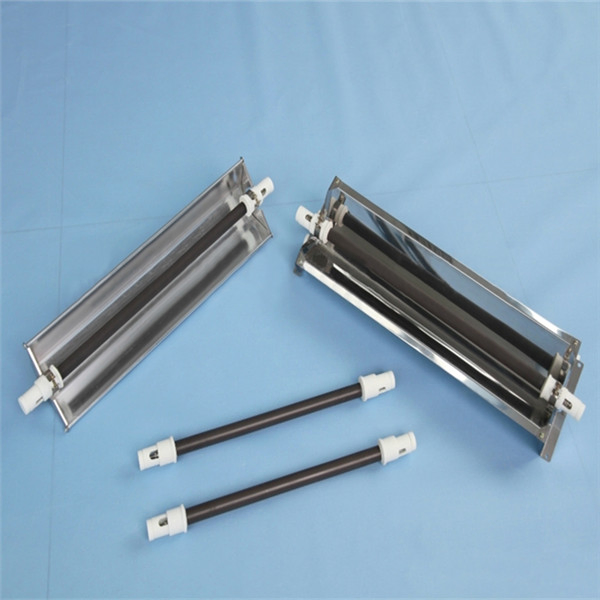

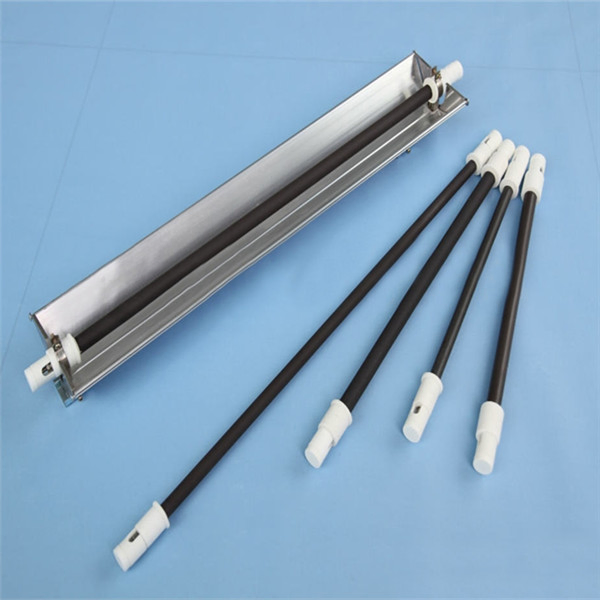

Aluminum Case

Power

300W/500W Customized

MOQ

1 Piece

Application

Sauna Room Heating and Drying

Paint Use

Automobile Bodywork or Whitebody

Transport

Wooden Case

Specification

CE ROHS

HS Code

85168000

Capacity

1000PCS /Month

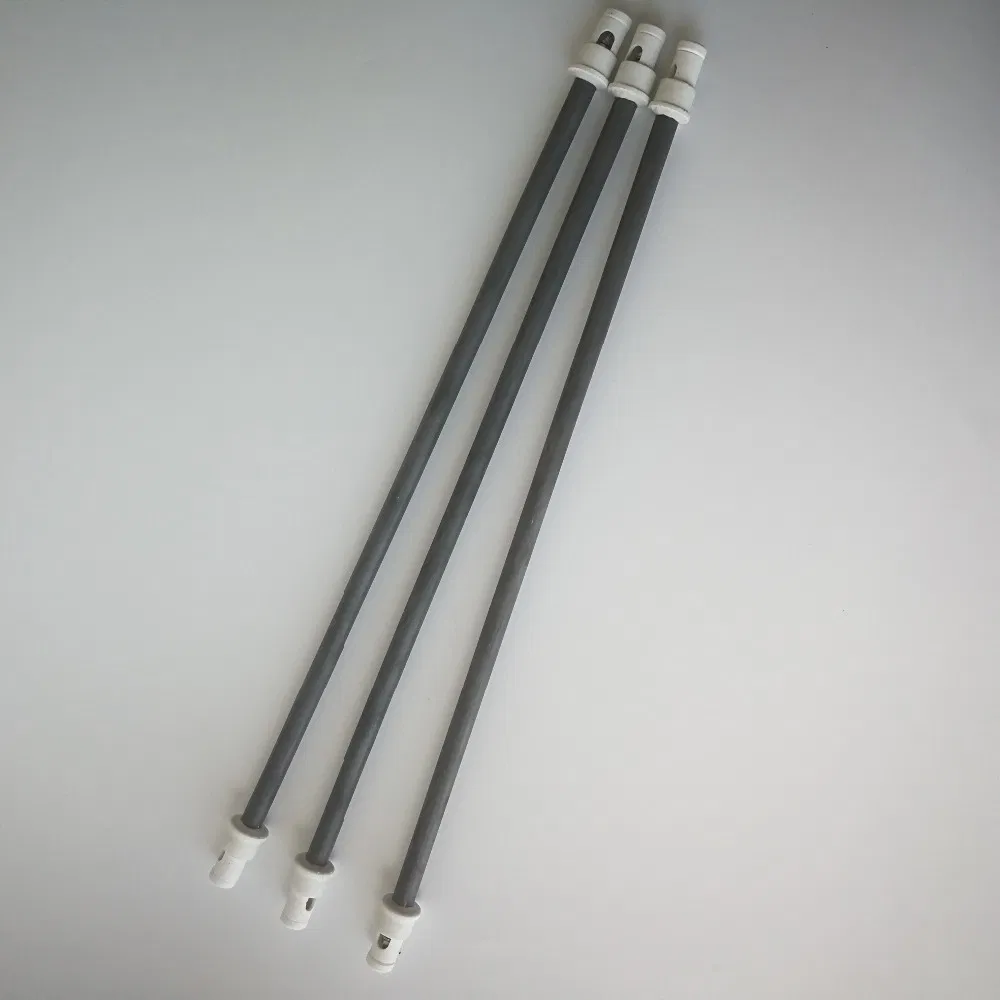

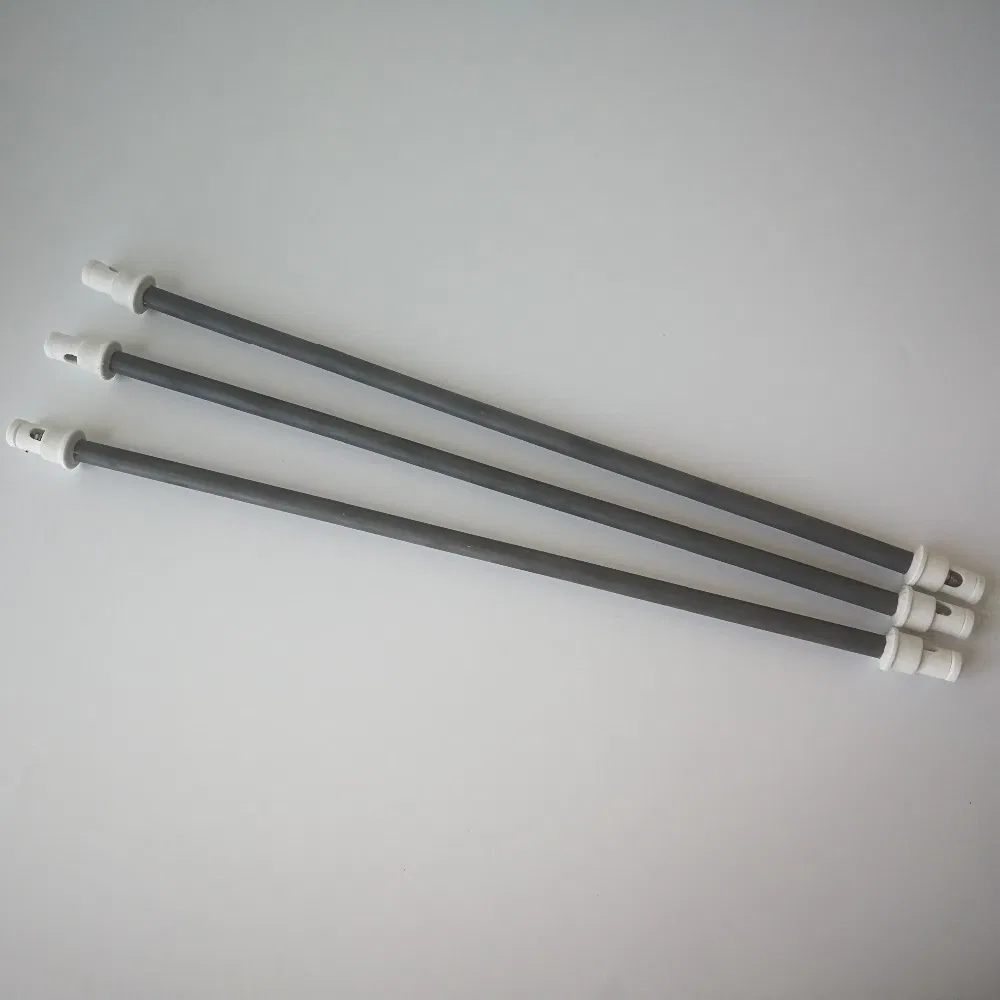

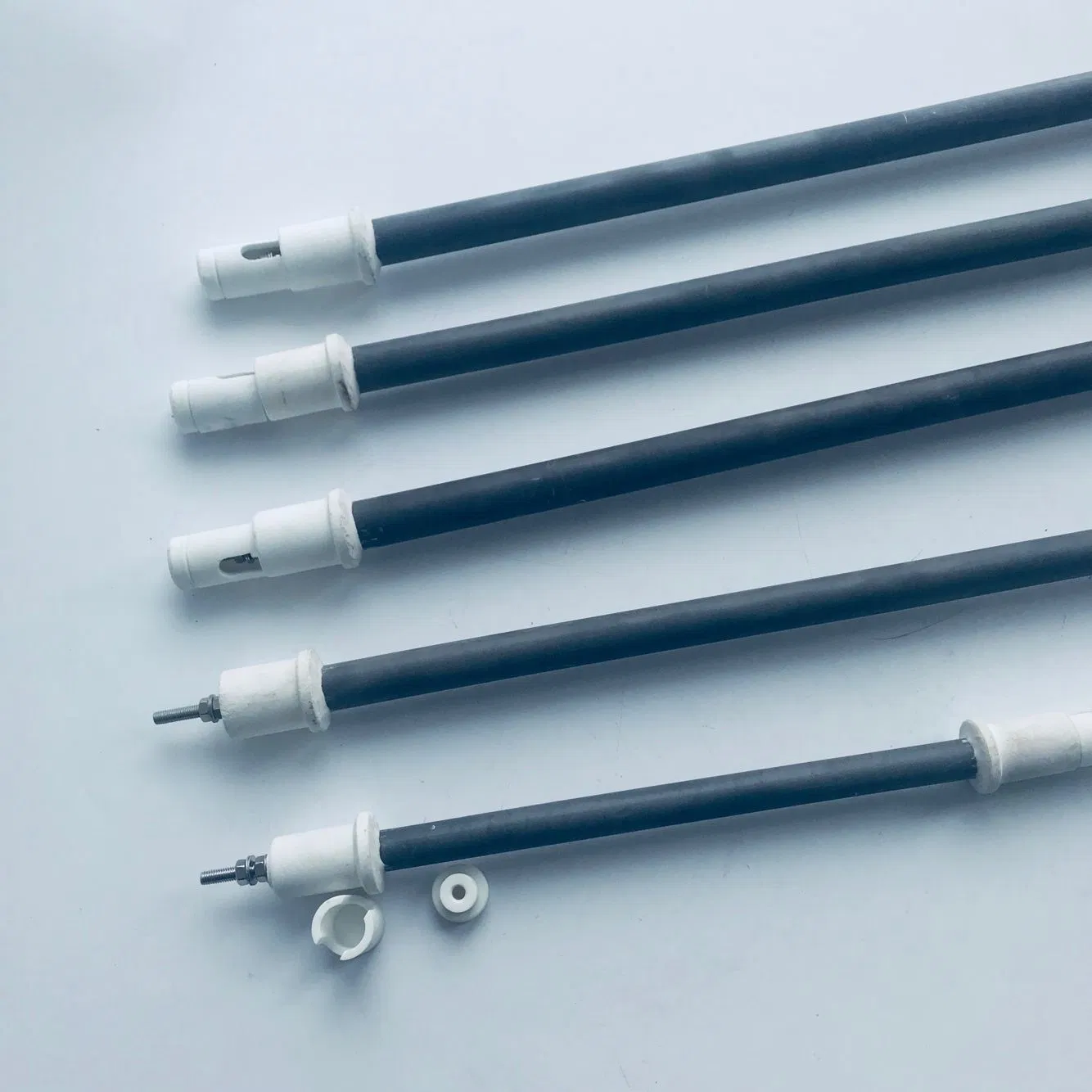

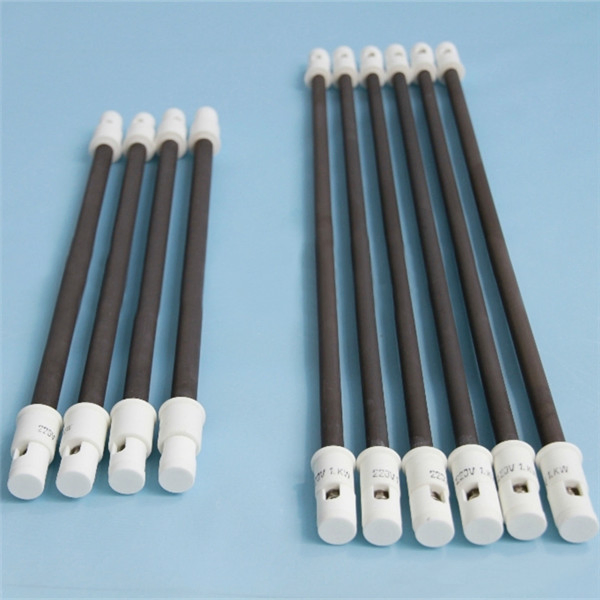

Sauna Room Ceramic Infrared Tube Heater

⚙️

Technical Parameters

	Tube Material	Carbon silicone ceramic
	Wavelength	3 μ ~ 50 μ
	Diameter	10mm, 12mm, 14mm, 16mm, 20mm and other can be customized
	Wattage	20 ~ 1500W
	Voltages Available	380V, 240V, 220V, 110V, 36V, 24V or 12V
	Max Operating Temp	700ºC
	Heating Elements	Nickel chrome wire
	Diameter Tolerance	±1 mm
	Resistance Tolerance	+10%, -5%

🌟

Product Features

✔

Embedding type Sauna Infrared Heaters apply high-quality glaze and ceramics with excellent heat and shock properties, sintered with nichrome wire.

✔

Heat loss on the non-radiation surface is minimized for maximum efficiency.

✔

Significant energy efficiency and environmental protection benefits.

✔

High durability: The radiated element can withstand being submerged in cold water after power interruption forty times without damage.

When inquiring, please provide the following:

⚡ Voltage: 380V, 240V, 220V, 110V, etc. (Customizable)
🔥 Wattage: 80W, 100W, 200W, 250W, etc. (Customizable)
📏 Diameter: 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, etc.
↔️ Length: Customized length requirements.
📦 Quantity: Minimum order quantity is 5-10pcs.

🚀

Heater Applications

Category	Application Details
Drying	Low-temperature drying of Leather, Wood, Precious Metals, Plywood, Fiber, Printing, Paint, Ceramic Glaze, Medicine, Paper, Food, Fertilizer, and Seafood.
Baking Varnish	Baking varnish for Car bodies, Motorcycles, Bicycles, Metal Furniture, Sewing Machines, and Refrigerators.
Heating	Forming, hardening, processing, and preheating of Plastics, PS, and ABS Fiber.
Sterilization	Drugs, Food, Packing Containers, Dining Utensils, and Medical Apparatus/Instruments.
Preservation	Dehumidifying and heat preservation for Offices, Auditoriums, Hospitals, Gymnasiums, Indoor Pools, and Farms.
Food Processing	Brewing, fermentation of Bread, toasting of Biscuits, and processing of Sweets.

📏

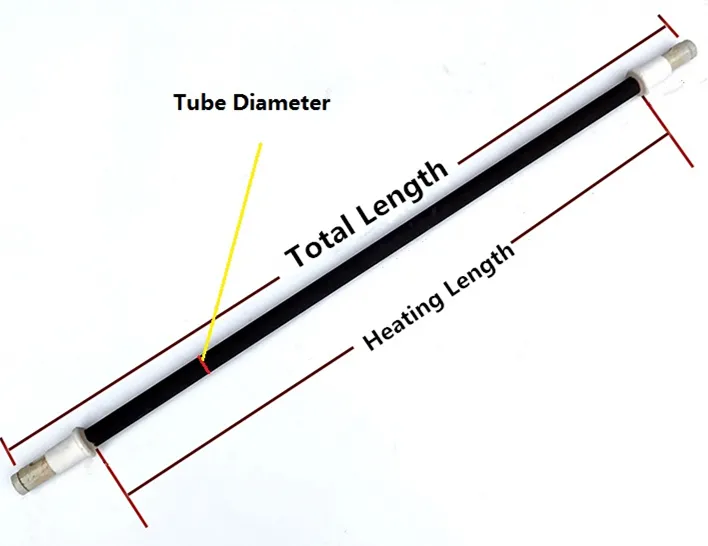

Reference Sizes

Tube Dia (mm)	Heating Length (mm)	Power (W)	Voltage (V)
12	200mm	200W	220V
12	300mm	300W	220V
14	400mm	400W	220V
14	500mm	500W	220V
14	600mm	600W	220V
14	700mm	700W	220V
16	800mm	800W	220V
16	900mm	900W	220V
16	1000mm	1000W	220V
18	1200mm	1200W	220V
18	1500mm	1500W	220V
18	1600mm	1600W	220V
20	2000mm	2000W	220V

* For other custom sizes, please inquire for technical support.

❓

Frequently Asked Questions

What is the main material of the infrared tube heater?

The heater is primarily constructed from high-quality Carbon Silicone Ceramic with a nickel-chrome wire heating element for superior thermal stability.

How much energy can I save using this system?

This Far Infrared Heating System is highly efficient, offering energy savings of between 30% and 50% compared to traditional heating methods.

What is the wavelength range and its benefit?

The wavelength range is 3μ to 50μ. This far-infrared range is ideal for deep penetration during drying and baking processes, ensuring uniform heat distribution.

Can the heater withstand rapid temperature changes?

Yes, the ceramic elements are designed for high thermal shock resistance and can be submerged in cold water after heating without damaging the unit.

Are customized voltages and sizes available?

Absolutely. We support a wide range of voltages from 12V to 380V and various wattages and tube diameters to fit your specific equipment needs.

What is the typical lifespan/operating temperature?

The heater can operate at a maximum temperature of 700ºC, providing a durable solution for heavy industrial drying and baking applications.
