Water-Cooled Boiling Fluidized Bed: Custom Solutions with Expert Installation Guidance

Customization:	Available
Type:	Chemical Hardening Sand
Casting Method:	Thermal Gravity Casting

Send Inquiry

Product Description

📋 Basic Information

Model NO.

S89

Sand Core Type

Clay Sand Core

Application

Machinery Parts

Machining

M/C Machining

Material

Steel

Surface Treatment

Spray-Paint

Surface Roughness

Ra0.05

Standard

AISI

Certification

CE, ISO 9001:2000

Customization

Customized According to Demand

Service

Turnkey Service

After-Sales

Engineer on-Site Guidance

⚙️ Product Parameters

Model	Efficiency (T/H)	Cooling Temp Diff	Water Circ (T/H)	Water Temp	Wind Pressure
S8905	5	≥280	20	<20-25	≥12000
S8910	10	≥280	20	<20-25	≥12000
S8920	20	≥280	30	<20-25	≥12000
S8930	30	≥280	45	<20-25	≥12000
S8940	40	≥280	60	<20-25	≥12000

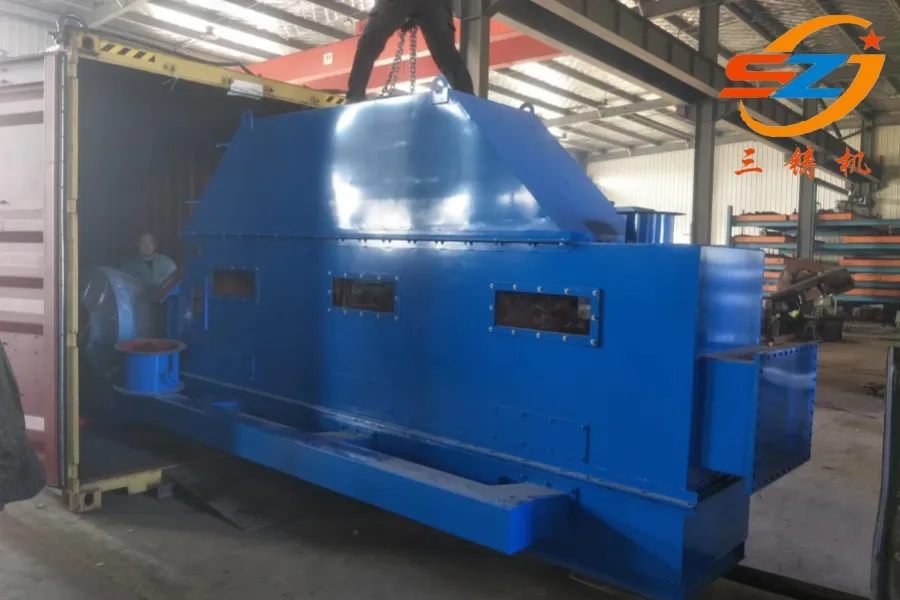

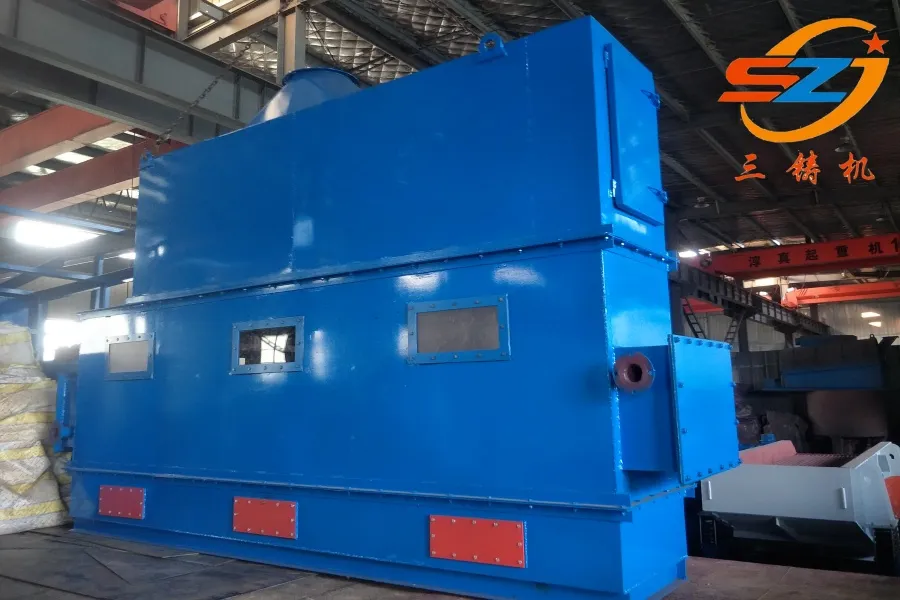

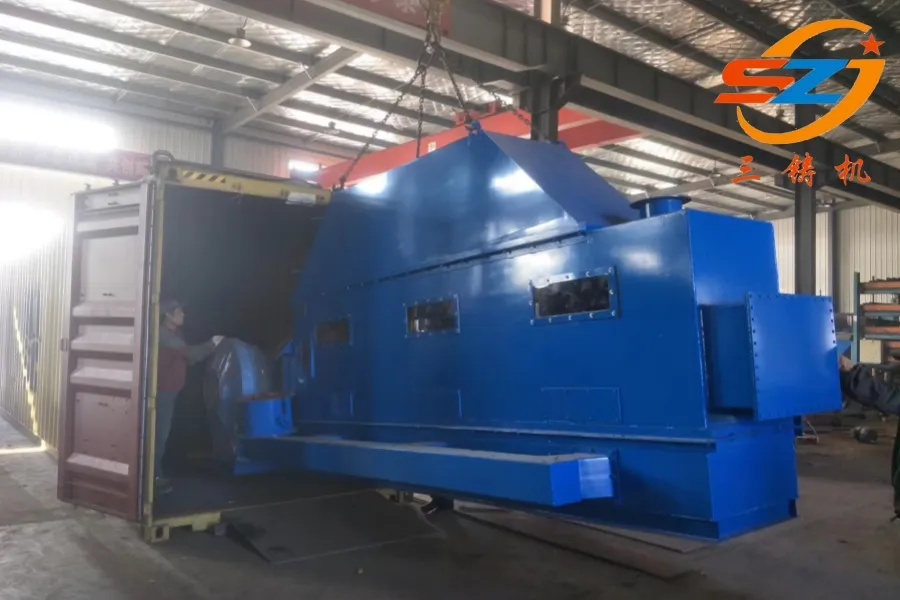

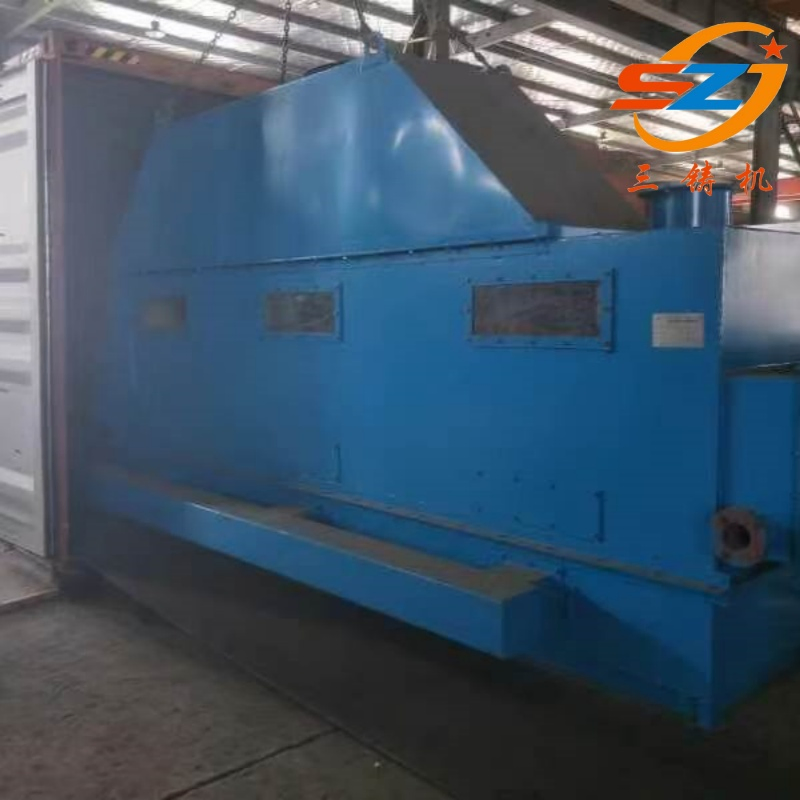

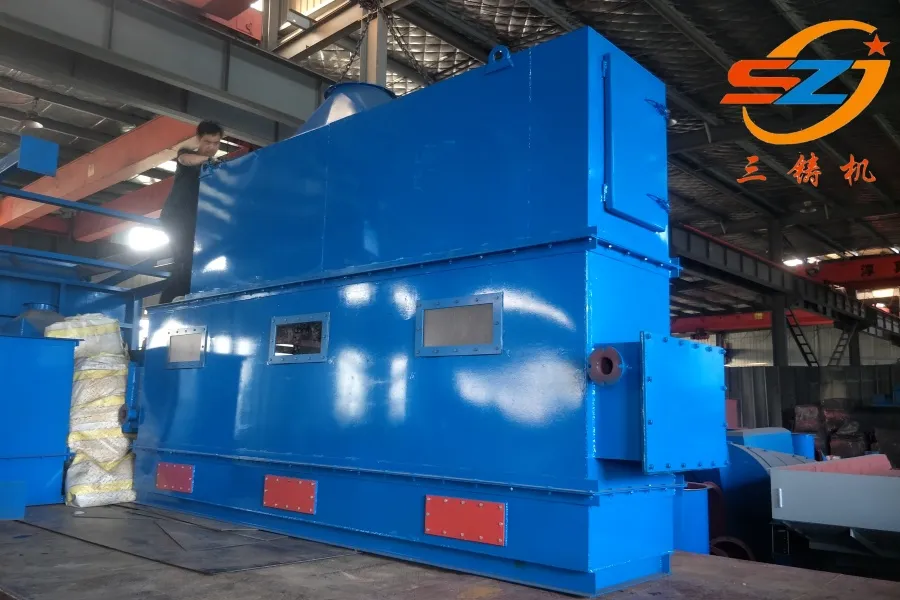

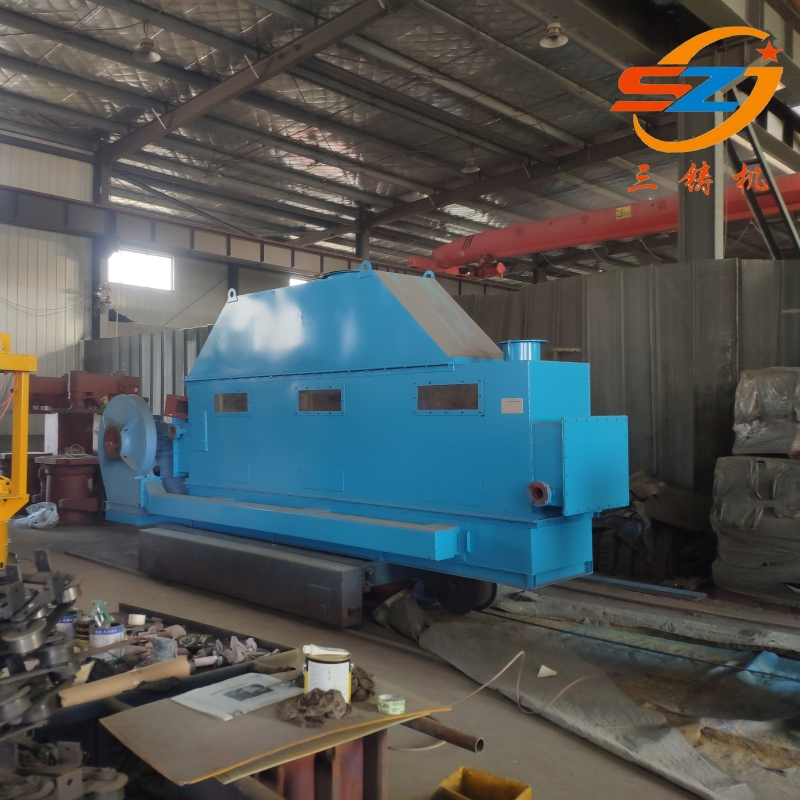

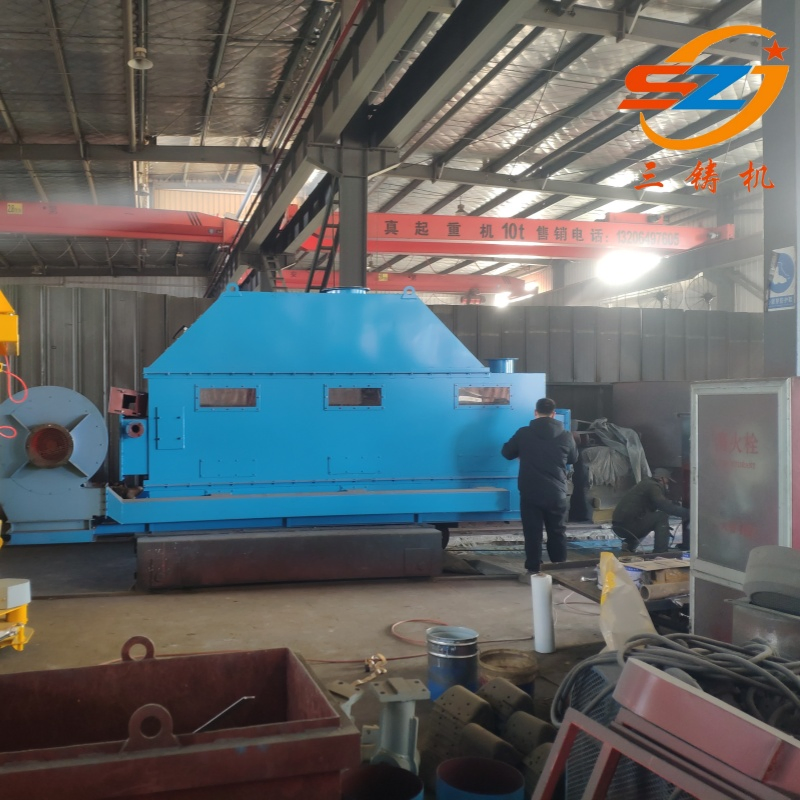

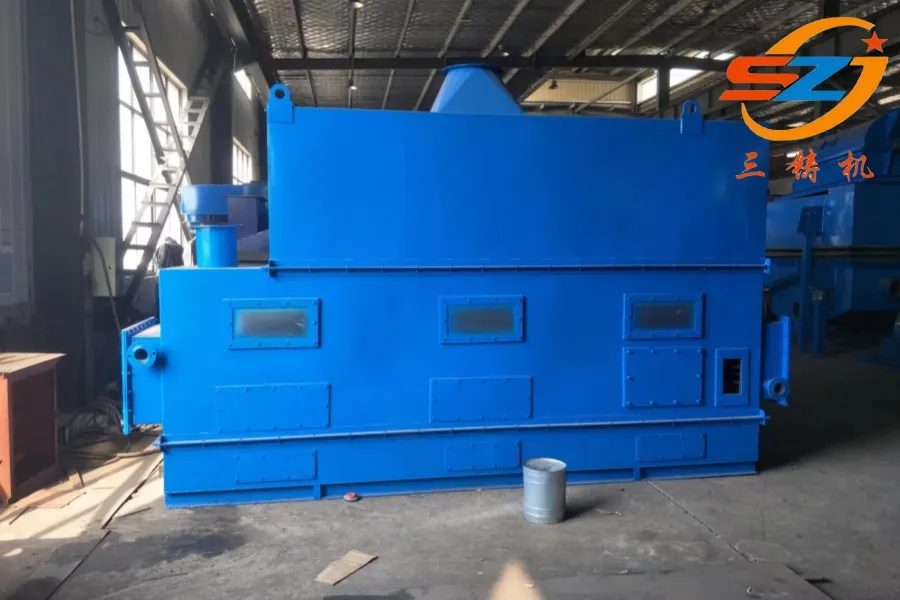

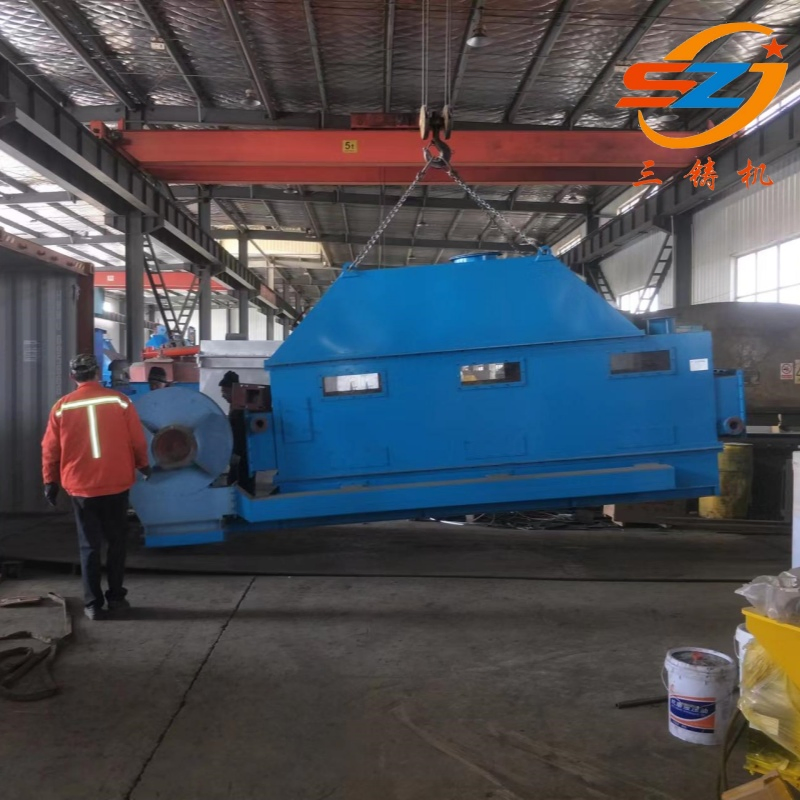

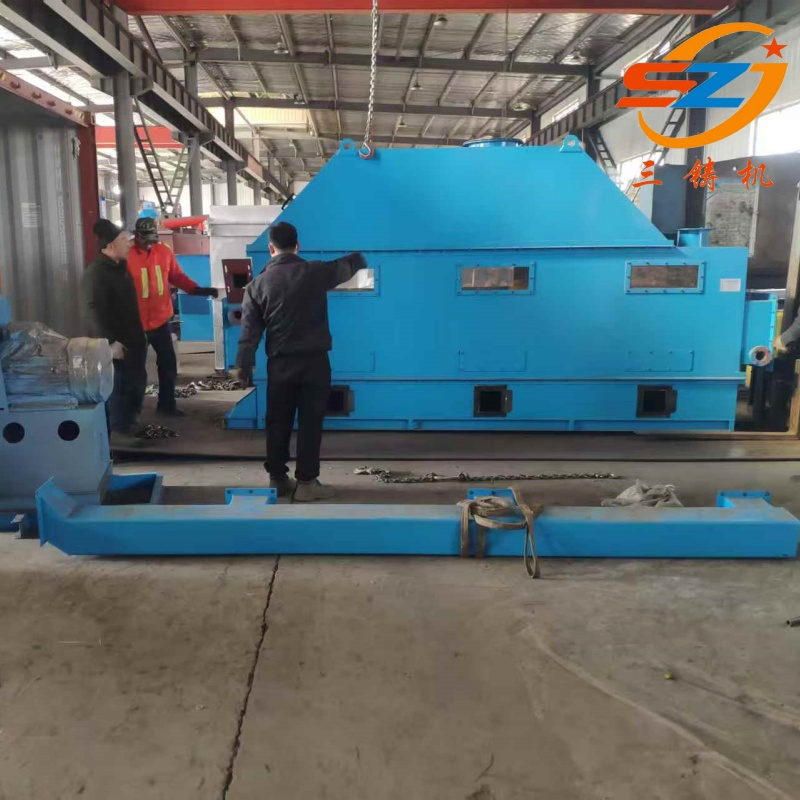

🖼️ Product Overview

📝 Product Description

Discover the pinnacle of sand cooling technology with our state-of-the-art Customizable Water-Cooled Boiling Cooling Bed. Featuring a sophisticated labyrinth of cooling water pipes, this system ensures rapid heat exchange for investment and disappearing mold casting. It provides unprecedented precision and excellence in casting outputs by managing structural complexities and energy demands effectively.

Multi-layer Water-cooled Pipe Array: Stainless steel cooling pipes (Φ25×2mm) with 16W/(m·K) thermal conductivity, offering 60% better efficiency than carbon steel.
Precise Sand Adaptation: Adjustable grid (Φ3-Φ8mm) ensures uniformity compliance (>98%) within ±3ºC for AFS 50-120 particles.
Energy Savings: Up to 35% energy savings compared to traditional vibrating beds, reducing water usage by 80%.
Durable Design: Built with Incoloy 825 nickel-based alloy, resistant up to 1200ºC with a lifespan exceeding 8 years.
Environmental Compliance: Closed box system with leakage rates under 3mg/m³ and 95% wastewater reuse rate.

✅ Certifications

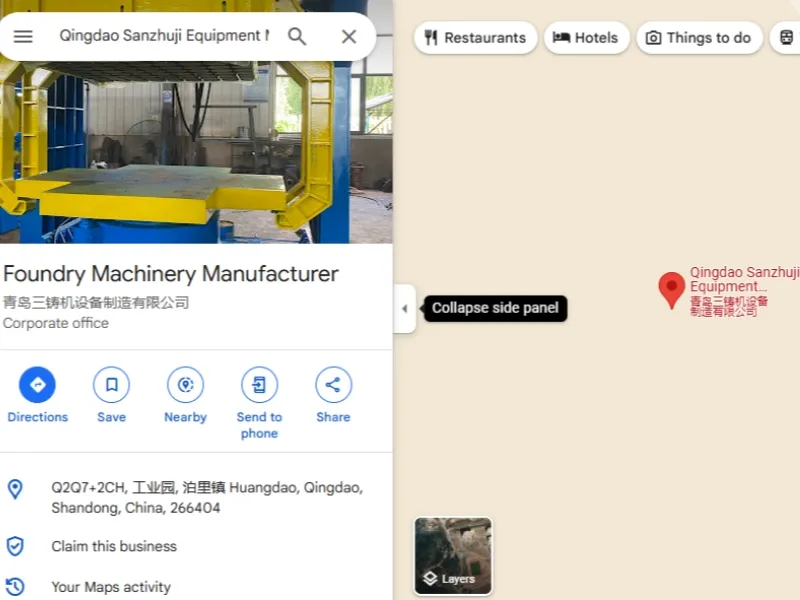

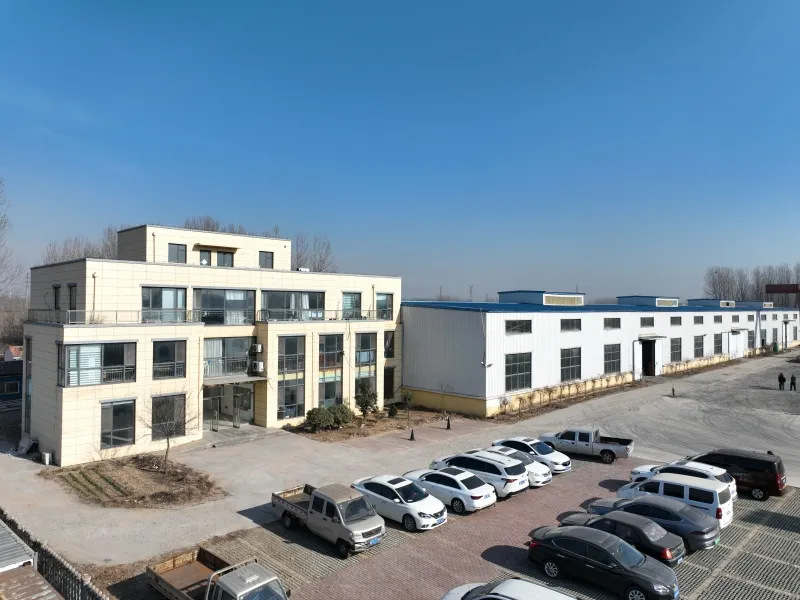

🏭 Factory Overview

With over 14 years of expertise, our facility specializes in advanced sand casting machinery, including green sand, furan resin, and lost foam casting production lines. We are committed to manufacturing excellence and innovation in every project.

❓ Frequently Asked Questions

1. What are the primary applications of this water-cooled cooling bed? It is specifically designed for high-precision casting systems, including investment casting and lost foam casting, ensuring stable sand temperatures and high efficiency.

2. How does this system compare to traditional cooling methods in terms of energy? Our cooling bed offers up to 35% energy savings compared to traditional vibrating cooling beds and reduces water usage by 80% compared to pneumatic systems.

3. What is the expected lifespan of the cooling tubes? The tubes are constructed from Incoloy 825 nickel-based alloy with a plasma-sprayed Al2O3 coating, providing a service life of over 8 years.

4. Can the cooling bed be customized for specific sand sizes? Yes, the fluidized bed includes an adjustable grid (Φ3-Φ8mm) to accommodate different sand particle sizes, such as AFS 50-120.

5. What kind of after-sales support is provided? We offer turnkey services, including engineer on-site guidance for installation and commissioning to ensure optimal performance.

6. How does the system handle dust and environmental concerns? It features a closed box system with a low leakage rate (under 3mg/m³) and a high-efficiency wet dust collector to ensure air purity and compliance.
