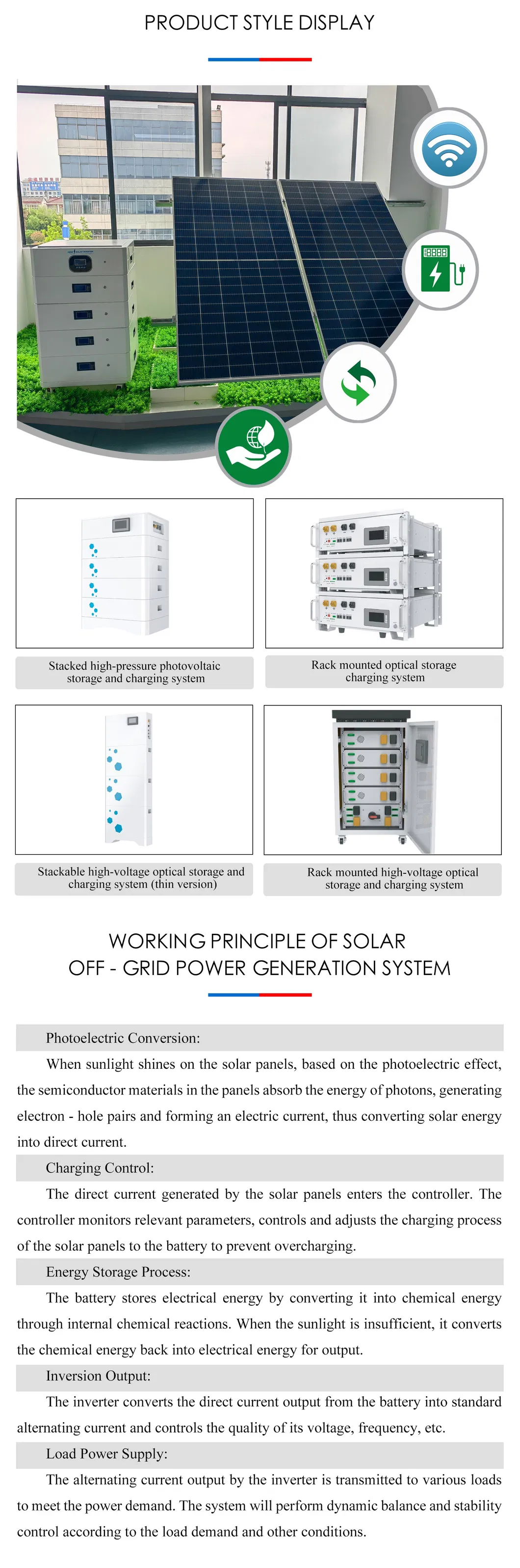

When sunlight irradiates solar panels, semiconductor materials absorb photon energy, generating an electric current. This process converts solar energy into direct current (DC).
The DC power enters a controller that monitors voltage and current, adjusting the charging process to the battery to ensure safety and prevent overcharging.
The battery stores electrical energy as chemical energy. When sunlight is insufficient, it converts chemical energy back into electrical energy for output.
An inverter transforms the DC power from the battery into standard alternating current (AC), regulating voltage and frequency to meet requirements.
The AC power is transmitted to electrical loads. The system dynamically balances the power supply according to real-time demands.

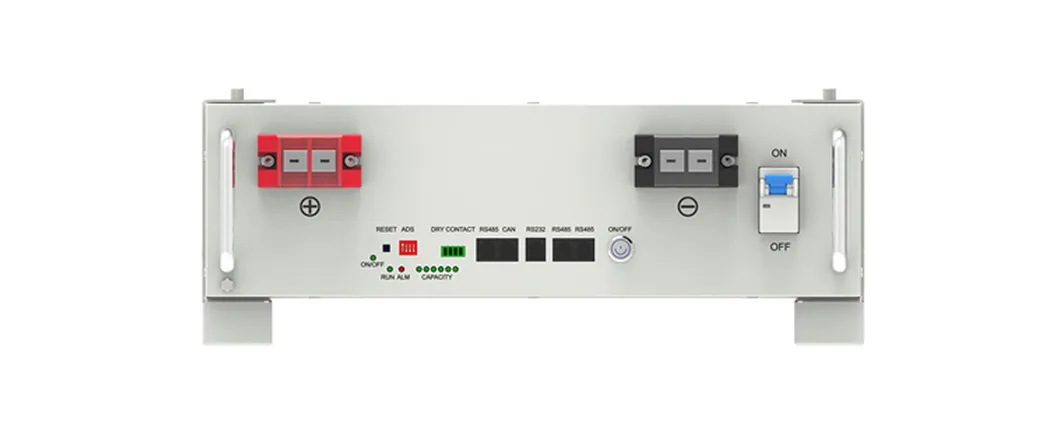

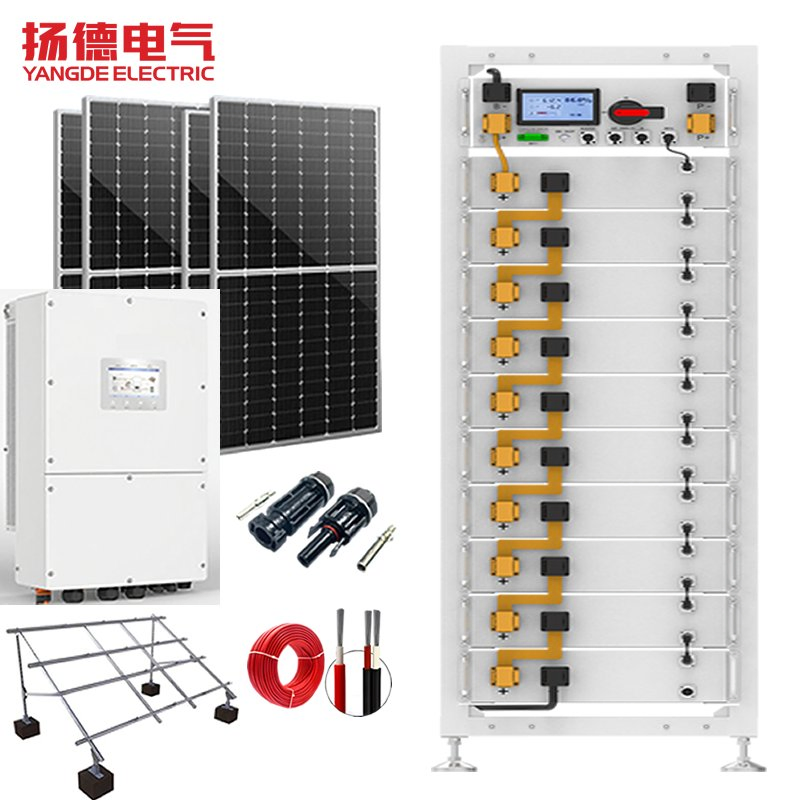

| MODEL | OMS-51K (512V100AH) |
|---|---|
| Nominal Voltage | 512V |
| Nominal Capacity | 100AH |
| Dimension Module (mm) | 440*442*133*10 |
| Dimension RACK (mm) | 560*510*1780 |
| Weight (kg) | 520 |
| Nominal Capacity (KWH) | 51.2 |
| Discharge Cut-Off Voltage (V) | 440 |
| Charge Cut-Off Voltage (V) | 568 |
| Recommend Charge/Discharge Current (A) | 60 |
| Max. Charge/Discharge Current (A) | 100 |
| Communication | RS485/RS232/CAN |
| Working Temperature | 0ºC~50ºC Charge / -10ºC~50ºC Discharge |
| Design Life | 15 years+ |
| Cycle Life | >6000 times (0.5C/0.5C-80% DOD) |
| Series Function | Support 16 units in Series |
| Certification | CE/IEC/UL/UN38.3/MSDS/ROHS |
PV Module (625W Mono N-Type)
Size: 2382*1134*30mm | Weight: 28.2KG
Lithium Battery (LFP)
51.2V 100AH | 6000 Cycles | Design Life >10 Years

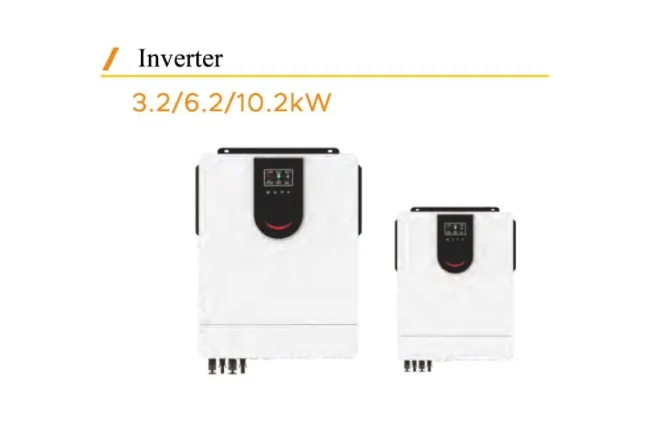

Hybrid Storage Inverter
10KW/48V | IP65 Protection | Parallel support 1-6 units

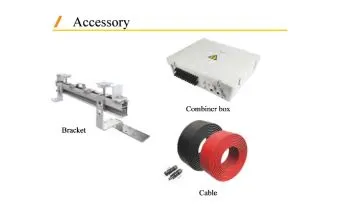

Auxiliary Materials
20KW Distribution Box | MC4 Connectors | Grounding
