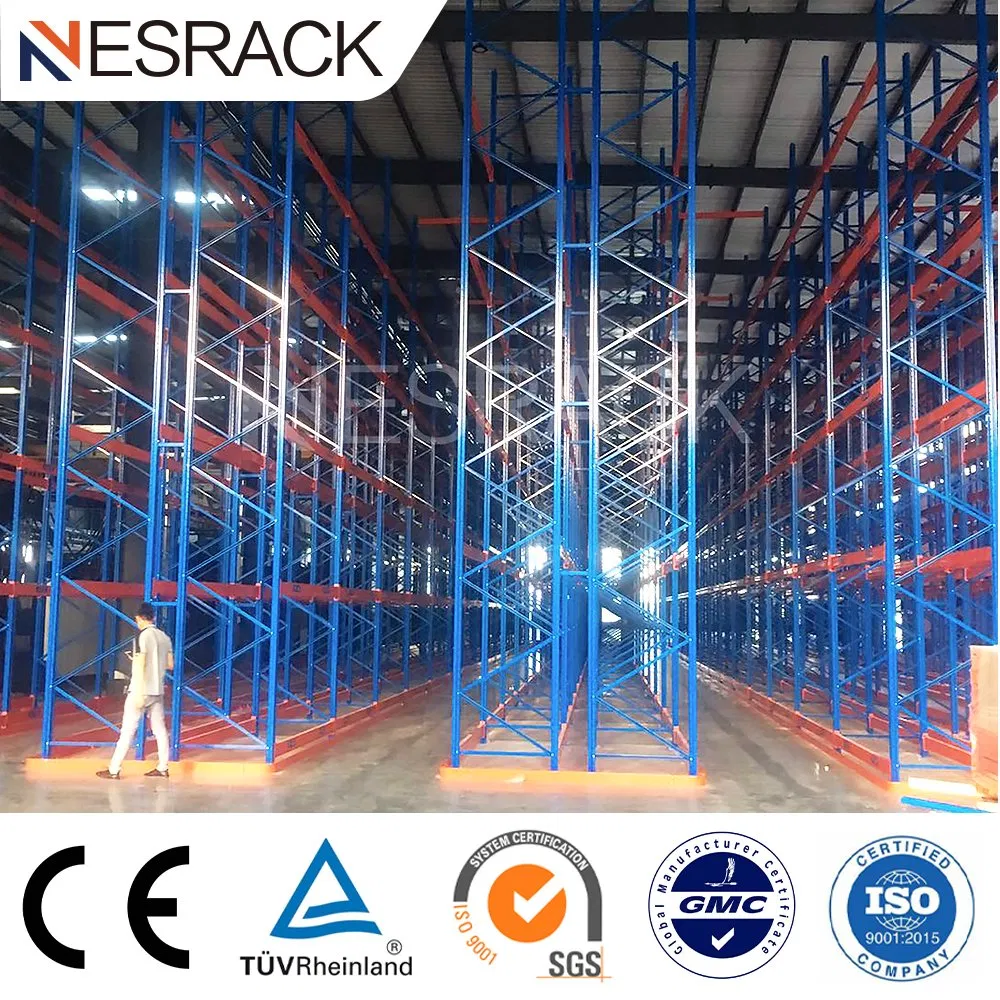

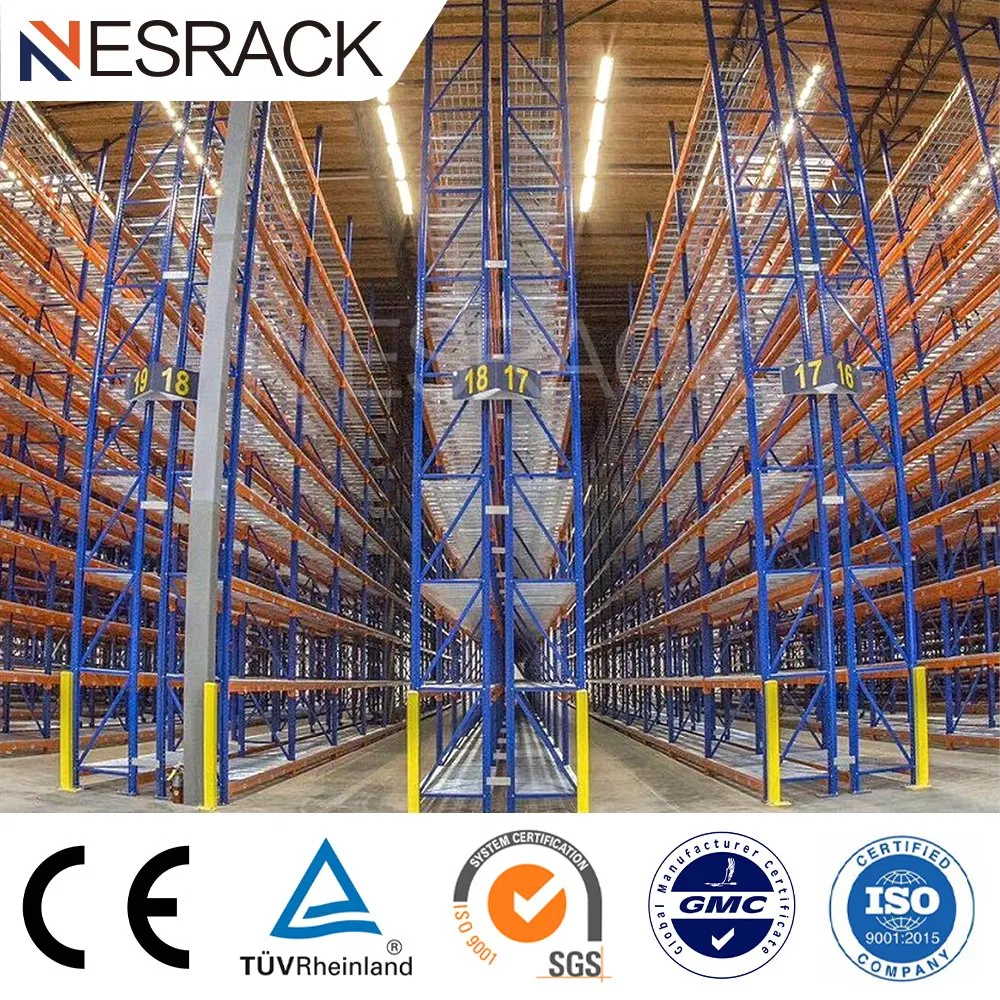

Hot Sale Adjustable Multi-Level Painted Steel Warehouse Heavy Duty Vna Racking System

1 / 5

Hot Sale Adjustable Multi-Level Painted Steel Warehouse Heavy Duty Vna Racking System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

nv010

Usage

Tool Rack, Supermarket, Industrial, Warehouse Rack

Material

Steel

Structure

Rack

Type

Pallet Racking

Mobility

Adjustable

Height

2~11m

Weight

200kg~10000kg

Surface Treatment

Electrostatic Powder Coating

Loading Capacity

0.2 Ton ~ 4 Ton/Layer

Certification

ISO9001/CE

Delivery Time

15 Working Days

📦

Packaging & Delivery

Package Size

270.00cm * 100.00cm * 675.00cm

Gross Weight

300.000kg

Packing Type

Standard Simple Export Packing

⚙️

Technical Specifications

Racks type	Industrial warehouse Pallet racks /double deep racks/ VNA racks
Reference size	Length	1900 / 2300 / 2500 / 2700mm (Customized accepted)
	Width	800 / 900 / 1000 / 1200 mm (Customized accepted)
	Height	1800 to 11550mm various options available

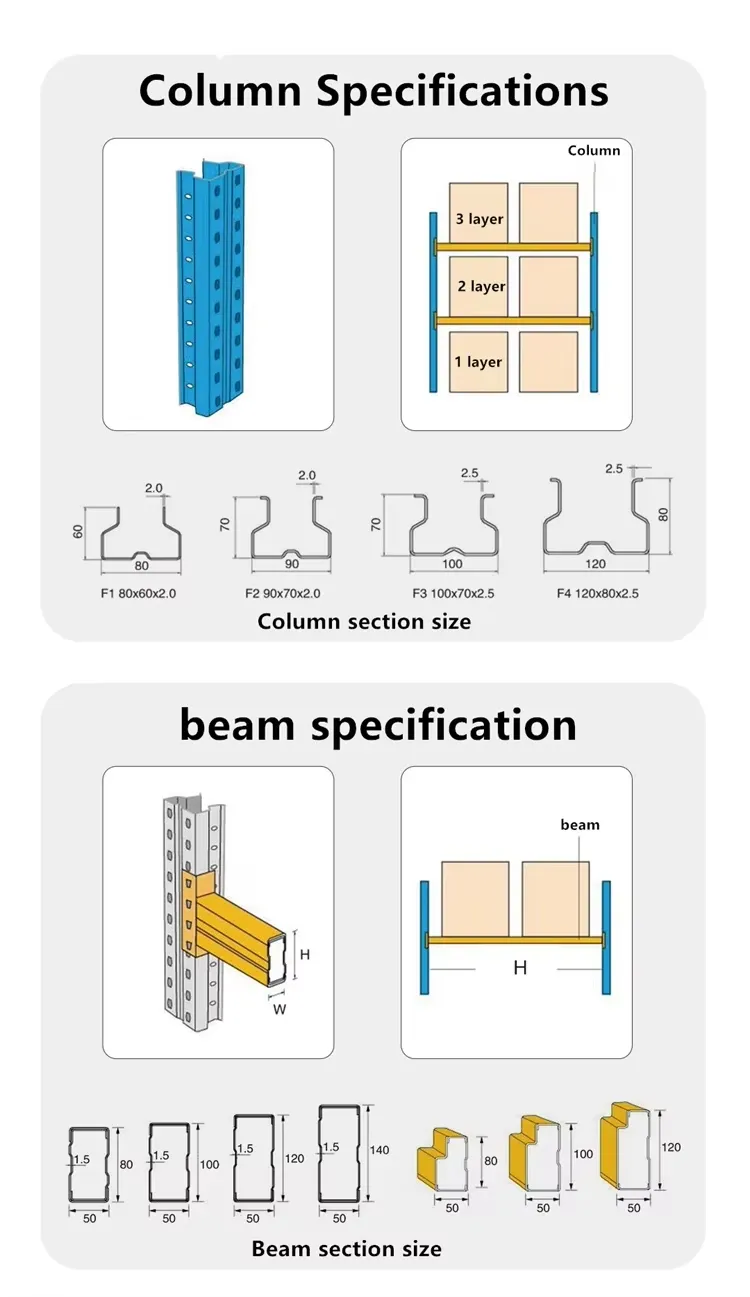

Material reference	Upright	80x60, 90x70, 100x70, 120x95mm, thickness: 1.8-2.5mm
Material reference	Beam	80x50, 100x50, 120x50, 140x50, 160x50mm, thickness 1.5-2.0mm
Loading capacity	300~5000kg/layer
Color	Blue, Orange, 7035 Gray, Yellow (Customized acceptable)

🏗️

Product Description

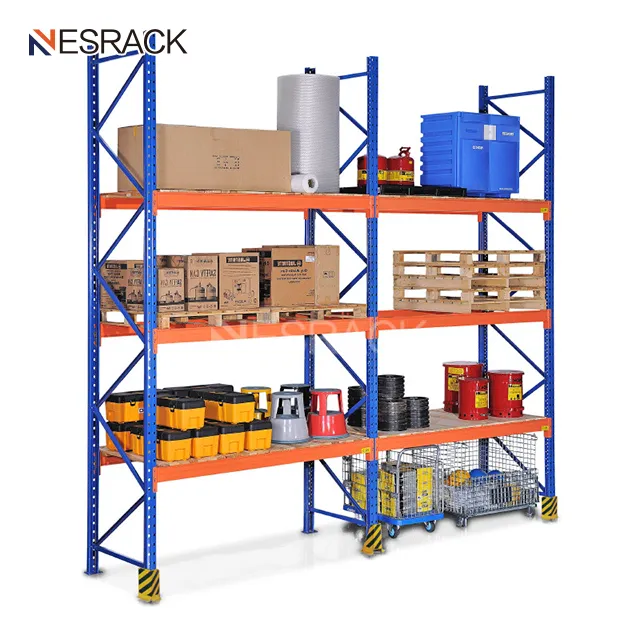

Warehouse Storage Boltless Rack Heavy Duty Pallet Racking System

Pallet racking systems provide a direct access to all pallets, and is the most economical choice in terms of cost. It is composed of upright frames and beams. It is designed for optimizing storage of goods of all sizes and weights. Versatile for any application and conditions. Easy to install and dismantle.

Key Features & Advantages

Easy installation: Reasonable structure designed for quick assembly.

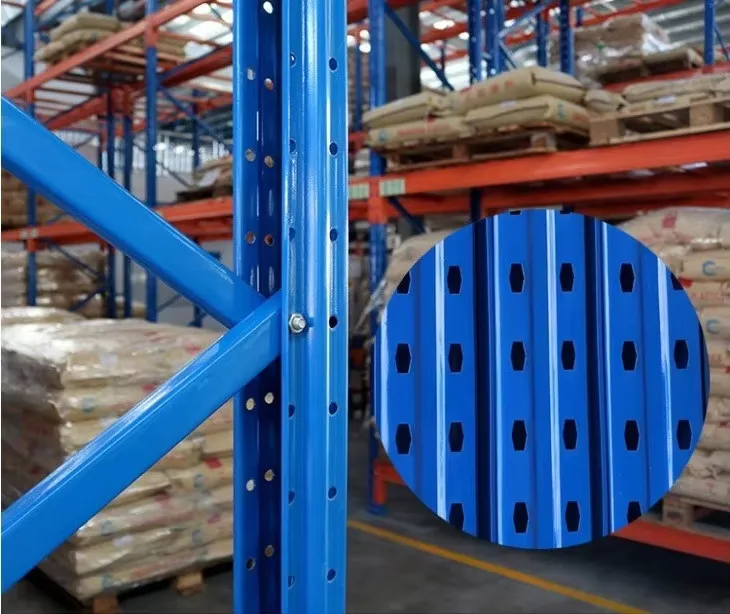

High-precision Design: Diamond-shaped hole design, plug-in structure, adjustable height.

Safety Locking: Secure columns and beams to prevent falling due to improper operation.

Enhanced Capacity: High shelf load adaptability for more types of pallets.

🧩

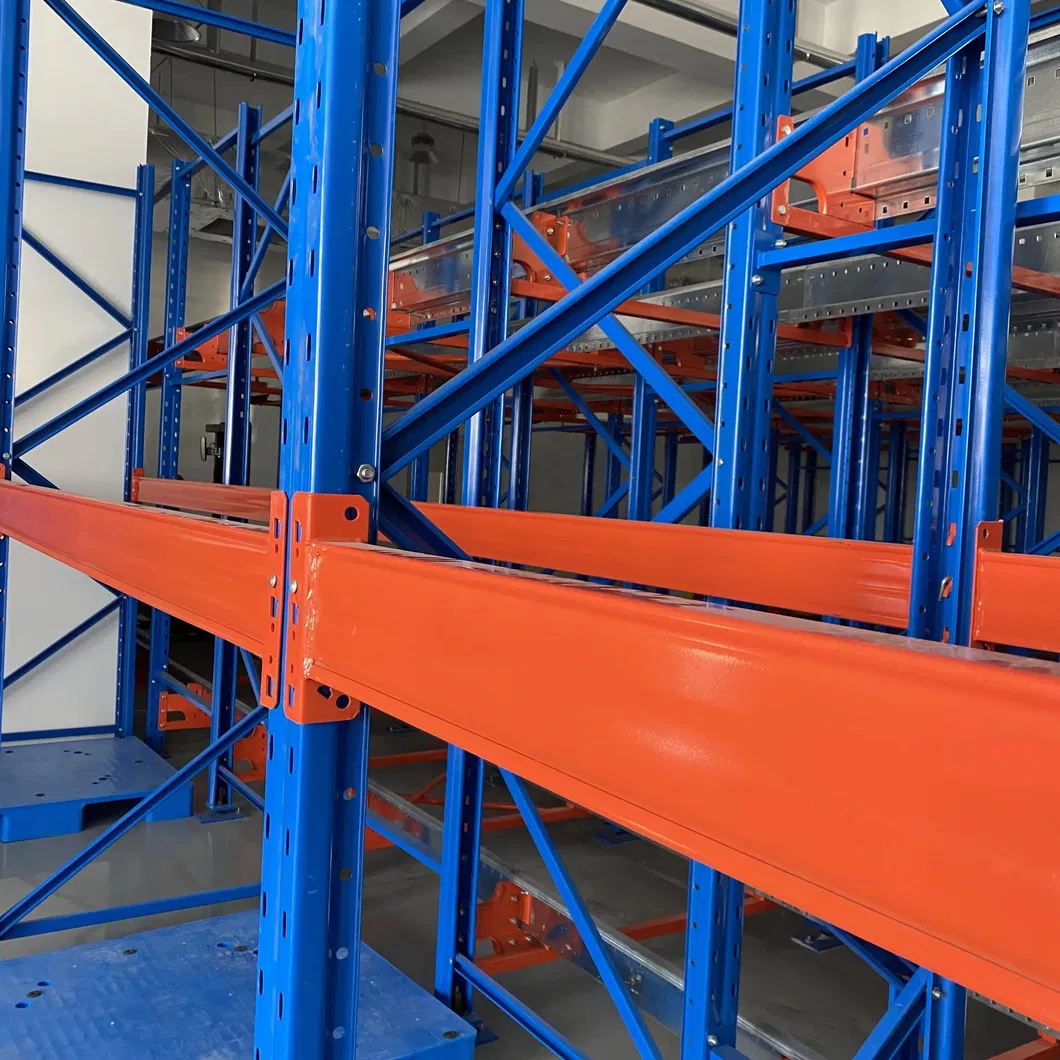

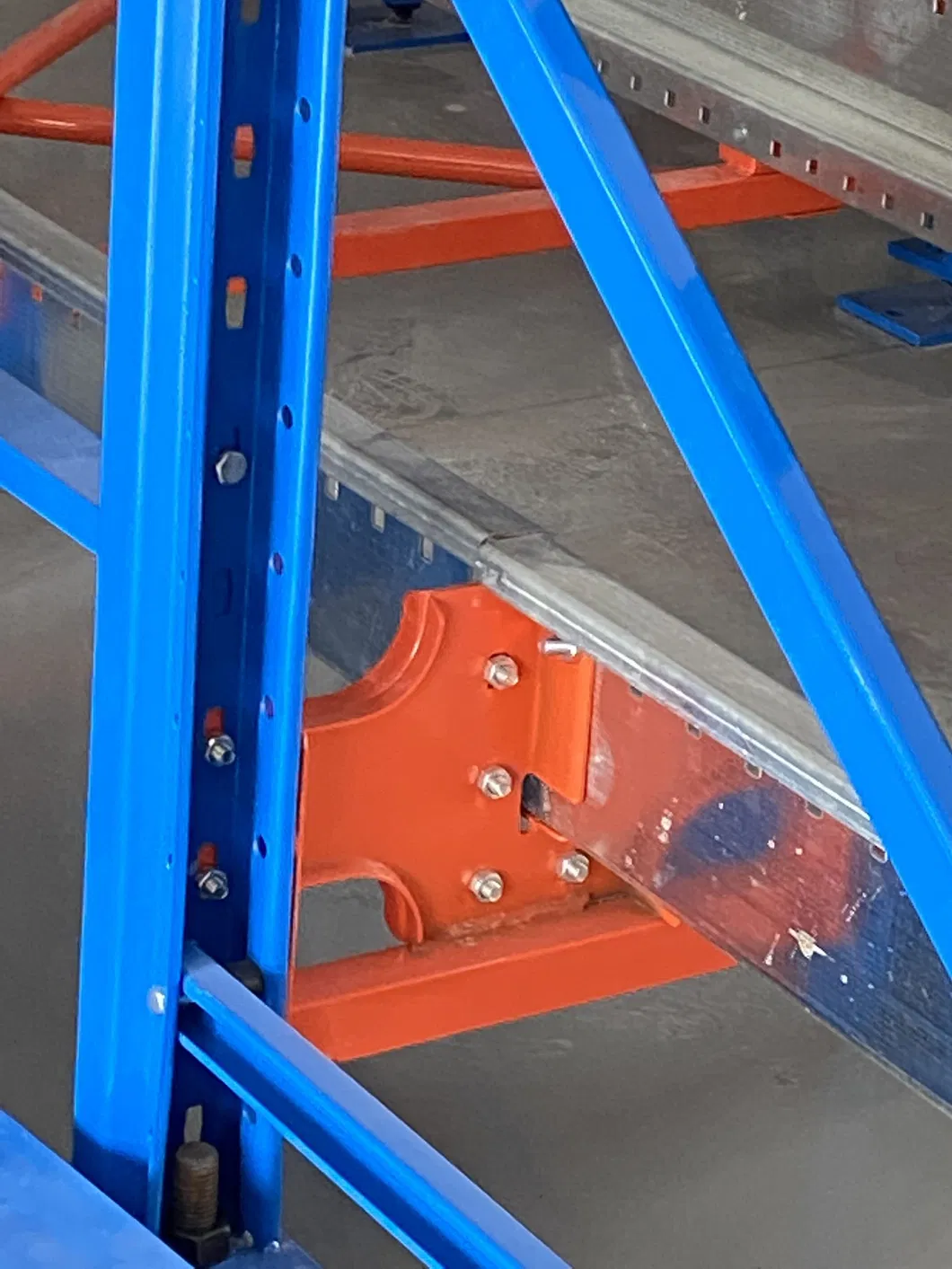

Main Components

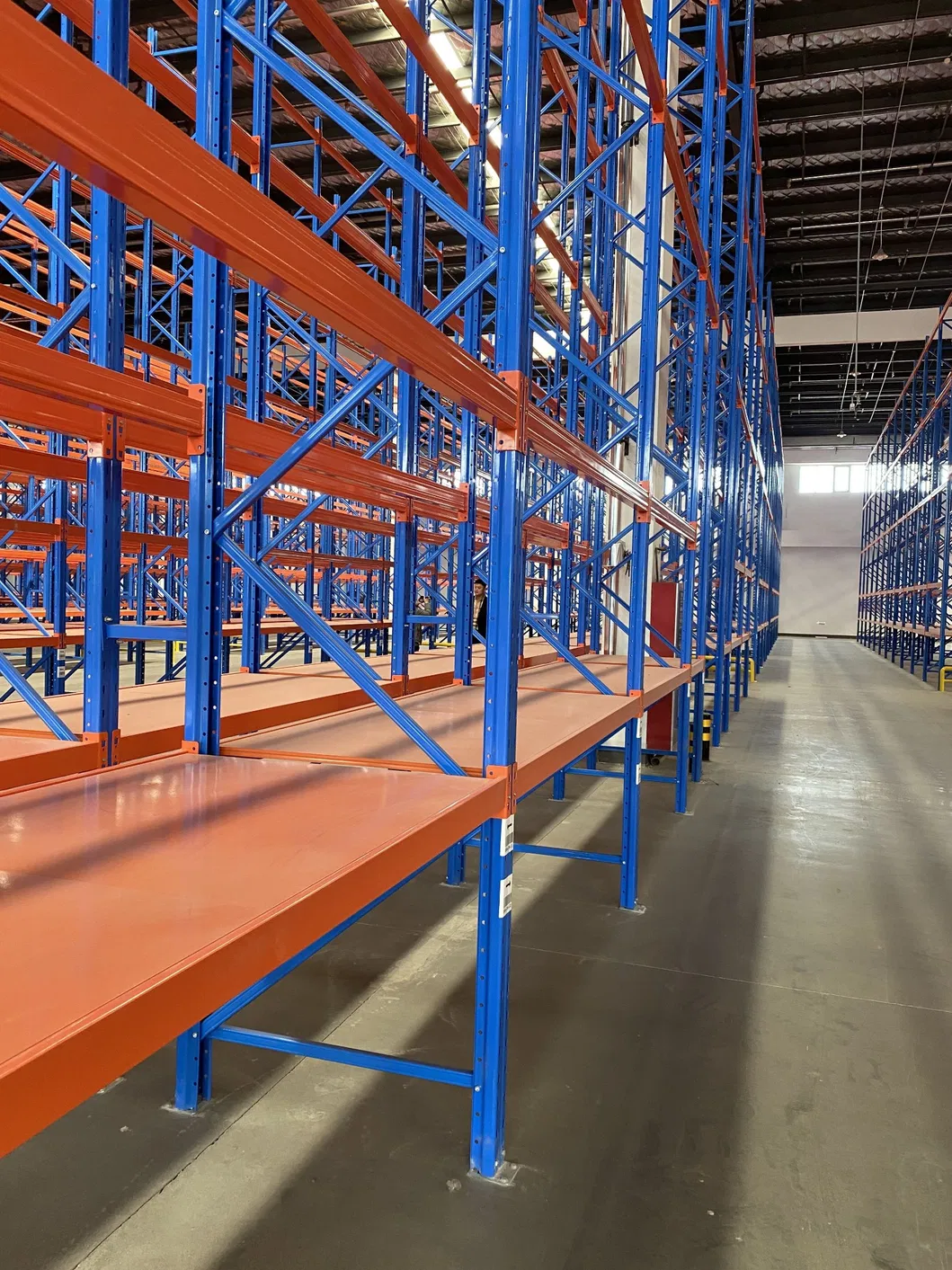

The frame of European 75mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates and screws. The longest beam can be 4.5m, and the max loading capacity can reach 4000kg per level.

🚢

Packaging & Shipping

❓

Frequently Asked Questions

Why choose our racking solutions?

We provide professional design teams, adequate production capacity, and products that are ISO and CE certified, complying with AS4084, RMI, and FEM standards.

What materials are used in the products?

We primarily use high-quality Q235 and Q345 grade steel for maximum durability and strength.

What is the standard packaging?

All products are packed using standard export packaging. Components are secured with steel belts and covered with protective film.

What is the typical Minimum Order Quantity (MOQ)?

The standard MOQ is usually one 20ft container, though this can vary depending on the specific dimensions of the products.

What is the estimated delivery time?

Delivery typically takes 3 to 4 weeks after the receipt of the deposit.

What payment terms are accepted?

We accept various payment methods including TT (Telegraphic Transfer) or L/C (Letter of Credit) at sight.
