China Supplier Industrial Stacking Racks Heavy Duty Type Structural Pallet Rack System

Technical Specifications

Usage	Beverage, Supermarket, Food, Industrial, Warehouse Rack
Material	Steel Q235, SS400
Structure	Shelf / Multi-Level Racking
Mobility	Rotary
Height	Up to 25,000 mm
Loading Capacity	Customized up to 5,000 Kg UDL/level
Closed	Semi-closed
Development	New Type
Serviceability	Common Use
Product Name	Automatic Storage & Retrieval System (ASRS)
Transport Package	Wooden Packing
HS Code	73089000

Product Description

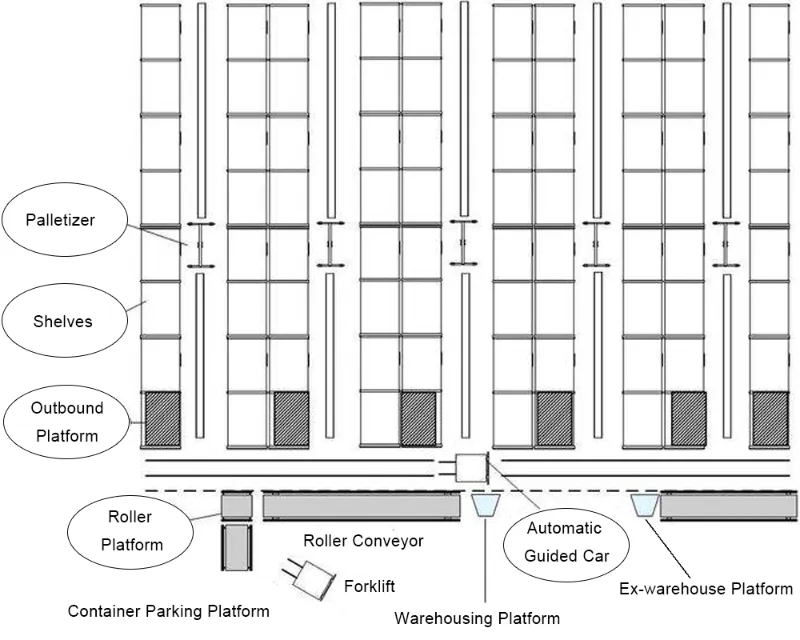

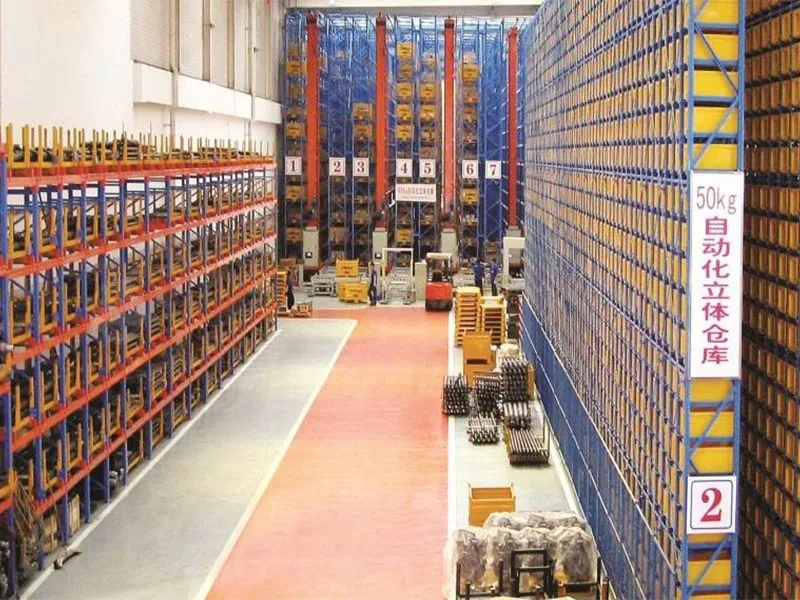

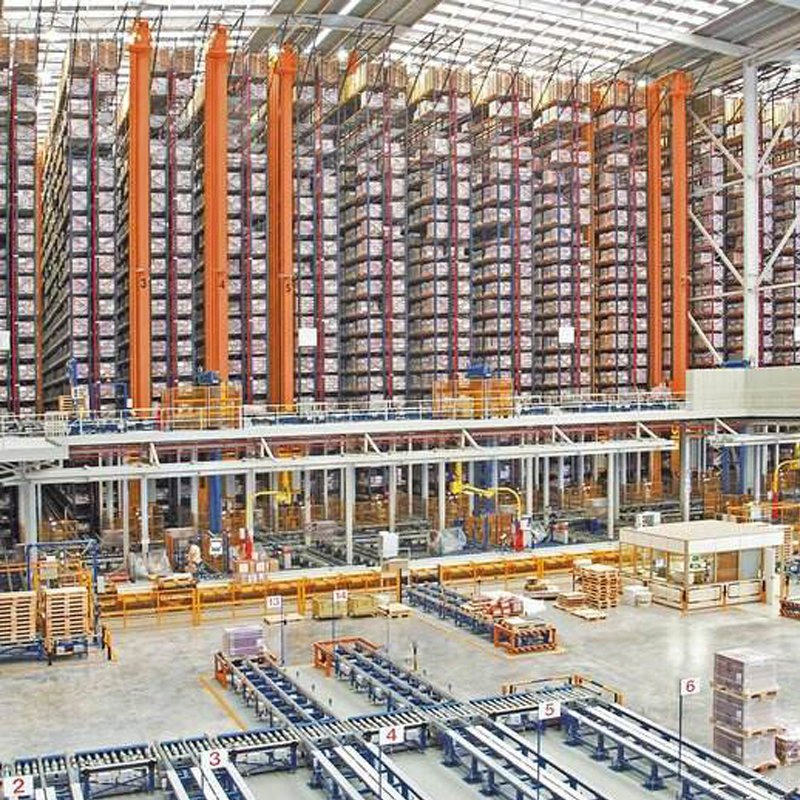

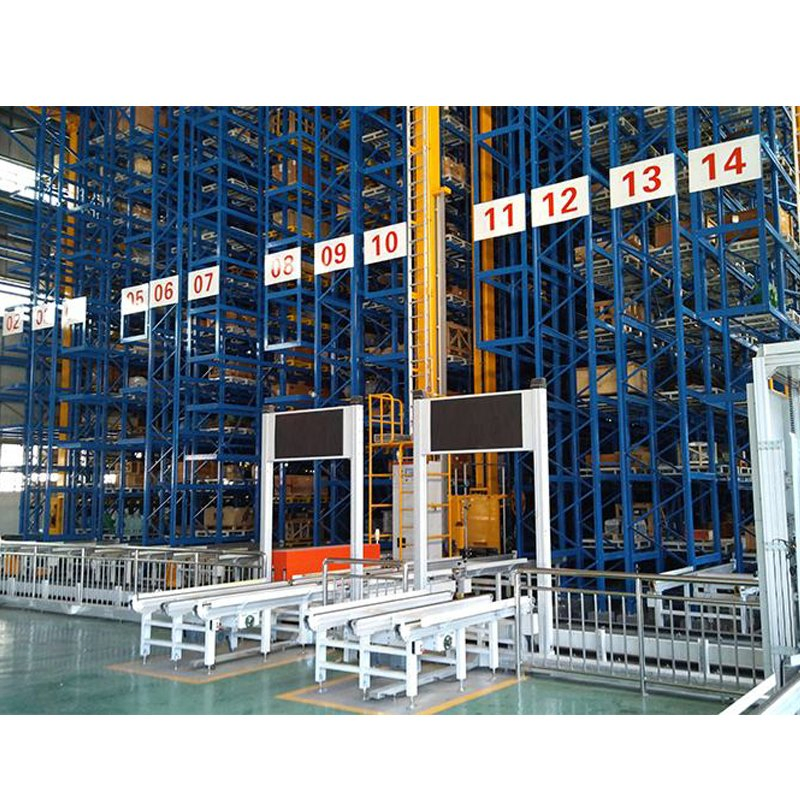

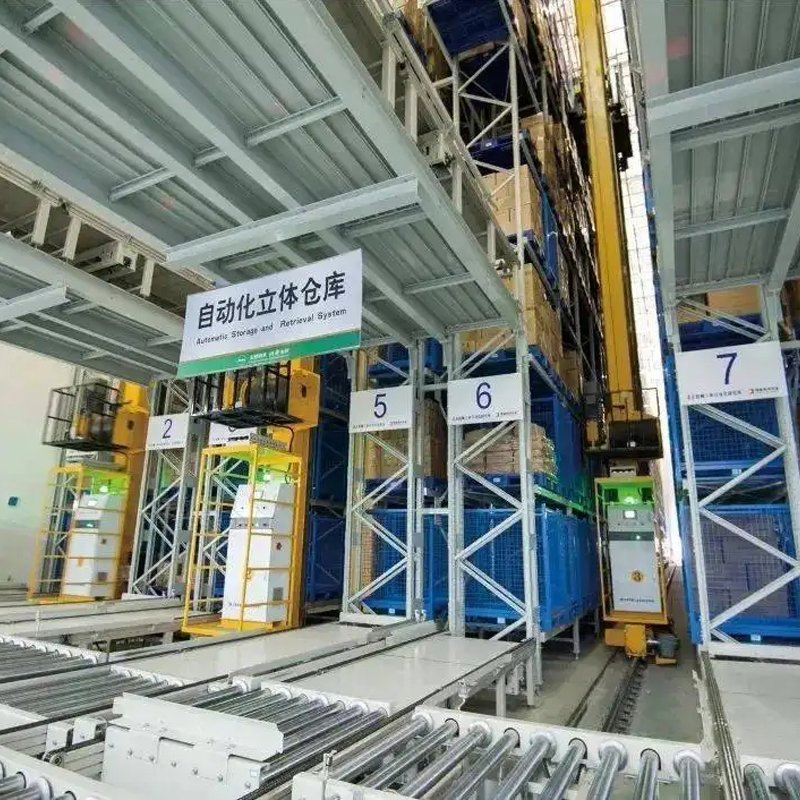

⚙️ The High Efficiency ASRS Automatic Warehouse Storage Rack System is a three-dimensional automatic storage solution. It integrates Racking systems, Automatic Storage and Retrieval Machines, Conveyors, Palletizers, De-palletizers, and advanced Electrical control systems (WMS/WCS software).

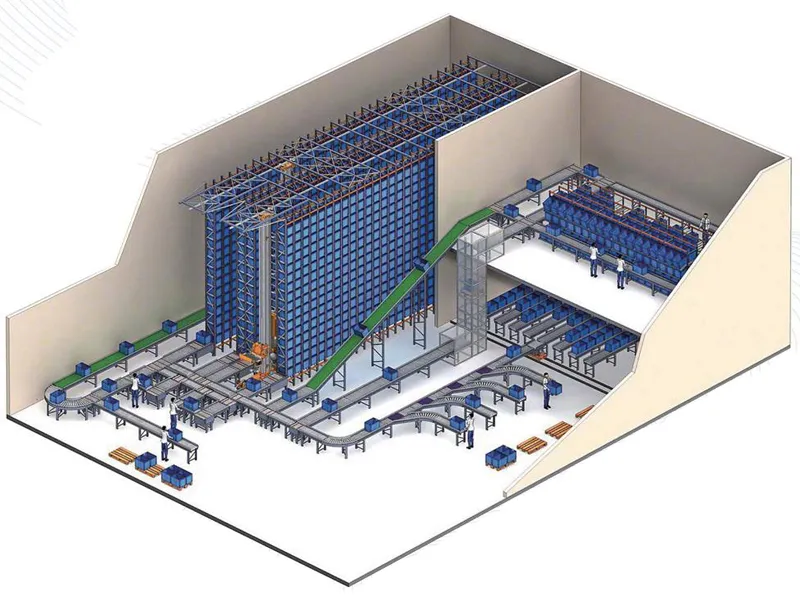

This system utilizes first-class integrated logistics concepts and advanced control technology to provide totally customized storage/retrieval solutions tailored to exact industrial requirements. It is primarily utilized in canned drinks, food, and various heavy-duty industrial sectors.

Core Components

🟦 1. Racking System

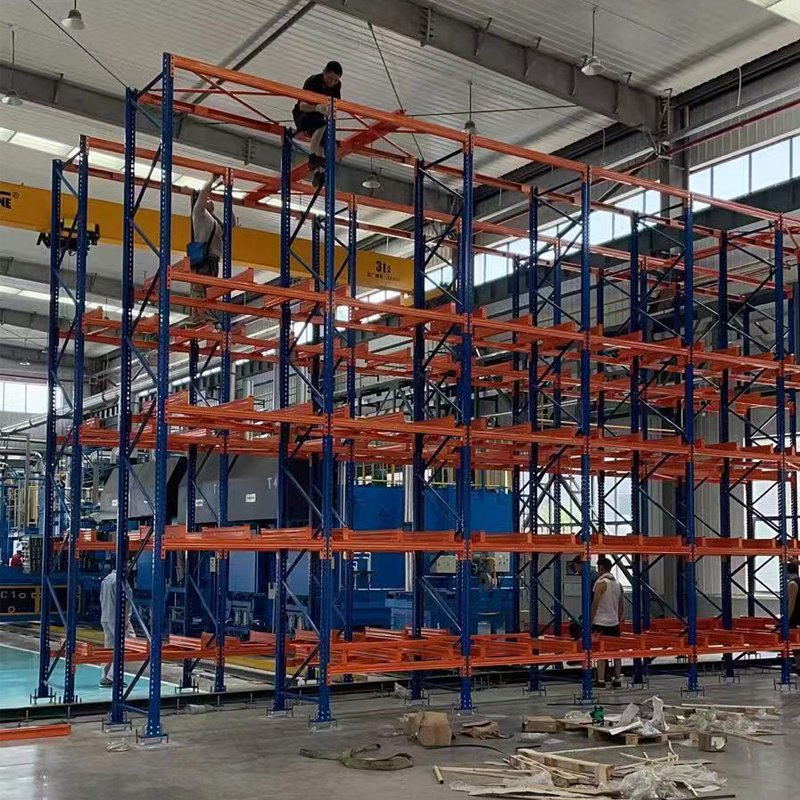

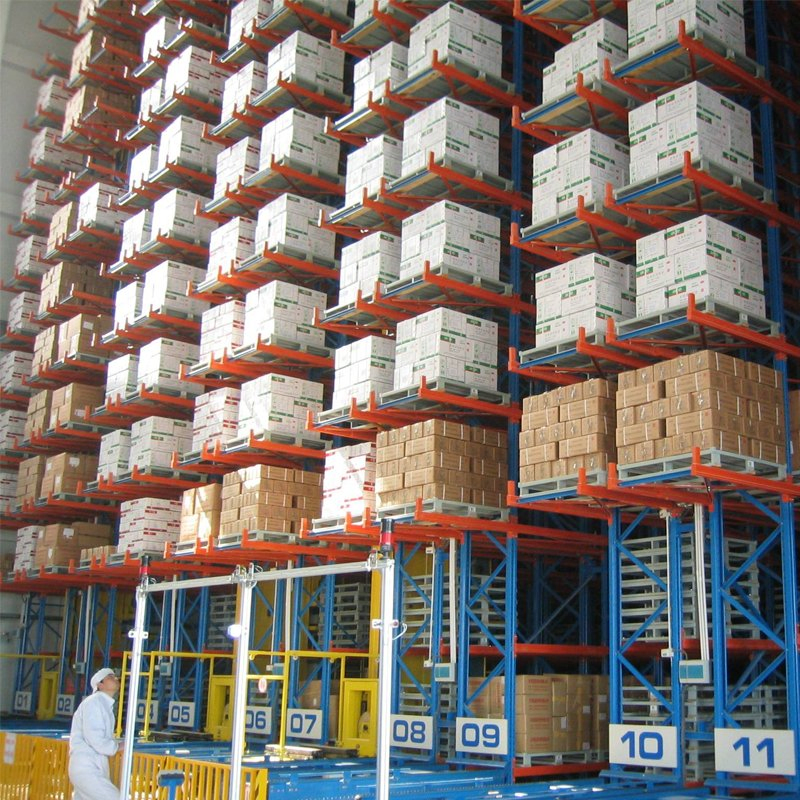

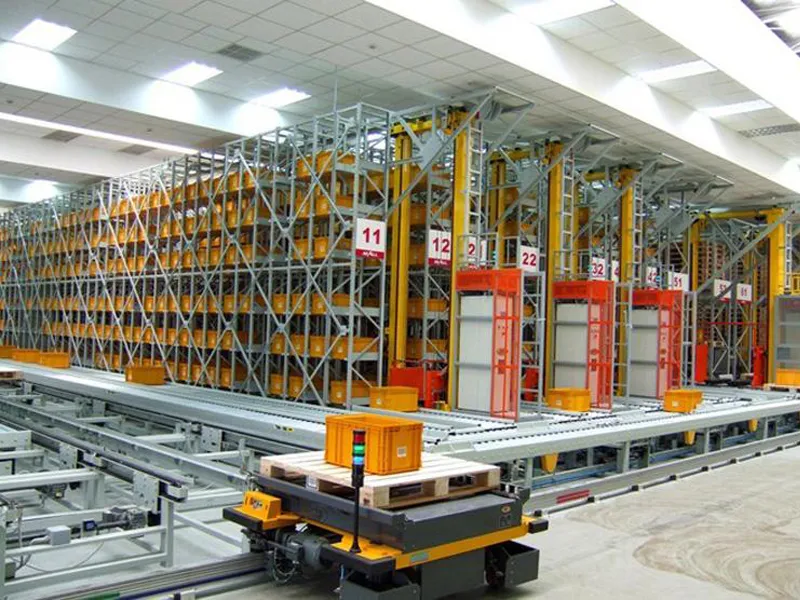

The rack system consists of pallet racking and cantilever racking with a dismantled structure, treated with high-quality powder coating to store box or pallet cargo efficiently.

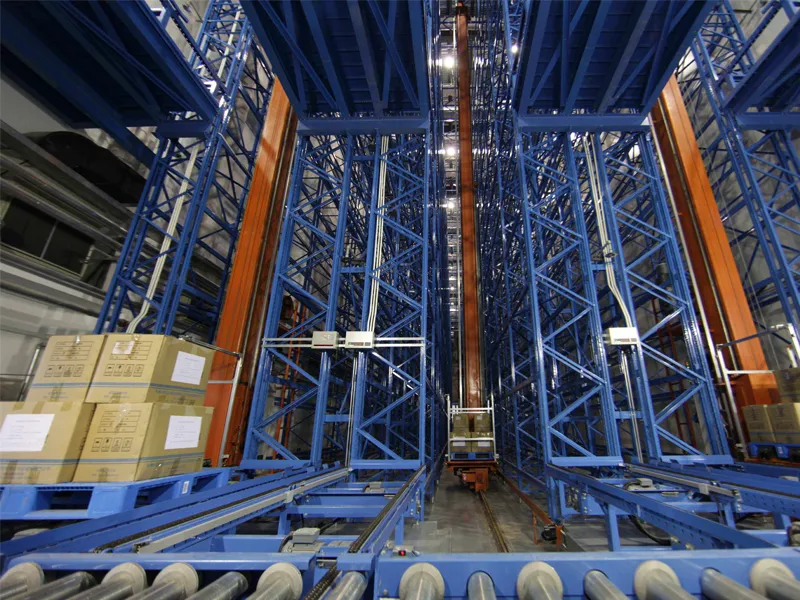

🟦 2. Storage & Retrieval Machine

The Stacker Crane is the heart of the ASRS, fulfilling the task of storing or retrieving cargo from the shelf area with precision and speed.

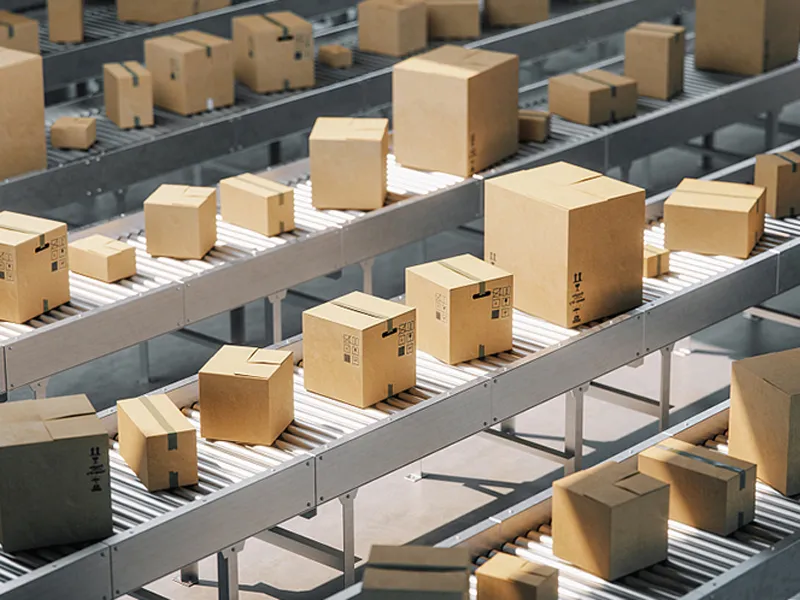

🟦 3. Conveying System

Includes various conveyors, lifting & transferring devices, RGV, and detecting doors. Its main function is to connect storage machines to the entrance or exit points.

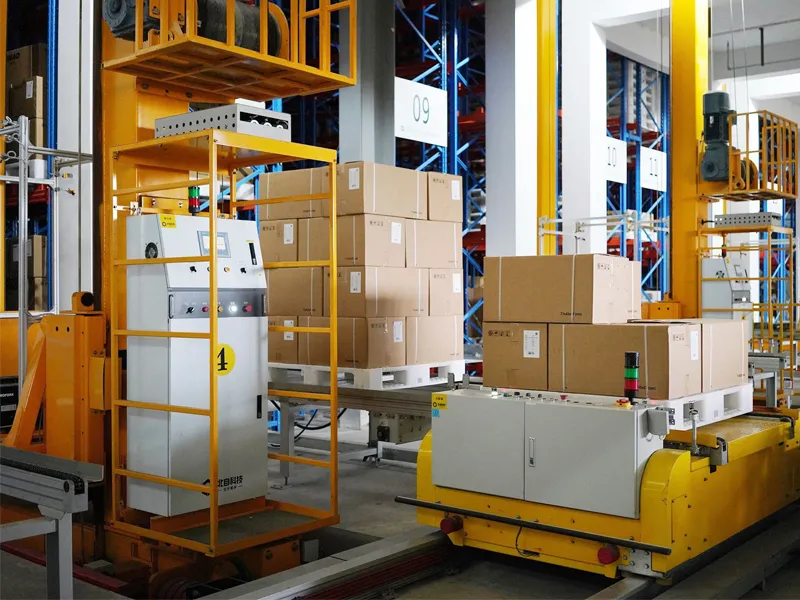

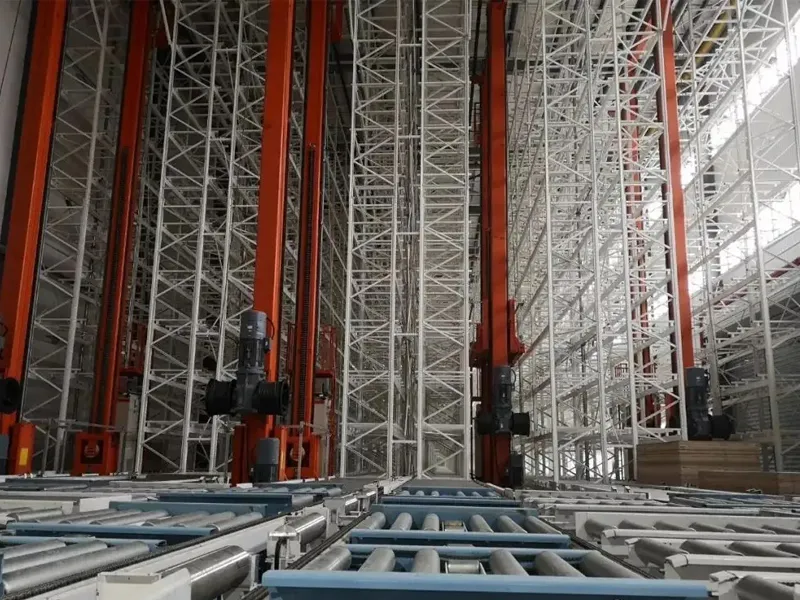

🟦 4. Stacking & Lifting System

The palletizing system stacks cartons and pallets, while the lifting system places goods on each shelf level regardless of forklift height limitations.

Control & Management

• Electrical Controlling System: Manages all hardware movements, including the stacker crane and conveyors.

• WMS System: Features a star network structure with management servers, RF terminals, and monitoring stations for real-time inventory control.

• Related Equipment: Includes switching carts, rail carts, automatic guided vehicles (AGV), and auto-picking systems.

Industry Expertise

As a leading provider in the canning and packaging equipment industry for over 15 years, the factory specializes in automated canning, filling, and packaging production lines. With business covering more than 50 countries, the company focuses on research, development, and service to promote efficient and sustainable industrial progress. Using internationally renowned brands for core accessories, we ensure long-term reliability for automated production requirements.

Frequently Asked Questions

Q1: What are the main products available? The main product range includes Palletizers, Conveyors, Case Packers, Sealing machines, Case Erecting machines, Capping Machines, and specialized Labeling Machines.

Q2: What is the typical delivery timeframe? The delivery date is usually 30 working days for most standard machines.

Q3: What are the standard payment terms? A deposit of 30% is required in advance, with the remaining 70% due before shipment.

Q4: How is product quality guaranteed? We use a strict working system where experienced workers manage specific processes. Core electrical components are sourced from world-famous brands like Siemens and Panasonic, and all machines undergo strict test runs and carry CE/ISO certifications.

Q5: Can equipment be customized to specific requirements? Yes, we can customize machines according to your technical drawings or design entirely new solutions based on your specific operational needs.

Q6: Is overseas technical support provided? Yes, technical support is available, including sending engineers to your facility for setup and staff training if required.
