Circular Storage Rack System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🔹 Basic Specifications

Model NO.	HY-ASRS-3
Usage	Tool Rack, Beverage, Tools, Supermarket, Industrial, Warehouse Rack
Material	Steel (Q235/Q355/Q345)
Structure	Rack System
Type	Pallet Racking / Automated Storage
Height	>15m (Customizable)
Weight Capacity	500-1300kg/Layer
Surface Treatment	Professional Powder Coating
Available Colors	Royal Blue, Orange-Red, Light Gray (RAL System)

🚀 Product Description

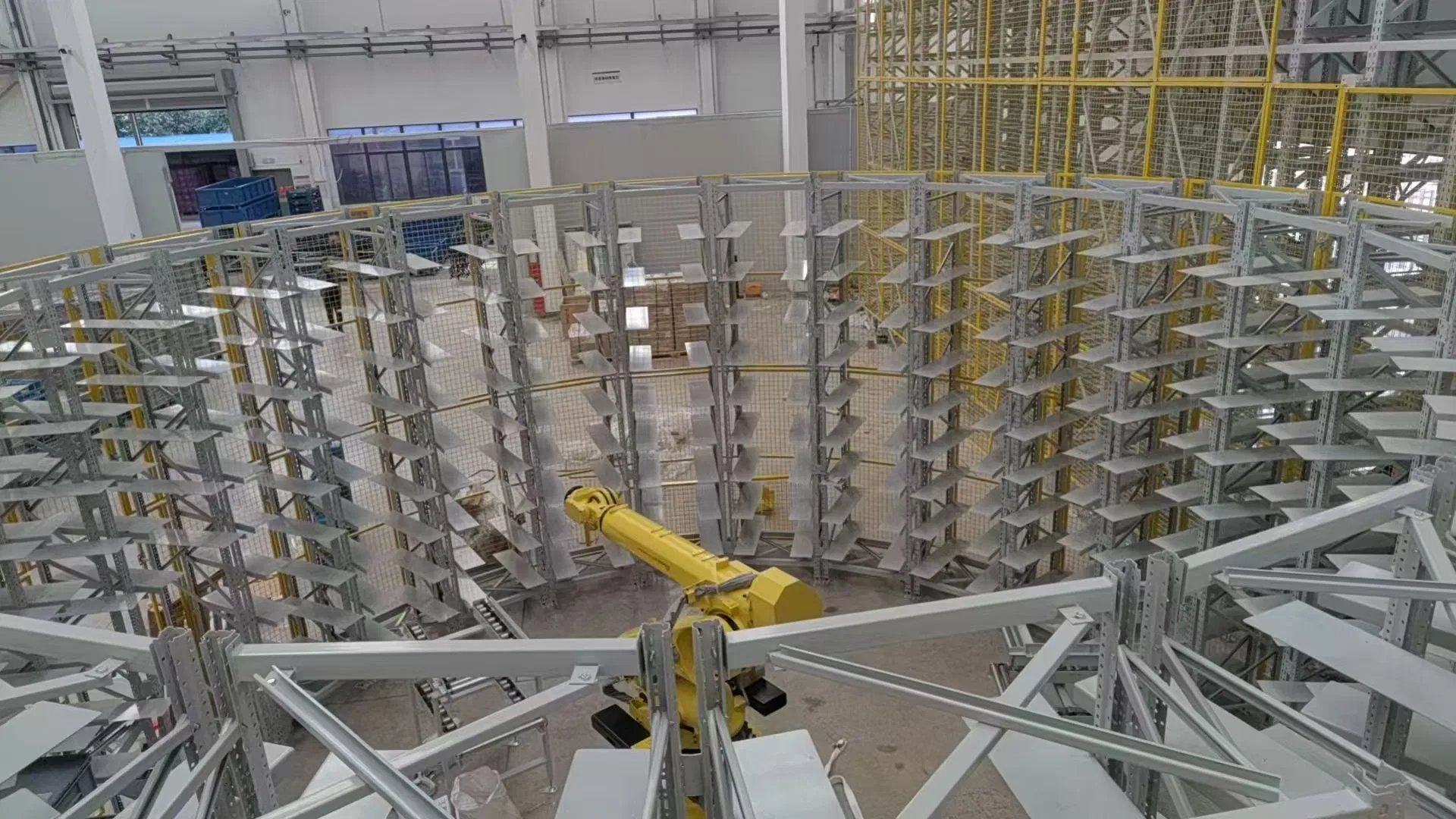

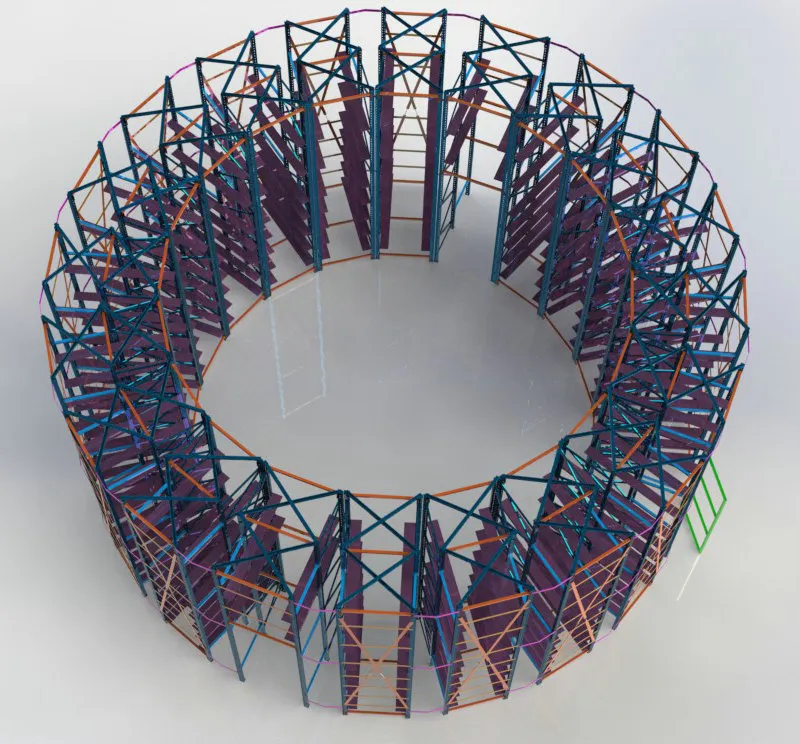

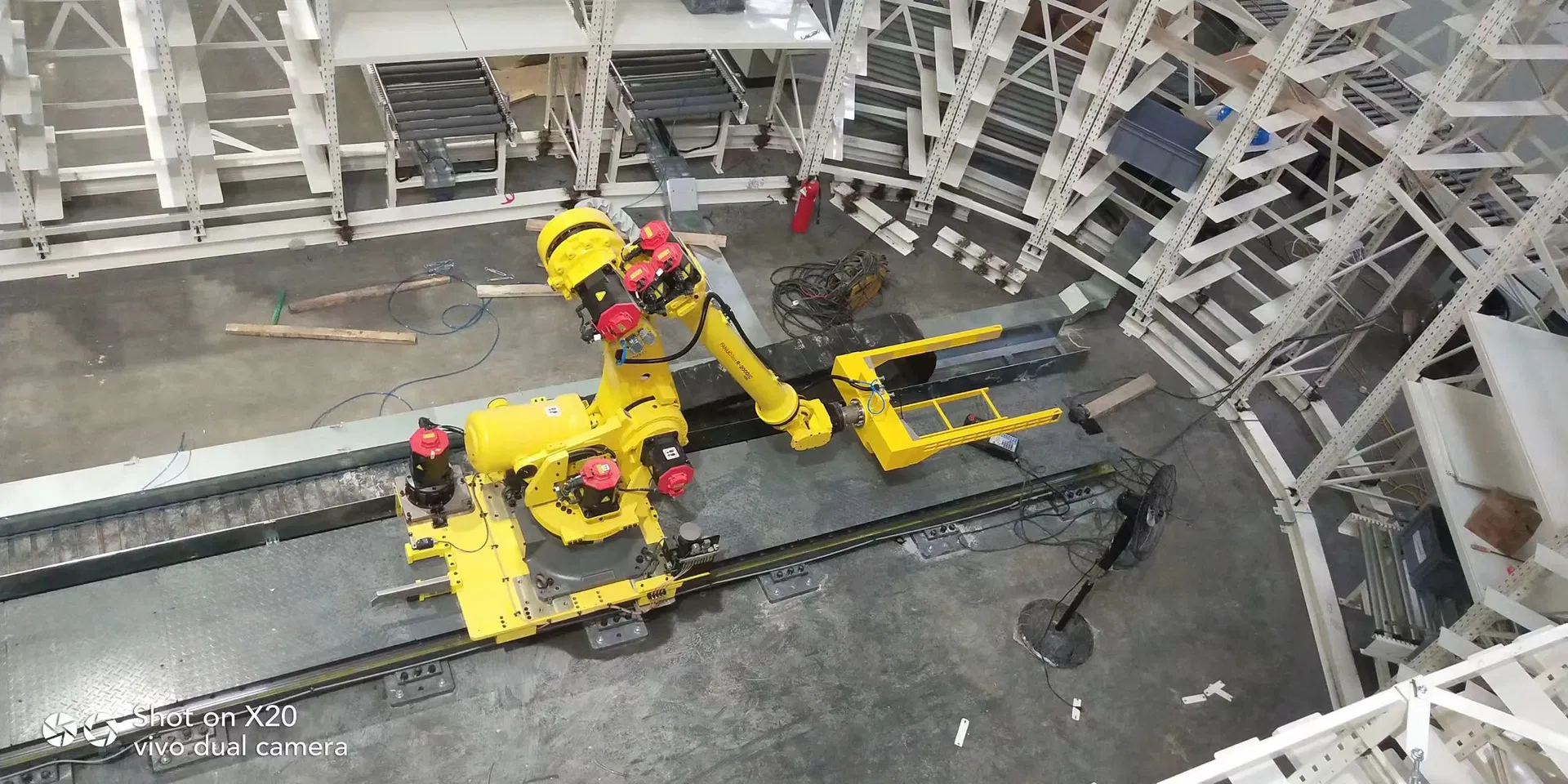

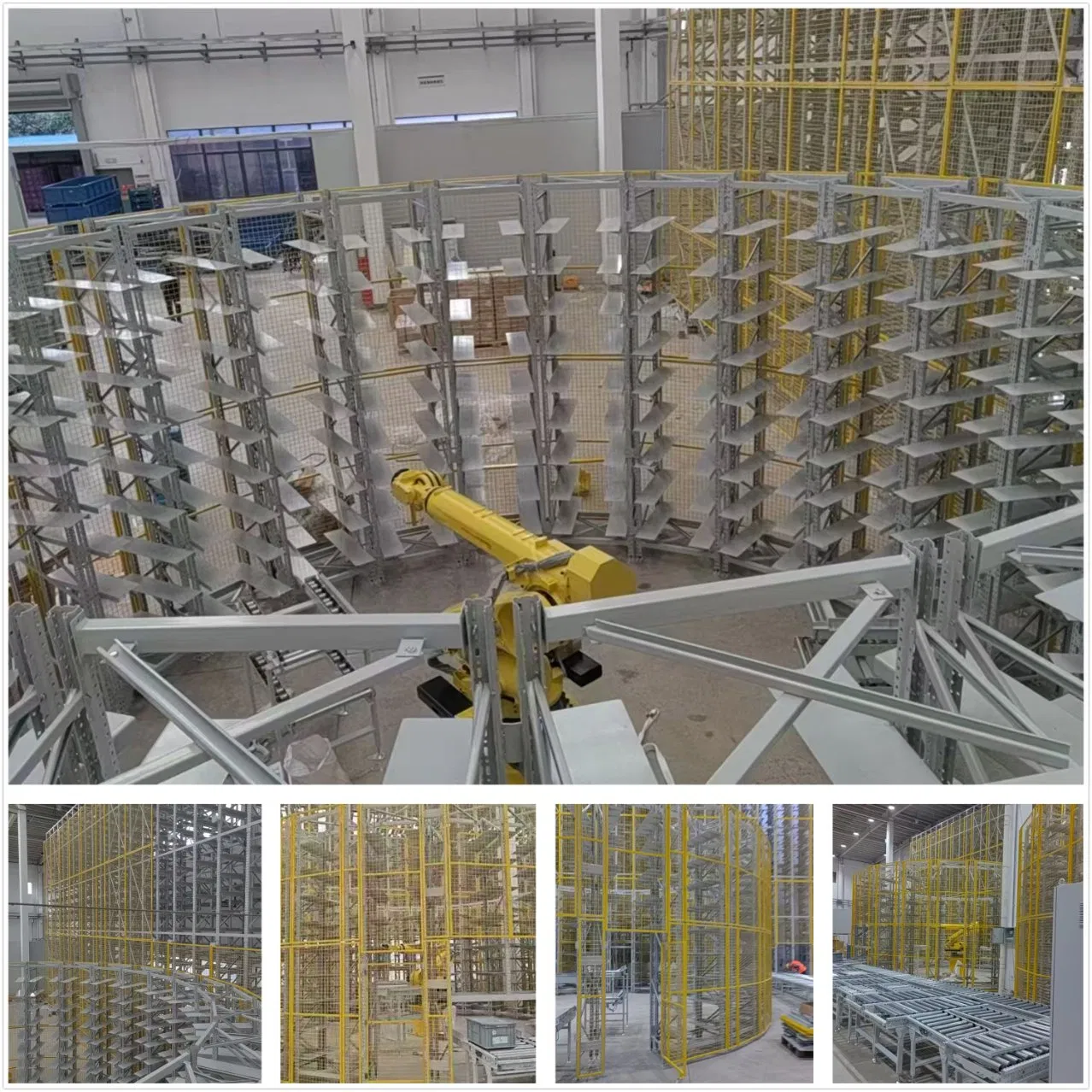

Our Circular Automated Storage Rack System offers a high-density storage solution with a closed-loop circular structure. Featuring stacker robots, lifting & rotating mechanisms, and a smart control system, it enables fully automated storage, retrieval, and rotation without internal aisles, boosting space use and logistics efficiency.

✔

Ultra-high Space Utilization: Increases storage density by 50%+ over traditional linear ASRS.

✔

Full Automation: 24/7 operation, robot scheduling, cuts labor costs and errors.

✔

Intelligent Management: Integrates with WMS/WCS, supports real-time tracking and FIFO/LIFO.

📦 Core System Types

Pallet AS/RS	Ideal for heavy materials; Heights 10–40m; Load 1–5 tons/pallet. Used in Automotive & Machinery.
Shuttle Car System	Perfect for high-density storage and cold chain warehouses. Increases space use by up to 200%.
Mini-load System	Ideal for small parts and Multi-SKU goods. High speed & precision for e-commerce and pharma.

🌐 Industry Application Solutions

★

Automotive & New Energy: JIT feeding for parts, zero production downtime, and precise traceability.

★

Pharmaceutical (GSP Compliance): Real-time temperature monitoring and batch/expiry alerts.

★

Food & Cold Chain: Stable operation at -25℃, 20% less cold loss.

🛠 Manufacturing Excellence

⚙
Fully Automated Production: CNC bending and automatic stamping lines ensure precision.
⚙
Top-tier Quality Control: ISO certified with rigorous load-bearing and corrosion tests.
⚙
Customization: Tailored size, load, and structure to meet unique warehouse constraints.

📦 Packaging & Shipping

Components are neatly arranged on pallets, protected by cardboard or composite strips to prevent scratches. All units are strapped with steel belts and wrapped in stretch film for moisture and dust protection during global transit.

🎥 System Operation Video

❓ Frequently Asked Questions

Q1: Can the AS/RS system be customized for different warehouse heights? A: Yes, the system is fully customizable. We can design racks exceeding 15-40 meters in height depending on your facility's constraints and storage needs.

Q2: What is the typical load capacity per pallet? A: Our standard systems handle between 500kg to 1300kg per layer, but heavy-duty configurations can support up to 5 tons per pallet.

Q3: How long does the production and delivery take? A: Production time generally ranges from 7 to 25 days. Total lead time depends on the project scale and shipping destination.

Q4: Is the system compatible with existing ERP or WMS software? A: Absolutely. Our smart control systems are designed to integrate seamlessly with standard WMS/WCS and ERP platforms for real-time inventory tracking.

Q5: What materials and finishes are used for durability? A: We use high-quality Q235, Q345, or Q355 cold-rolled steel. All components undergo professional powder coating for rust resistance and long-term durability.

Q6: Do you provide installation and after-sales support? A: Yes, we provide detailed installation drawings, video guidance, and online technical support. Replacement parts are also available if any damage occurs during transit.
