High Density Storage Radio Shuttle Racking Multi Deep as/RS Pallets Storage Rack Systems with Pallet Runner

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

i

Basic Information

Surface TreatmentPowder Coating & Galvanized

Main System 1Racking

Main System 2Stacker

Main System 3Conveyor System

Main System 4Controlling System

Main System 5WMS System

CertificateAS4084, FEM, ISO9001, CE

Transport PackageStandard Export Package

SpecificationCustomized

HS Code73089000

Production Capacity10000t/Year

P

Product Description

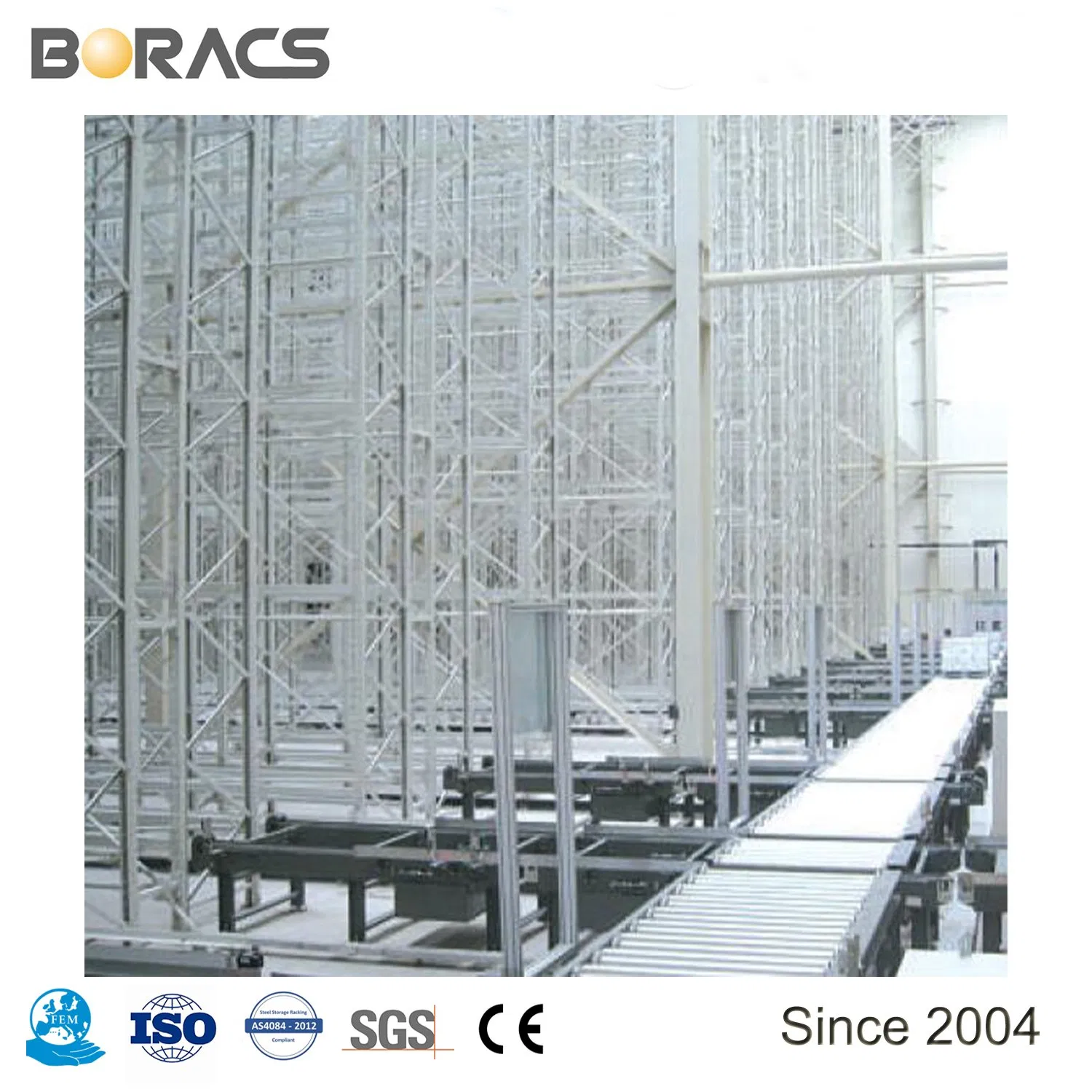

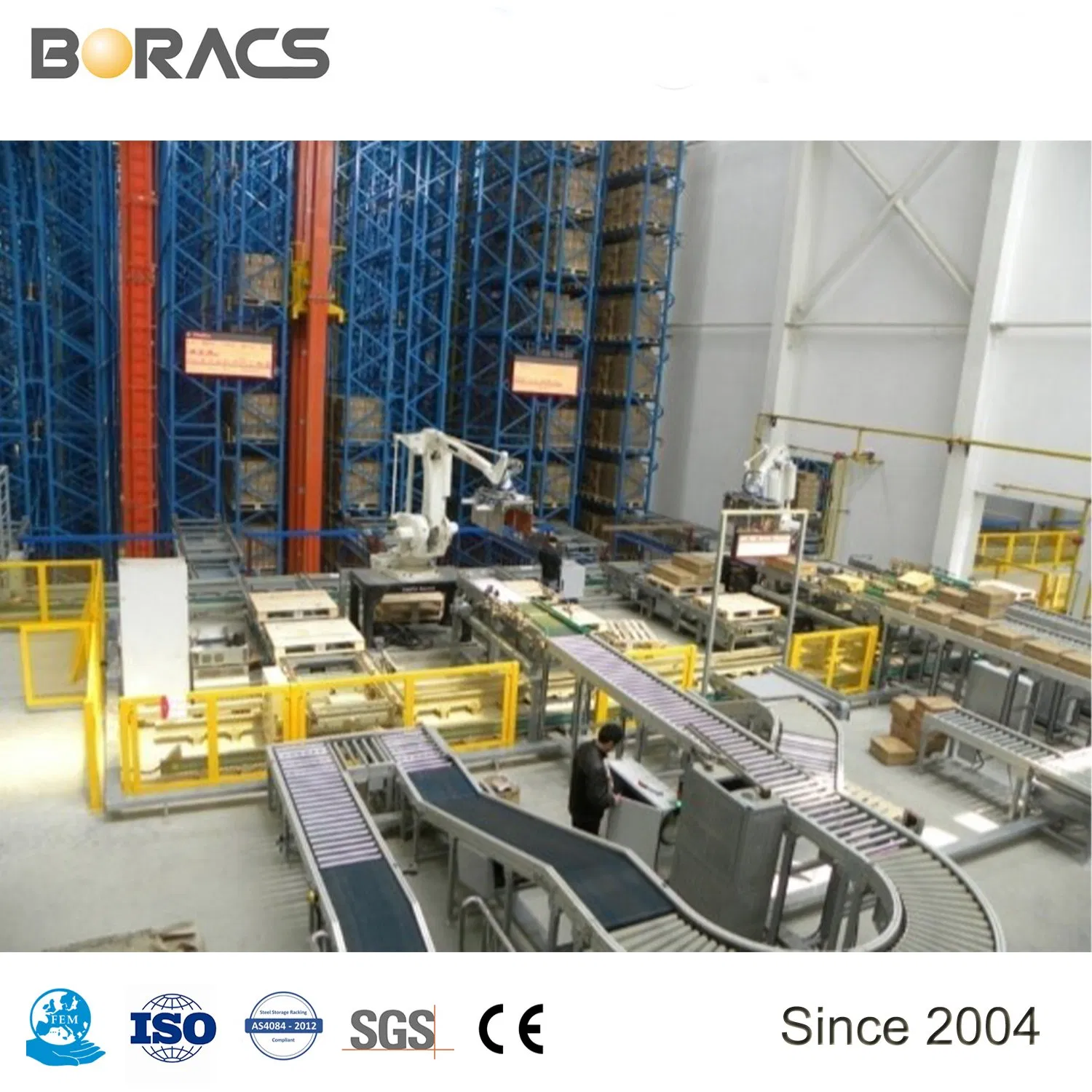

Automatic Storage and Retrieval System (AS/RS)

In AS/RS system, heavy-duty rackings are placed in booth sides with a small aisle space between these racks. The rail-mounted storage and retrieval mechanism is fixed between the aisle spaces. The rails cover the entire with PLC Controller to control the overall operation of the system.

Stacker cranes are machines designed for the automated storage of pallets. They travel along the aisle of a warehouse, carrying out the storage, placement and retrieval of goods. Making full use of storage space achieving standardization, automation, greatly reducing error rate, labor intensity, storage and transportation costs.

Feature	Details
Product Name	AS/RS Racking System (Automated Storage / Retrieval System)
Basic Components	Racking system, stacker system, conveyor system, management and controlling system
Size	Customized size
Material	Steel, cold-rolled steel
Color	RAL system (blue, grey, orange or customized)
Surface Treatment	Powder coating
Usage	Warehouse rack, Industrial

M

Detailed Photos

T

Technical Parameters

Product Name	AS/RS Racking and Retrieval System
Size & Load	Customized load and size, total height can reach 40 meters
Lifting speed	0-60m/min by frequency control
Positioning method	Laser ranging + rotary encoder, photoelectric address
Positioning accuracy	80/100/120/140/160501.5/2.0mm
Horizontal running speed	0-240m/min by frequency control

S

The Main Systems

Racking Structural Feature: Usually equipped with pallet racking and drive-in racking. Steel and wooden panels available. Used in food, tobacco, electronic, and mechanical industries.
Stacker Structural Feature: Double upright structure, vector frequency conversion drive, and encoder position control. Includes mechanical and electronic safety devices and touch screen interface.

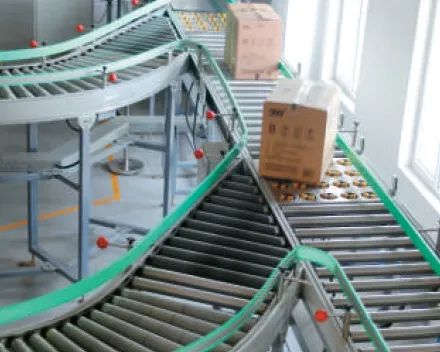

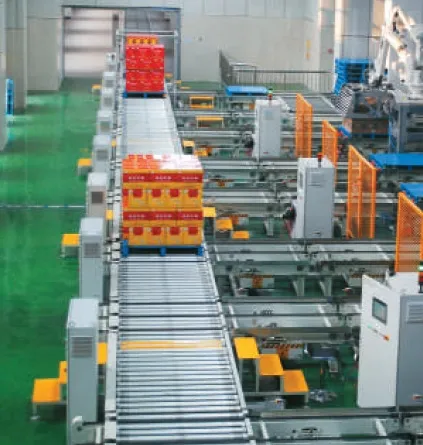

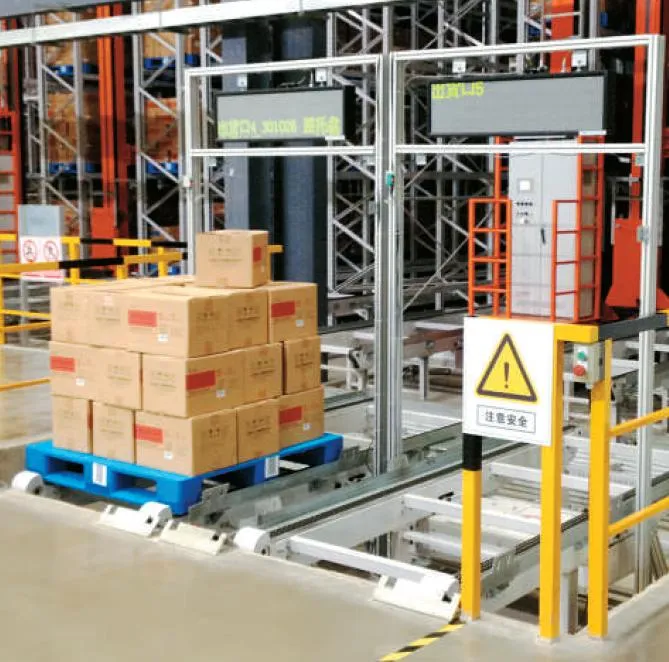

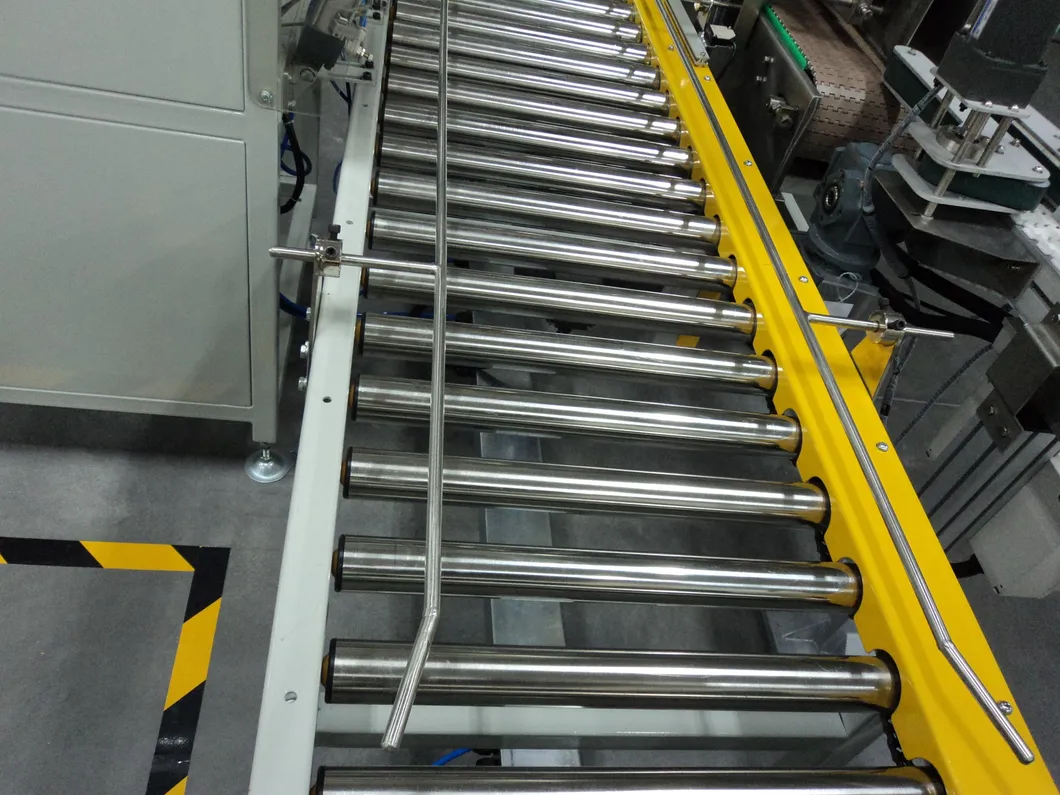

Conveyor System: Equipped in front or back of warehouse for bridging forklift and stacker procedures using rolling or chain conveyors.
Controlling System: Communicates via Siemens controller, operating all conveyors offline or automatically.
WMS System: Star network structure including management servers, RF terminals, and monitoring computers for warehouse inventory control.

C

Manufacturing & Quality

Specializing in international export markets with installations in over 30 countries. We conduct regular Tensile and Yield Strength tests to ensure that only the best qualified materials are used. Racking systems are subjected to rigorous tests compliance with European FEM and Australian Standards.

A

Our Advantages

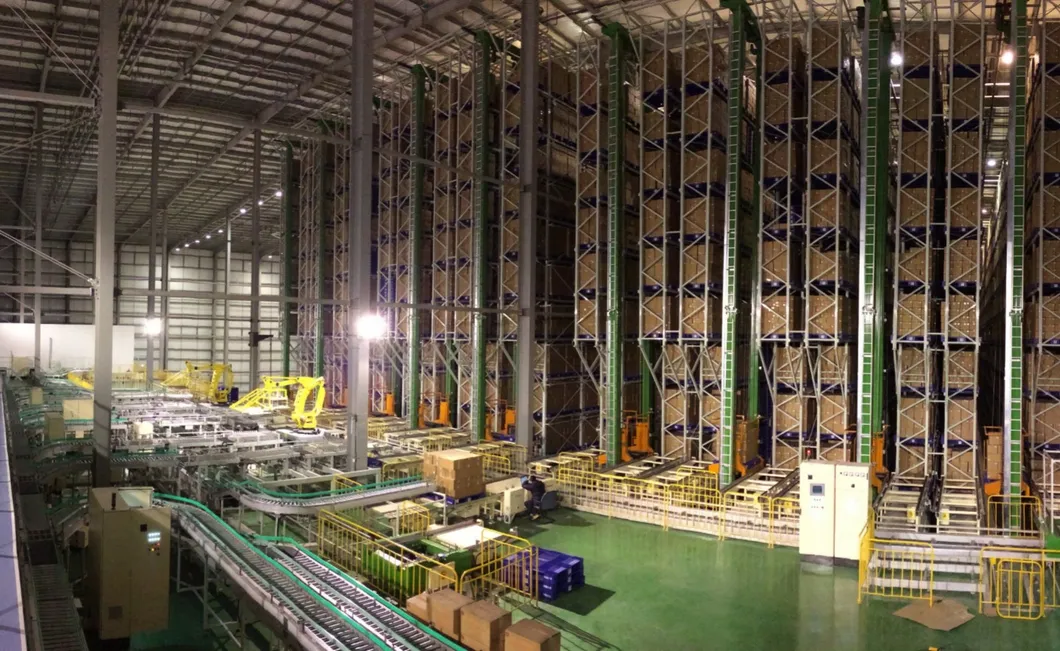

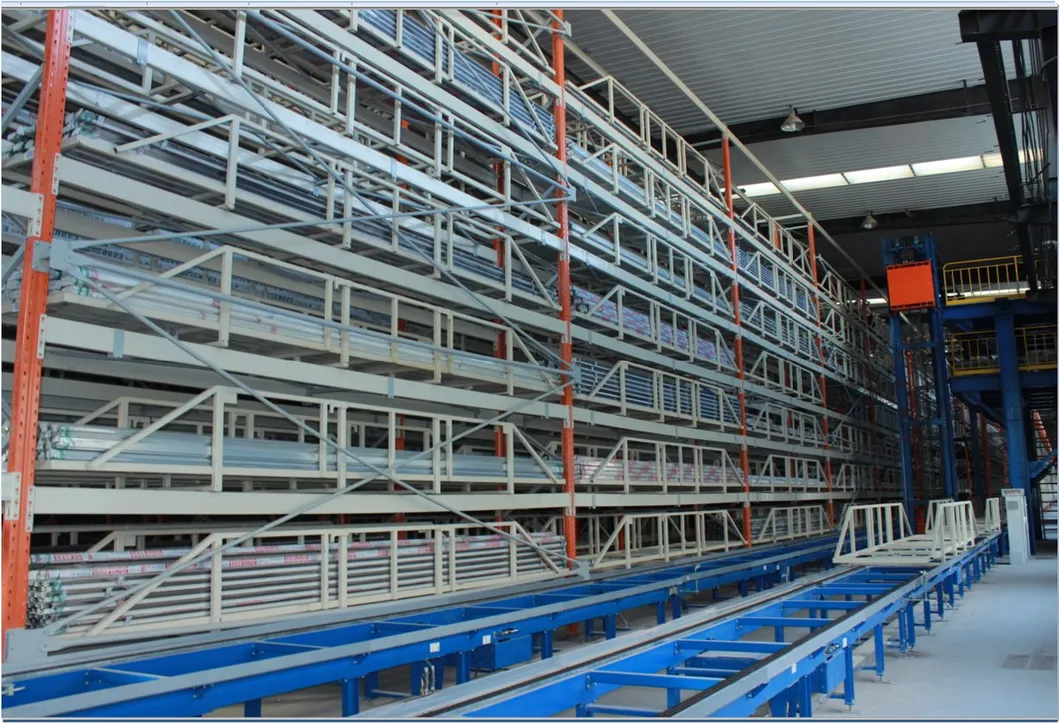

Make full use of vertical space for automated warehousing using multi-level systems.
Height flexibility: Reach up to 30-40 meters. Settings available for high (above 12m), middle (5-12m), and low (below 5m) elevations.
Standardization and automation to reduce error rates and labor intensity.

L

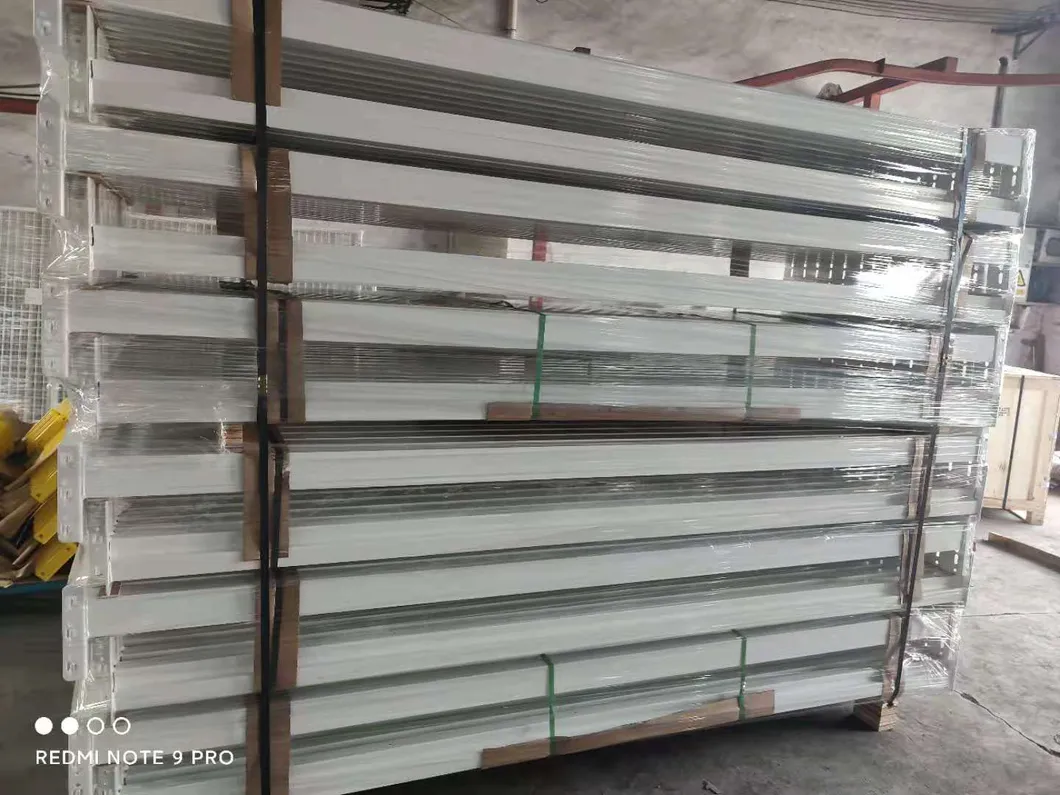

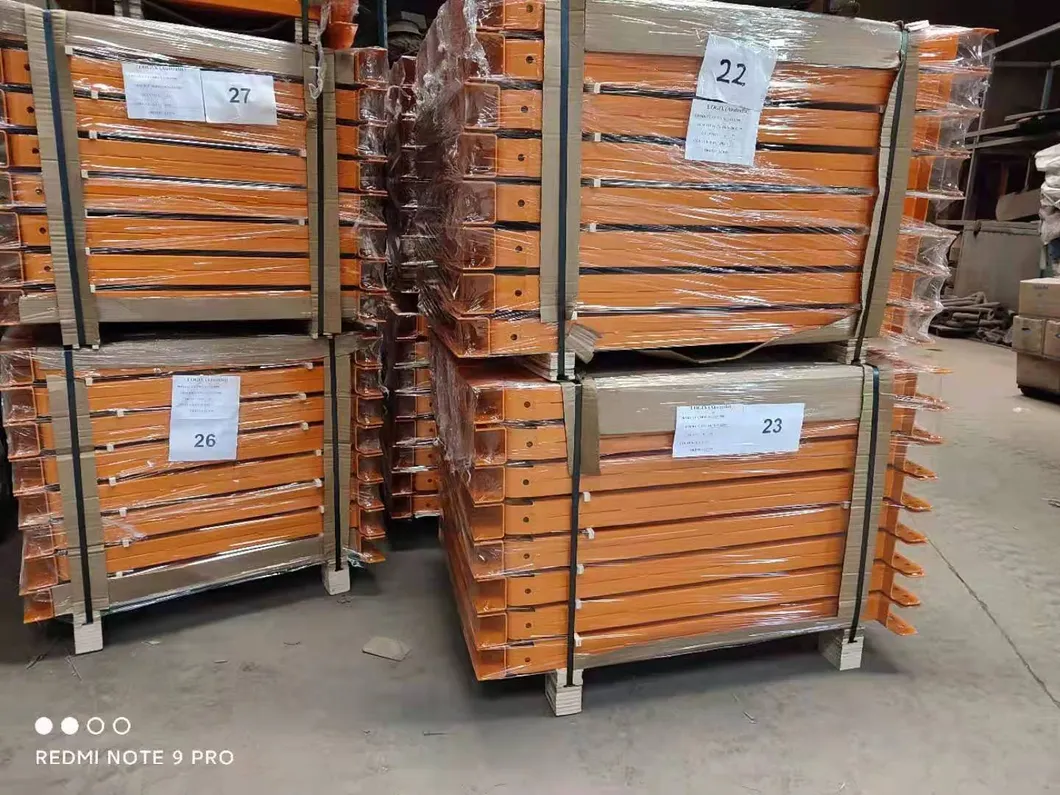

Packaging & Shipping

?

Frequently Asked Questions

1. What is an AS/RS System? AS/RS stands for Automated Storage and Retrieval System. It uses computer-controlled systems for automatically placing and retrieving loads from specific storage locations.

2. How high can these racking systems reach? The system is highly flexible; standard designs can reach 30 meters, while customized technical parameters allow for total heights up to 40 meters.

3. What are the main components of the system? A complete system typically consists of the racking structure, stacker cranes, conveyor systems, a controlling system (PLC), and WMS (Warehouse Management System) software.

4. Which industries benefit most from AS/RS? AS/RS is ideal for industries requiring high-density storage and high throughput, such as food and beverage, tobacco, electronics, mechanical parts, and armament sectors.

5. What safety standards do your products meet? Our racking systems are compliant with international standards including AS4084 (Australia), FEM (Europe), ISO9001, and CE certifications.

6. How is the accuracy of the stacker crane ensured? The stacker cranes utilize laser ranging combined with rotary encoders and photoelectric address positioning to ensure high-precision placement and retrieval.
