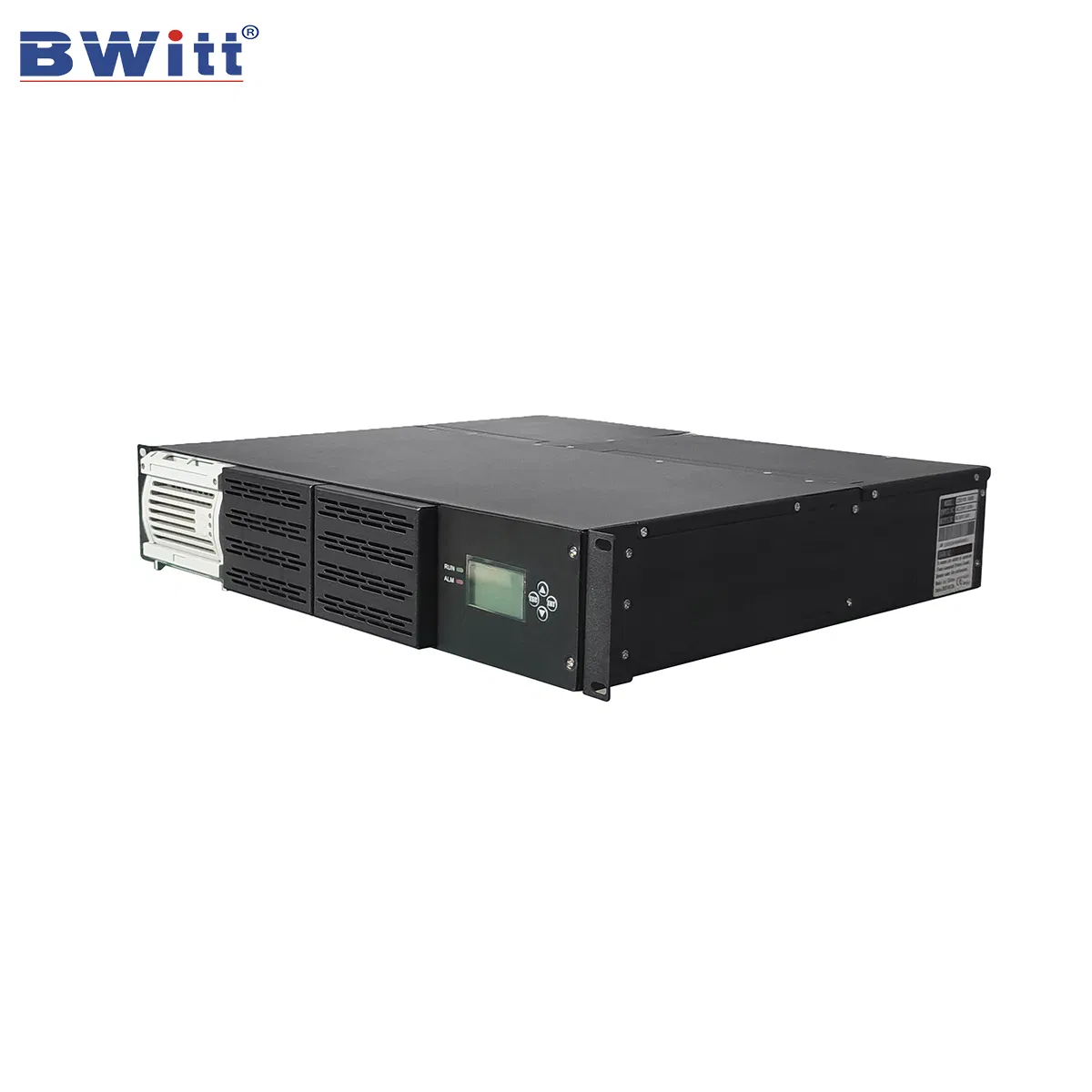

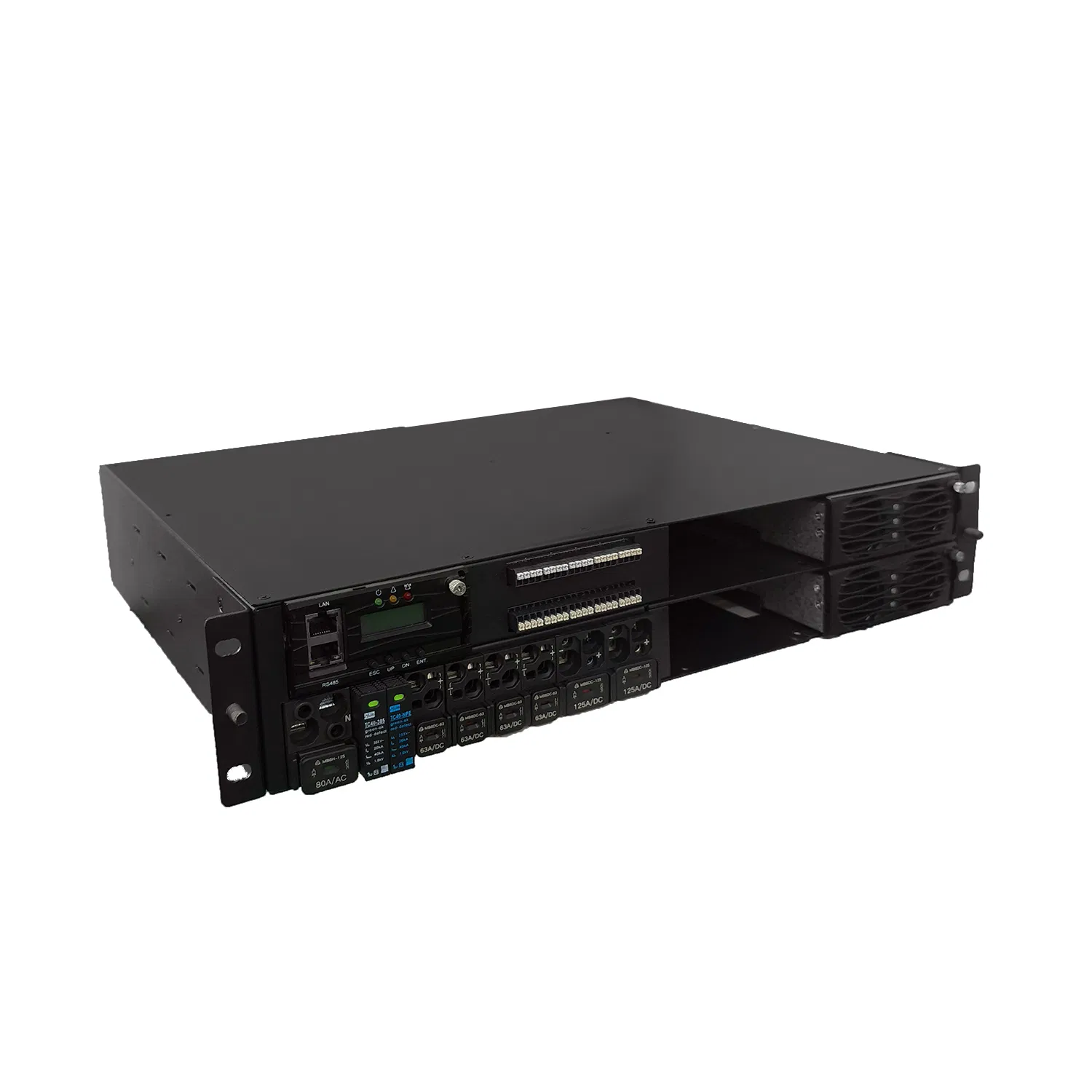

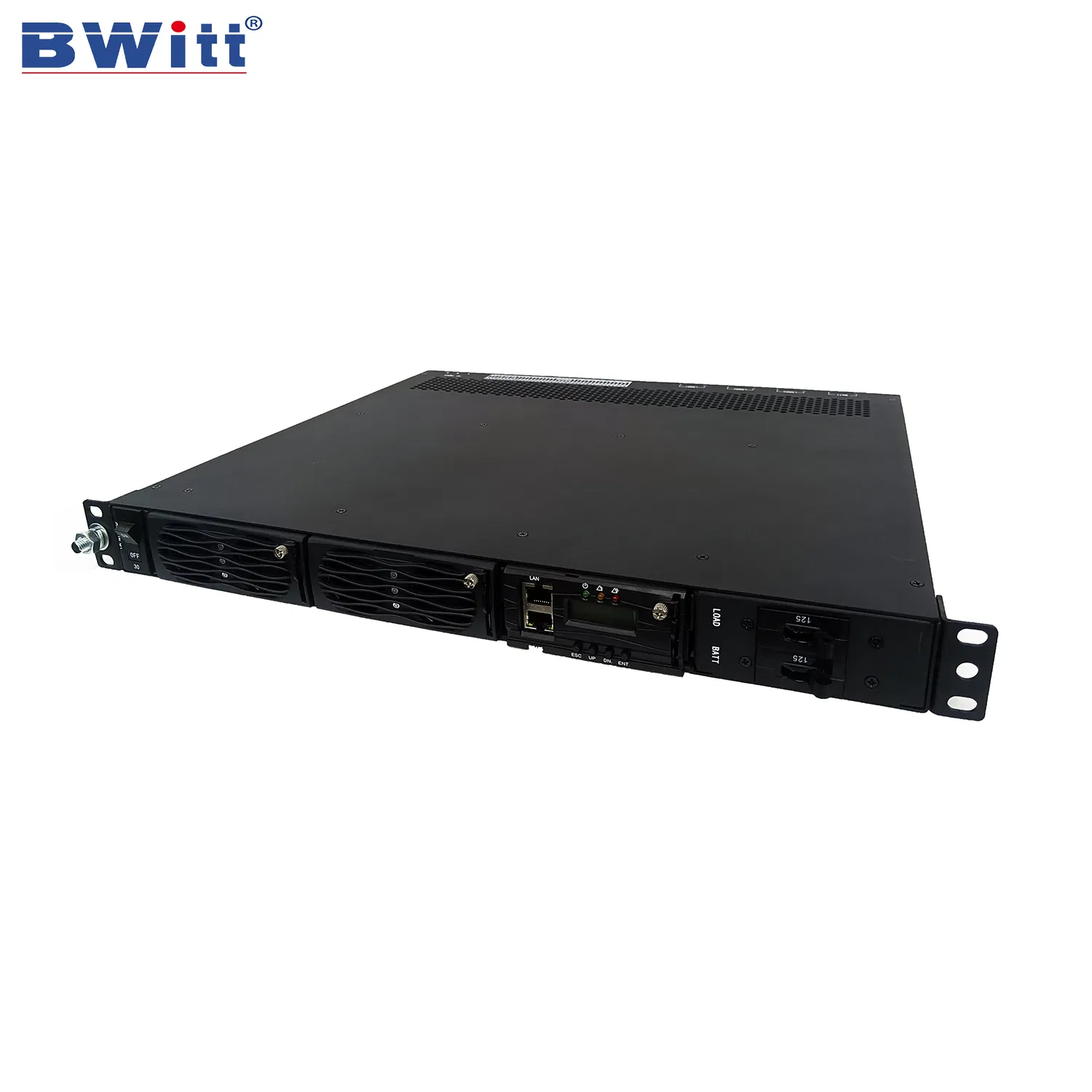

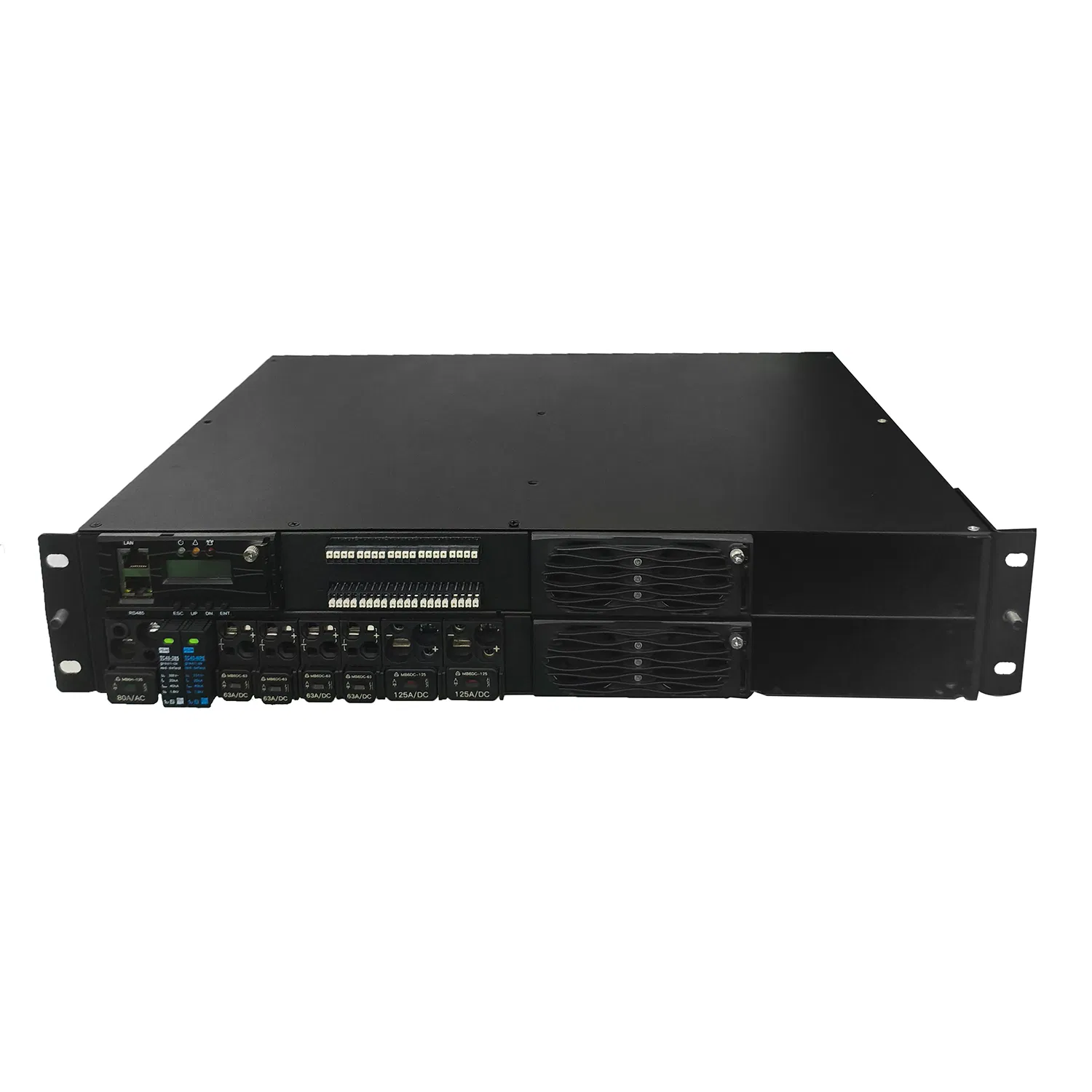

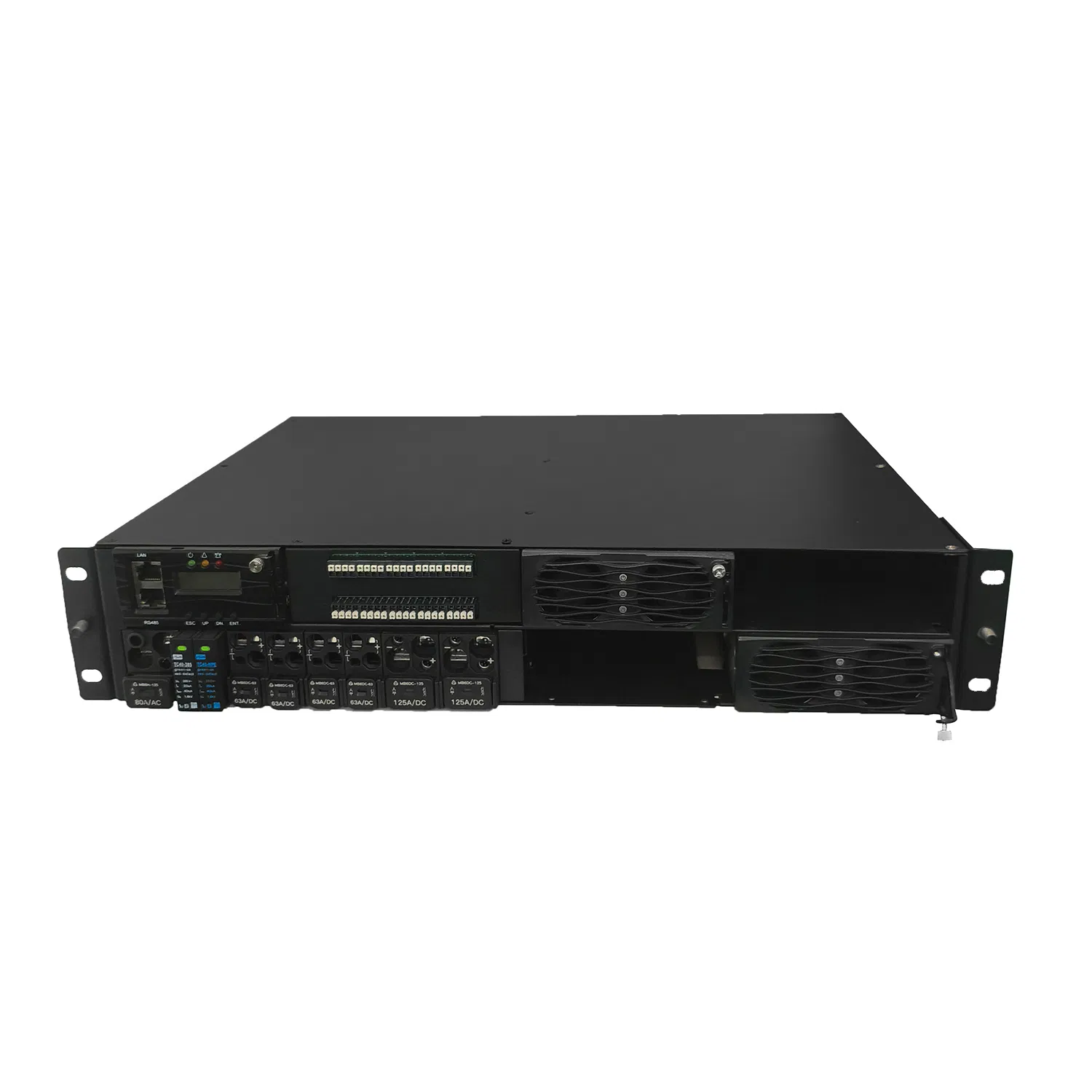

2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System

📊

Basic Information

Model NO.

BVT220/24-60AS

Output Power

1800W

Input Voltage

220V

Connection Mode

Parallel Switching Power Supply

Starting Mode

Self-excited

Modulation

PWM / Width Modulation

Certification

CE, ISO

Product Name

Rectifier System

Protections

Short Circuit, Overtemp, Overload, Overvolt

Specification

482*410*88mm

📝

Product Description

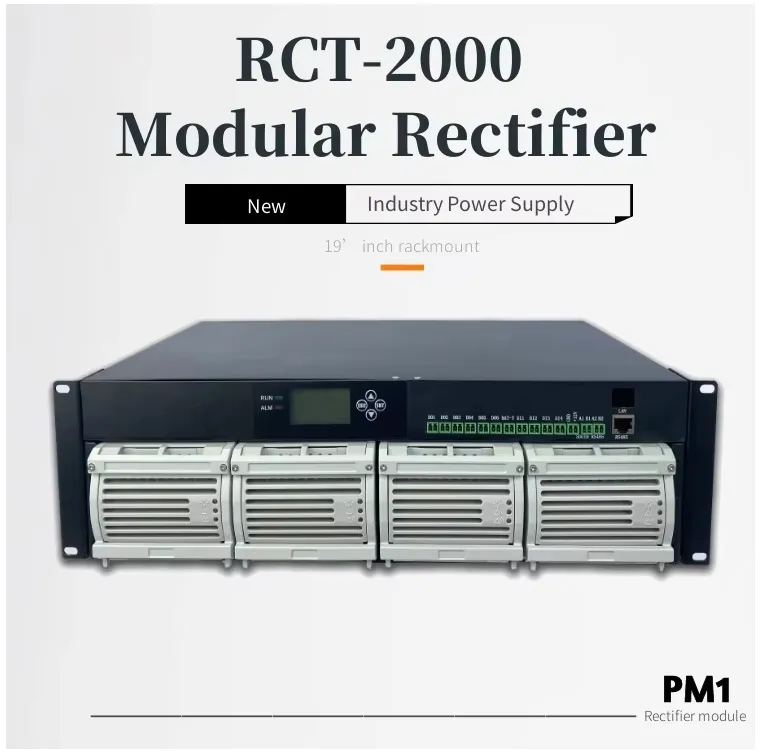

RCT2000 Series Rectifier System (24Vdc)

Embedded DC Power Systems are widely deployed in Telecom and Industrial environments. This system consists of power distribution units, rectifier modules, and monitoring modules. Configuration can be customized to meet specific power requirements.

Widely operating range of AC input voltage: 90~290Vac
Compact 19-inch rackmount shelf
Real-time detection of operating status with sound-light alarm
Perfect battery management with accessory battery temperature detector
60 amp output per module, up to 180 amp system capacity for 2U

⚙️

Technical Specifications

Module Performance
Rectifier Module	BR481800 1PCS
Efficiency	93.2%
Power Capacity (Max)	1800W

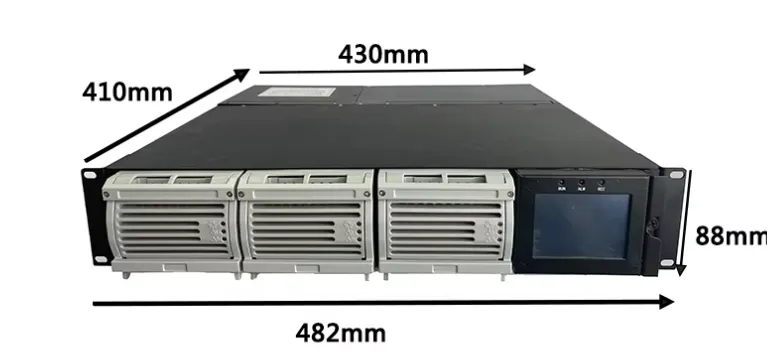

Dimensions (HWD)	88mm(2RU) * 482mm(19") * 410mm
Weight	Approx. 14KG
Classification	IP21

Parameter	AC Input Details	DC Output Details
Voltage Range	85Vac - 300Vac	21Vdc - 29Vdc (Adjustable)
Current/Frequency	45-65Hz	66A Max Output
Regulation/Ripple	THDi < 5% @ Full Load	Ripple ≤200mV
Connections	Terminals (L+N+PE)	3 Group Bus-bar Load Connection

🖼️

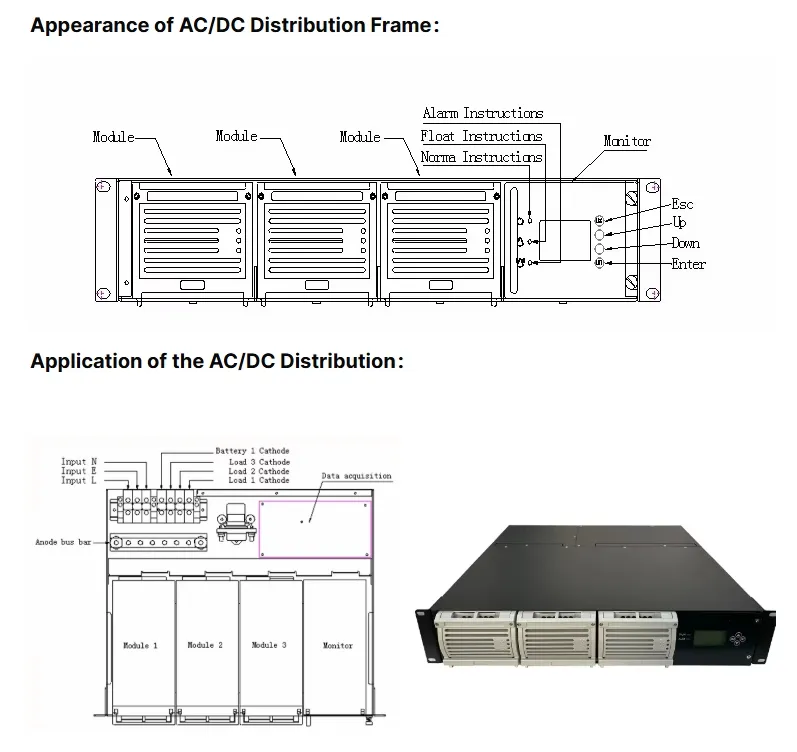

Product Showcase

🏢

Manufacturing & Quality Control

Our manufacturing facility specializes in rack inverters, STS, and switching power supplies. With advanced technology and three production lines, we maintain a production capacity of 1000 units per month. Products are exported globally and are widely used in telecommunications, energy storage, and data centers.

Our facility operates under a complete quality control system, covering material inspection, SMT, assembly, aging tests, and final packaging. We hold National High-Tech Enterprise, CE, and ISO9001 certifications, ensuring our products meet rigorous international standards.

❓

Frequently Asked Questions

Is this system suitable for battery charging?

Yes, the rectifier system is widely used for N+1 power supply and battery charging system management with integrated battery temperature detection.

Does the product support remote monitoring?

Yes, the system supports RS485 communication as standard, and SNMP function is available as an option for real-time remote data monitoring and control.

What is the operating temperature range?

The system supports stable operation within a temperature range of -20°C to 60°C. For extreme environments, cooling systems can extend the product's lifespan.

Can I switch between AC and DC priority modes?

Yes, the inverter supports both AC main and DC main power supply modes. These can be flexibly changed through the LCD panel or communication software.

What protection functions are included?

Comprehensive protections include input under-voltage, anti-DC reverse connection, buffer protection, over-voltage, overload, short-circuit, and over-temperature protection.

How does the system handle overloads?

The system features superior overload capacity and can withstand full load startup. It includes a bypass switch to transition to bypass power when overloaded.
