Modular Metal Furniture System for Efficient Manufacturing Solutions

Customization:	Available
After-sales Service:	Full Drawing, Install Guide or Training
Connection Form:	Bolt Connection

📊

Basic Specifications

Model NO.

GY-SW1452

Material

Steel Structure

Usage

Warehouse, Dormitories, Workshop, Steel Hangars

Structure Frame

Portal Frame

Software Used

Auto CAD, Pkpm, Tekla

Steel Code

Q355 & Q235

Wind Loading

80km/H-120km/H

Seismic Grade

7 Grade

Connection

Bolts Connection

Capacity

2000 Tons Per Month

🌟

Advantages of Steel Structure Building

1

Flexible layout: Adaptable designs to suit various industrial and commercial needs.

2

High Resistance: Good ductility, strong plasticity, and excellent seismic and wind resistance.

3

Efficiency: Quick to build with a long service lifespan.

4

Cost-Effective: Lightweight materials combined with high quality and low overall cost.

5

Eco-Friendly: 100% recyclable or degradable materials, minimizing environmental impact.

🏗️

Technical Parameters & Materials

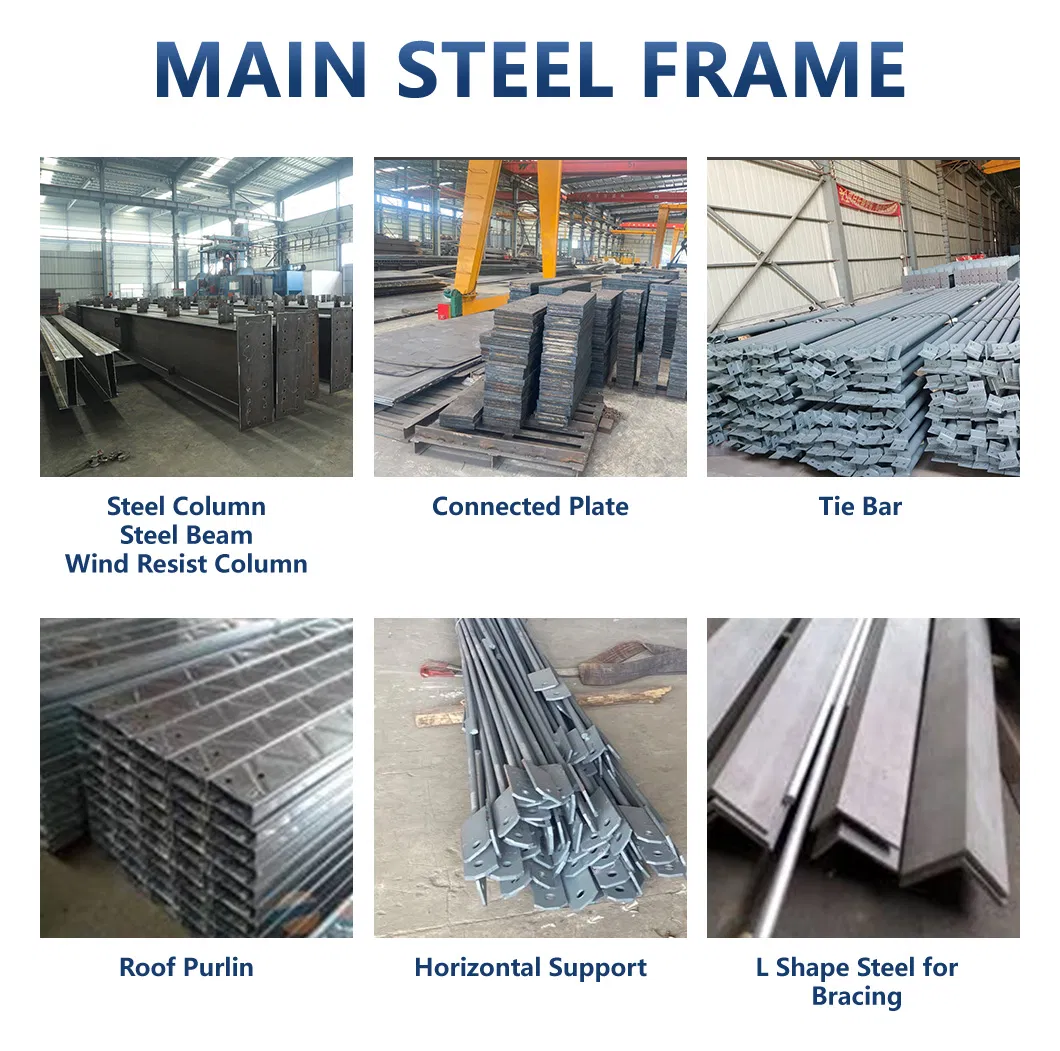

Component	Specific Item	Description / Size	Material Code
Steel Frame	Column & Beam	Hot rolled or welded H-beam	Q355B
	Tie Bar	¢89*3	Q235B
	Horizontal Support	¢20 Round steel	Q235B
	Roof/Wall Purlin	C1605020*2.0 (Galvanized)	Q235B

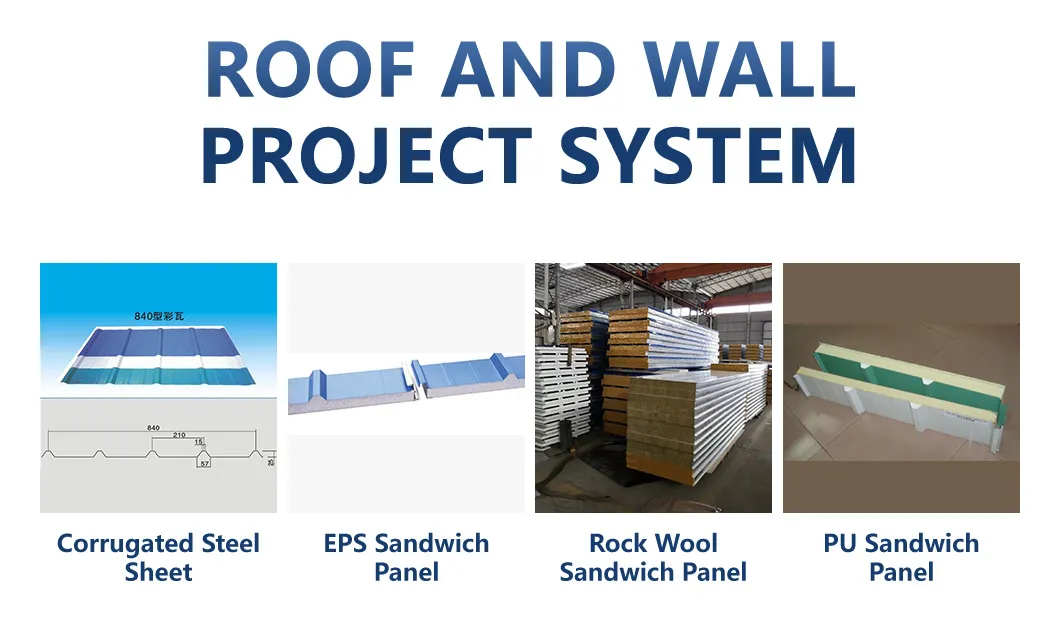

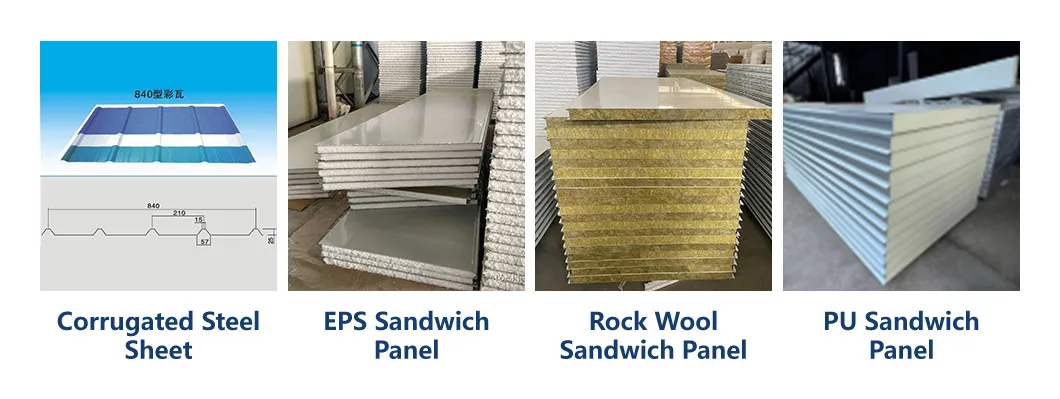

Cladding Type	Options	Thickness / Specification
Roof & Wall	Corrugated Steel Sheet	0.426mm, 0.476mm or customized
Insulation	EPS / Rock Wool / PU Sandwich Panel	50mm / 75mm / 100mm

🛠️

Professional Services

Design & Engineering: Full solution for house design tailored to specific requirements.

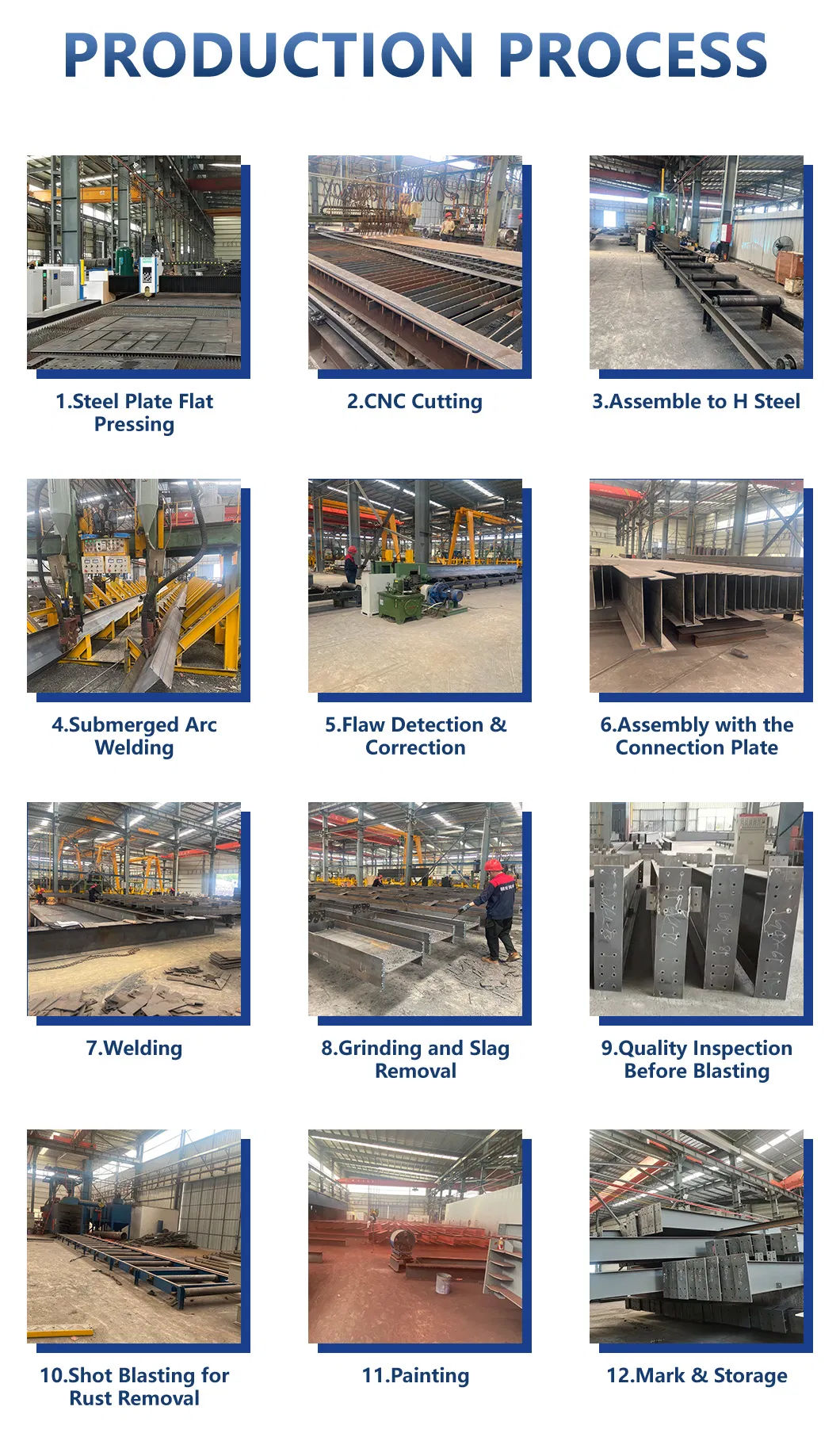

Procurement & Manufacturing: Quality control under ISO standards for all prefabricated materials.

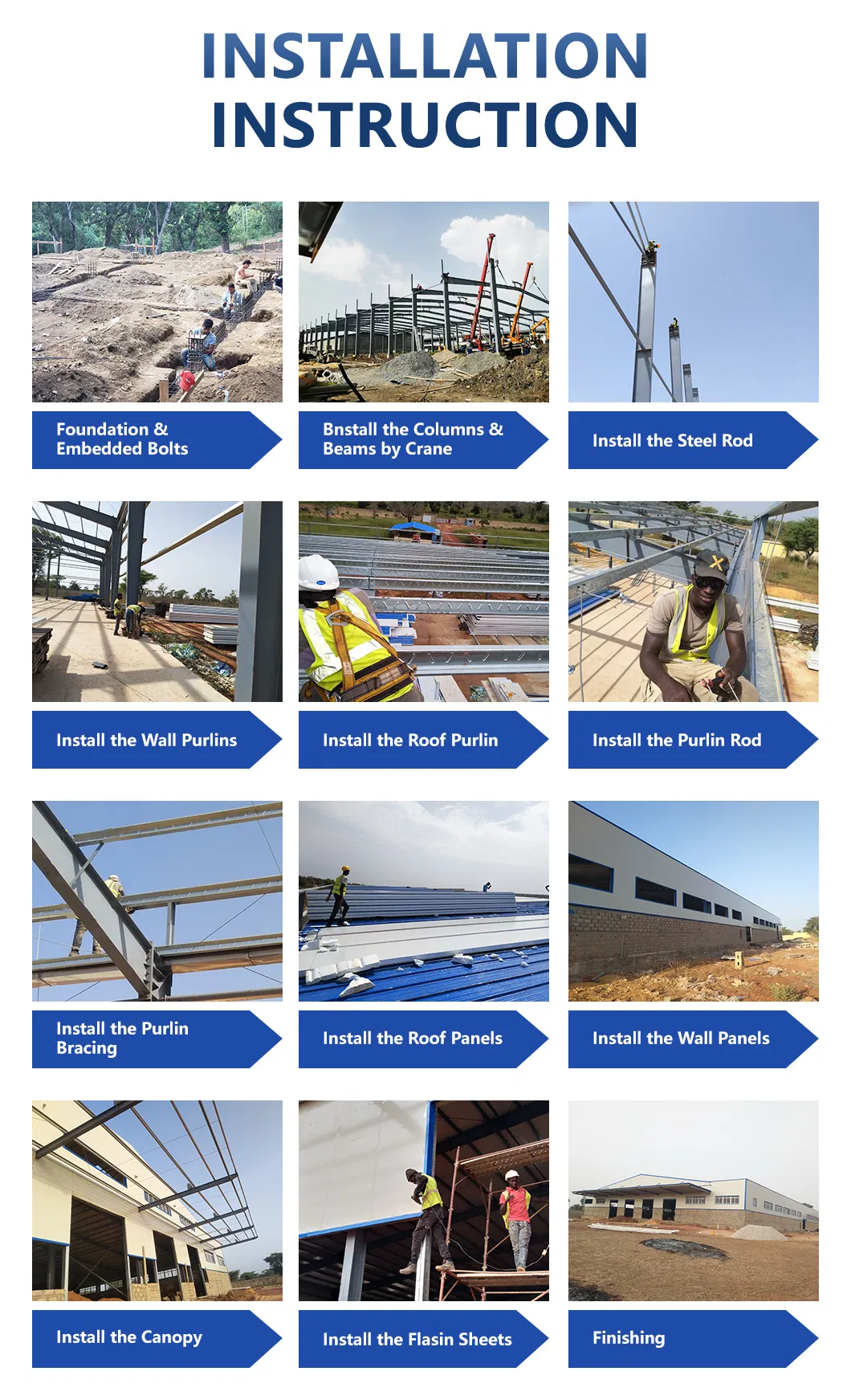

Installation Support: On-site supervision and detailed guidance drawings/videos provided.

📝

Customization Factors

To provide an accurate design, please consider the following:

Local Weather: Max wind speed, snow load, and seismic levels.
Building Size: Length × Width × Height requirements.
Purpose: Workshop, warehouse, office, or accommodation.
Insulation: Need for sandwich panels (EPS/PU/Rockwool) or single steel sheets.

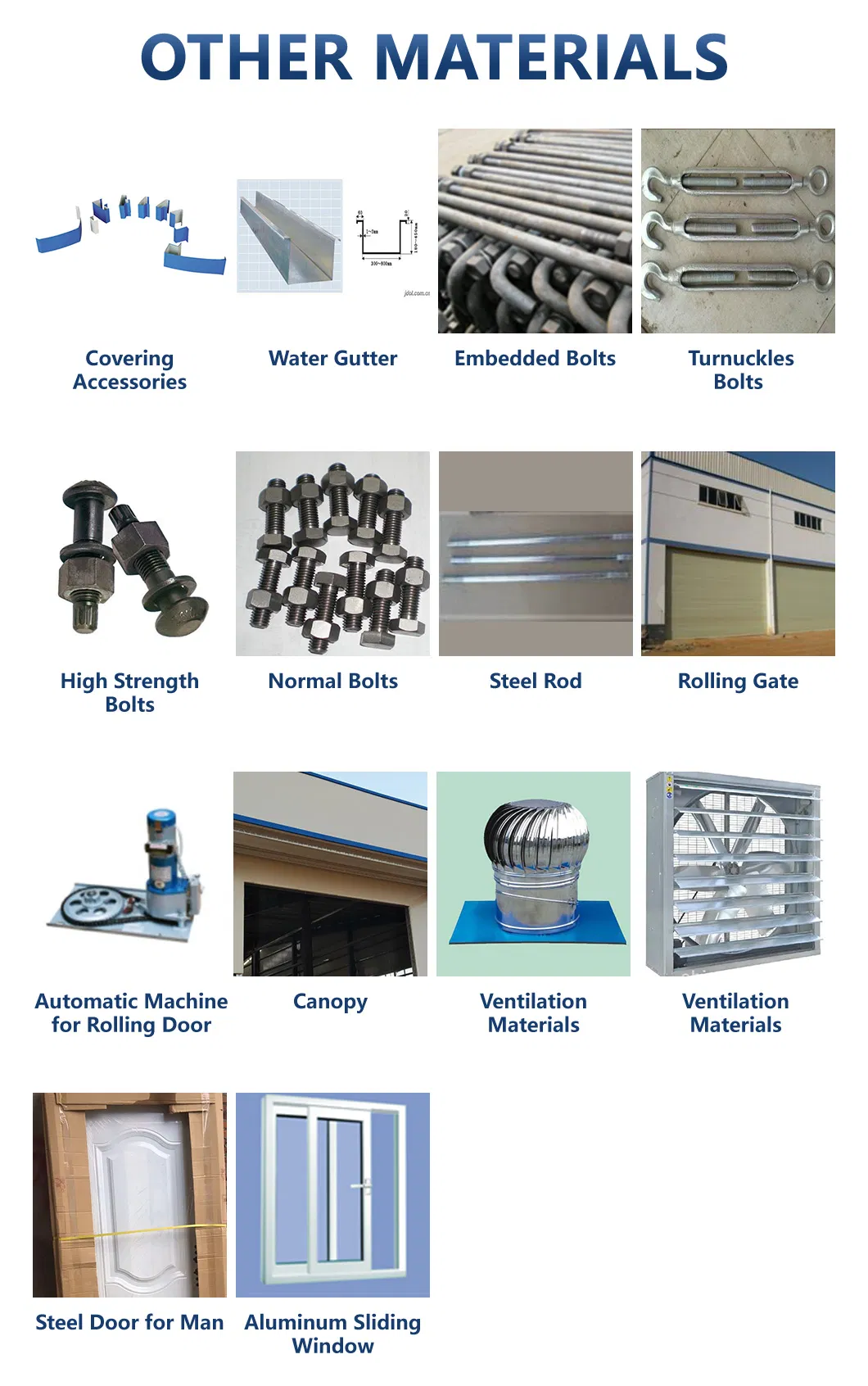

Accessories: Number of doors, windows, and crane requirements (lifting weight/height).

❓

Frequently Asked Questions

Are you a direct manufacturing factory?

Yes, we are a manufacturing factory. Our quality control flow ensures professionalism, high quality, and competitive pricing.

How do you ensure the quality of the products?

We have established procedures to check products at every stage: raw materials, in-process testing, and finished goods inspection. Third-party testing like SGS and BV is also available.

Can you provide a full design service for my project?

Yes, our excellent design team can create full solution drawings based on your specific land size and functional requirements.

Do you offer on-site installation guidance?

We provide detailed installation drawings and videos. If needed, we can also send engineers for on-site supervision and training.

What materials are suggested for thermal insulation?

We suggest EPS, fiberglass wool, Rockwool, or PU sandwich panels for thermal insulation. For non-insulated buildings, simple metal steel sheets are a cost-effective alternative.

What information is needed for a quote?

Please provide the location, building dimensions, local wind/snow loads, and your preference for doors, windows, and cranes.
