| Model NO. | OYCC60 | Operation Type | Automatic |
|---|---|---|---|
| Medium Material | Metal Fiber | Dust Collecting Method | Dry |
| Type | Fabric Dust Collector | Condition | New |
| Power | 5.5kw - 150kw | Air Volume | 6000m3/H-150000m3/H |
| Warranty | 1 Year | Certificate | SGS, ISO, CE |
| Package Size | 680.00cm * 220.00cm * 8000.00cm | ||

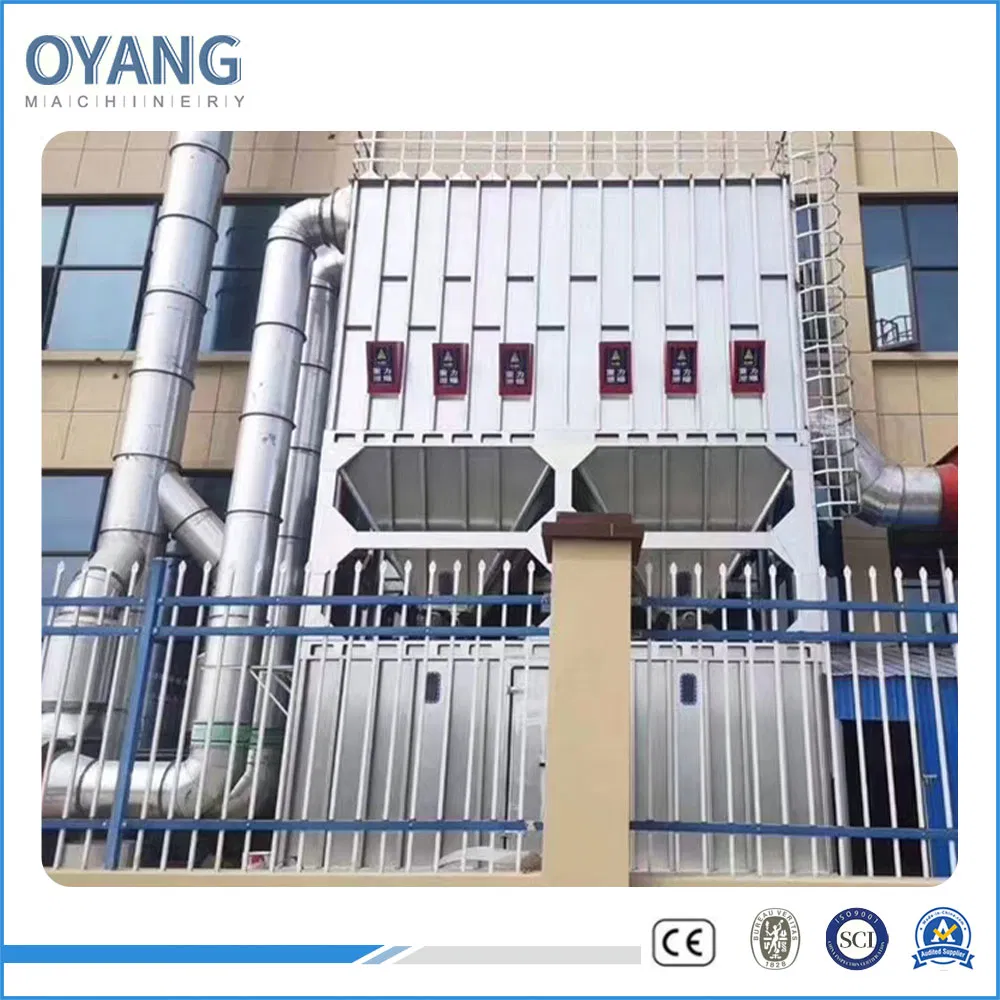

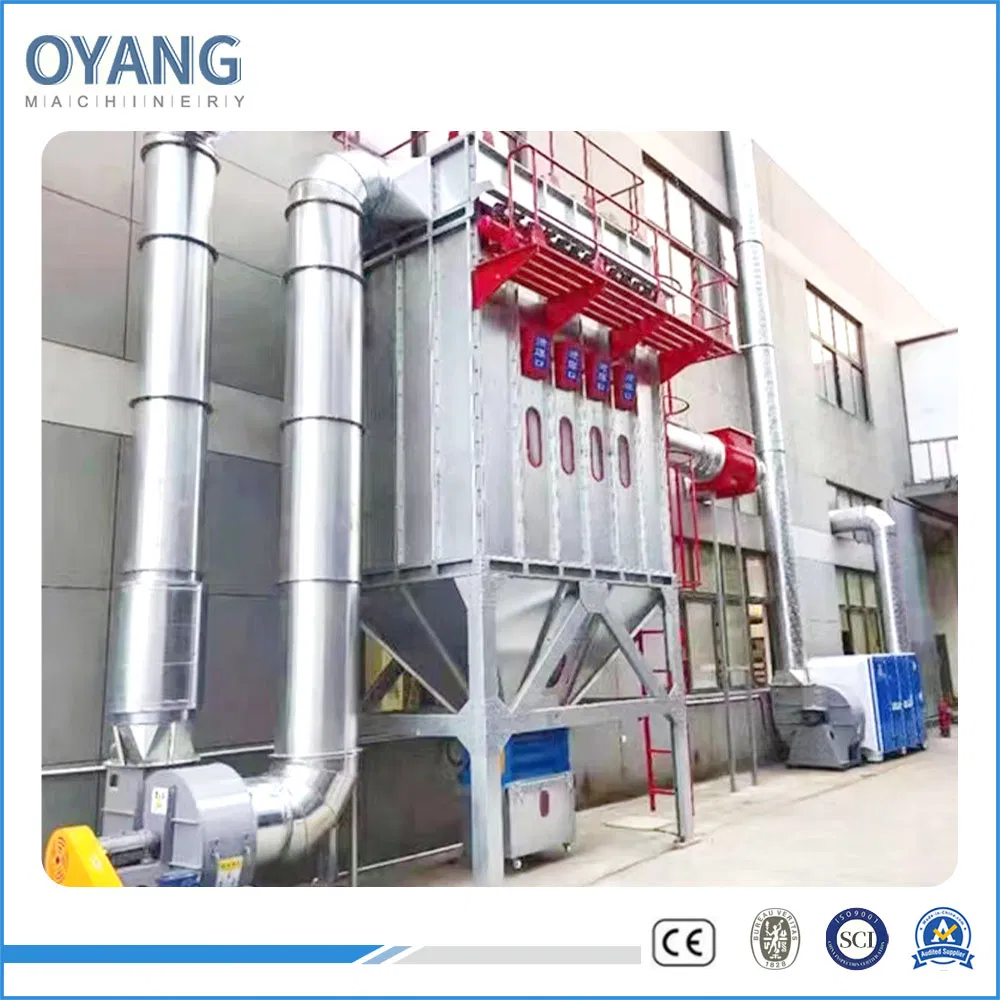

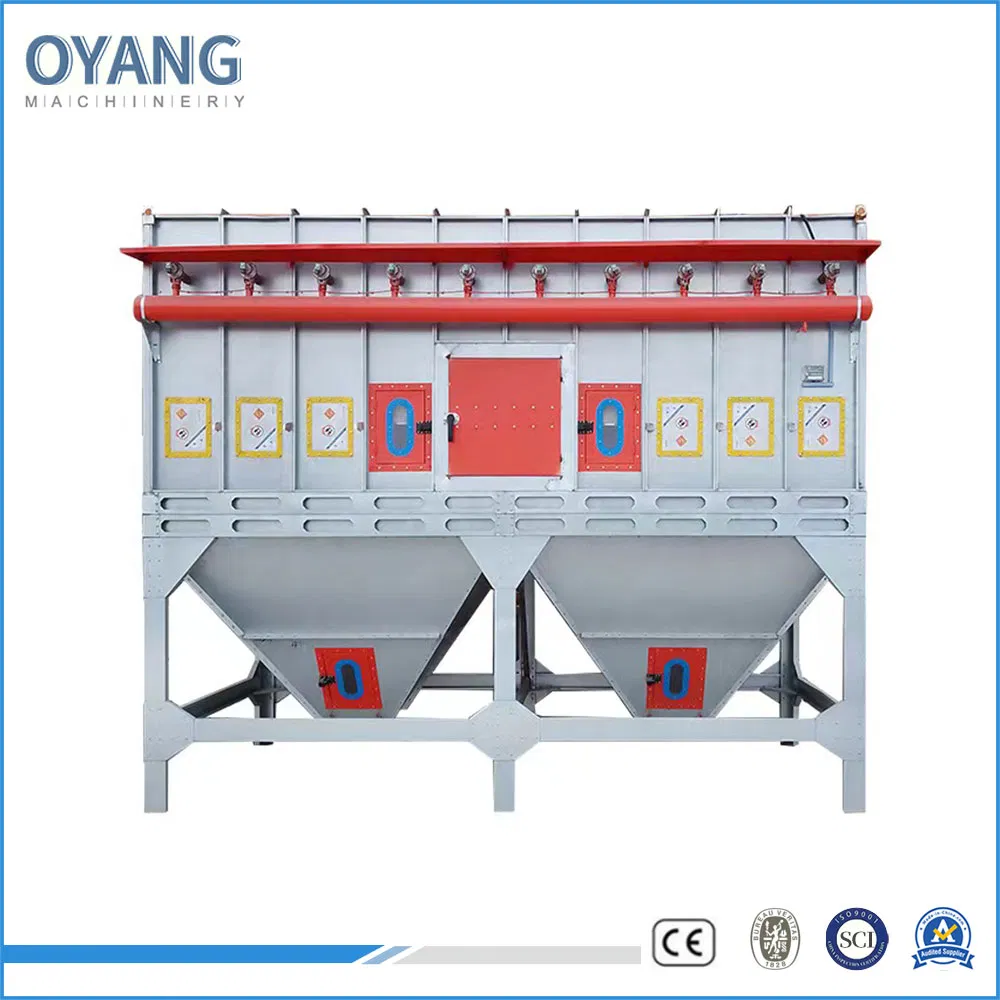

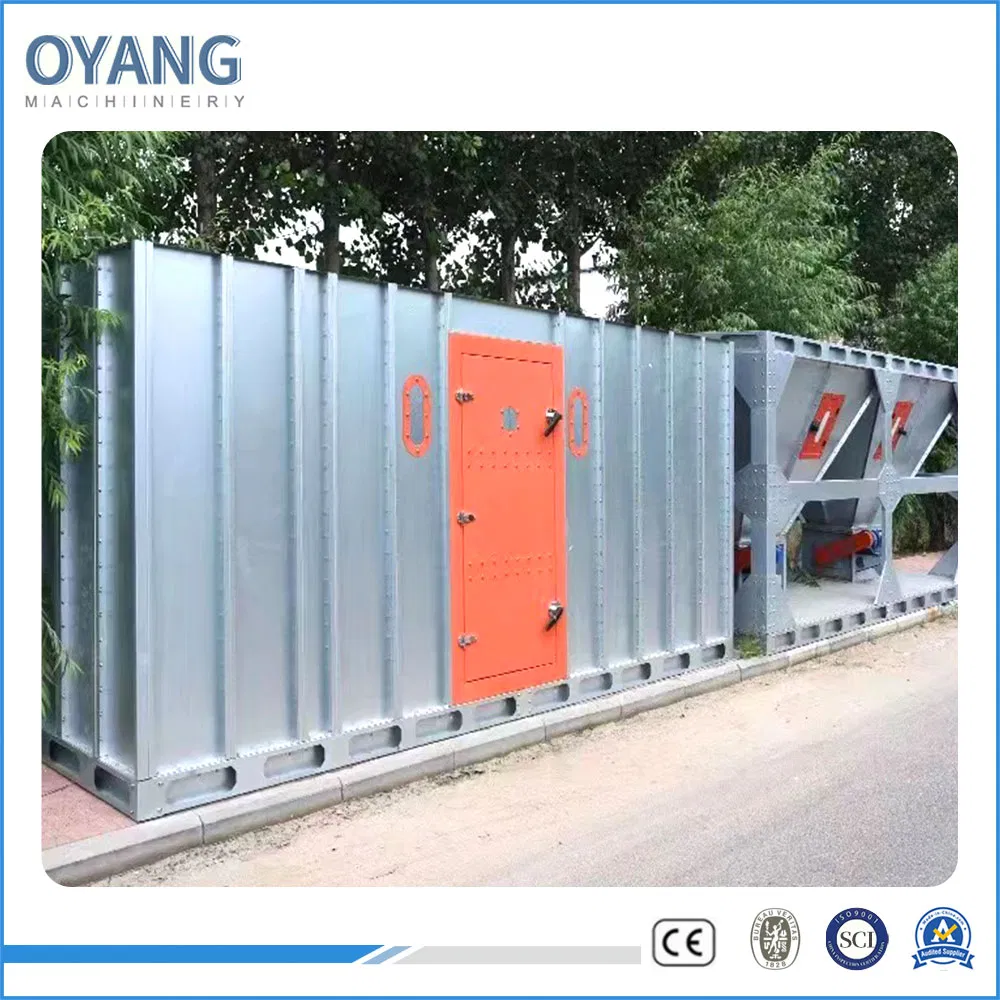

Best Industrial Woodworking Dust Collector System
1. Structure Introduction

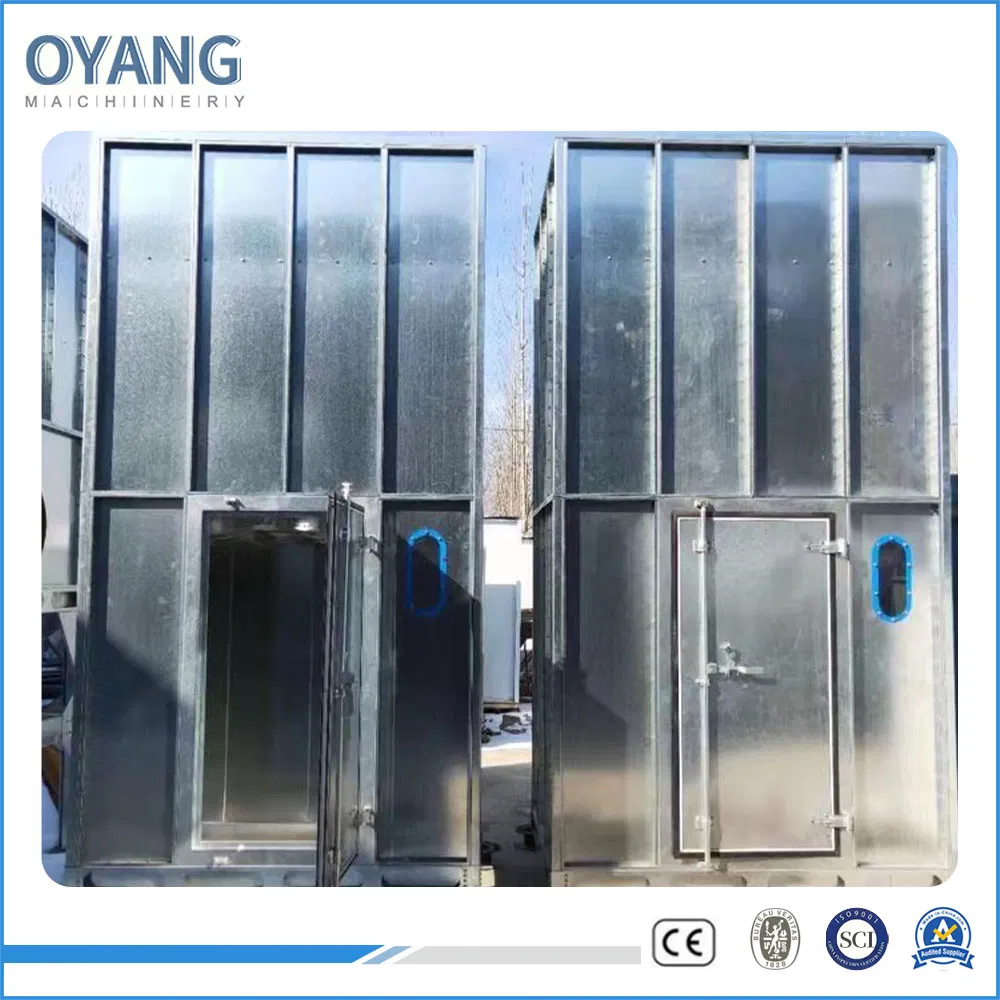

Bag filters are widely used as dust removal equipment. From the outside, the bag filter is mainly composed of a box and an ash hopper. Inside the box are fans, unloaders, and ash discharge valves. There will be access openings and burst vents specially designed for maintenance on the box.
The main accessories are dust bags and dust collector frames. The dust bag and the dust skeleton are the main internal structures. The skeleton plays a supporting role, and the dust filter bag filters the dust, thereby separating the dust and the flue gas.
2. Operating Principle
The dust-laden airflow enters the cylindrical filter bag from the lower part, and impurities with large particles fall directly into the ash hopper. When the dust-laden gas passes through the pores of the filter material, the dust is trapped, and the clean gas passing through is discharged. Dust deposited on the filter material falls off under the action of pulse flushing into the ash hopper.
| Series | Item No. | Power (kw) | Air Volume (m³/h) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| OYCC series | OYCC30 | 30 | 30000 | 4500 | 2200 | 8000 |
| OYCC60 | 60 | 70000 | 6800 | 2200 | 8000 | |
| OYCC150 | 150 | 150000 | 13000 | 2200 | 8000 | |
| OYCP series | OYCP60 | 60 | 70000 | 6800 | 2200 | 6500 |
| OYCP120 | 120 | 120000 | 11500 | 2200 | 6500 | |
| OYS series | OYS7 | 7.5 | 8000 | 3000 | 1200 | 3000 |
| OYS15 | 15 | 15000 | 3800 | 1200 | 3000 |
Specializing in industrial dust equipment for over 10 years, our R&D team brings an average of 6+ years of specialized experience. We integrate high-quality components from leading global suppliers such as Siemens, Schneider, and ABB to ensure reliability in both domestic and international markets.
