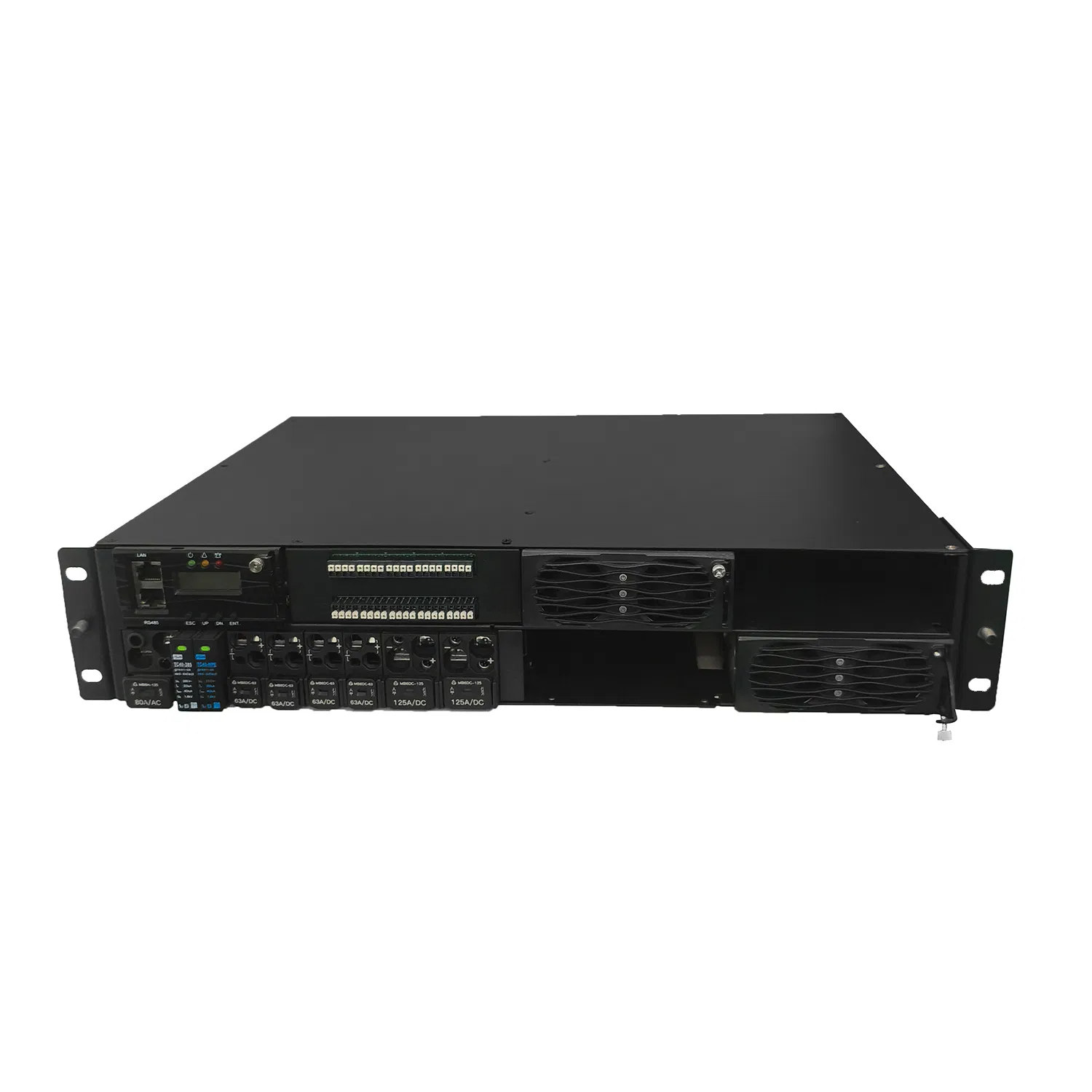

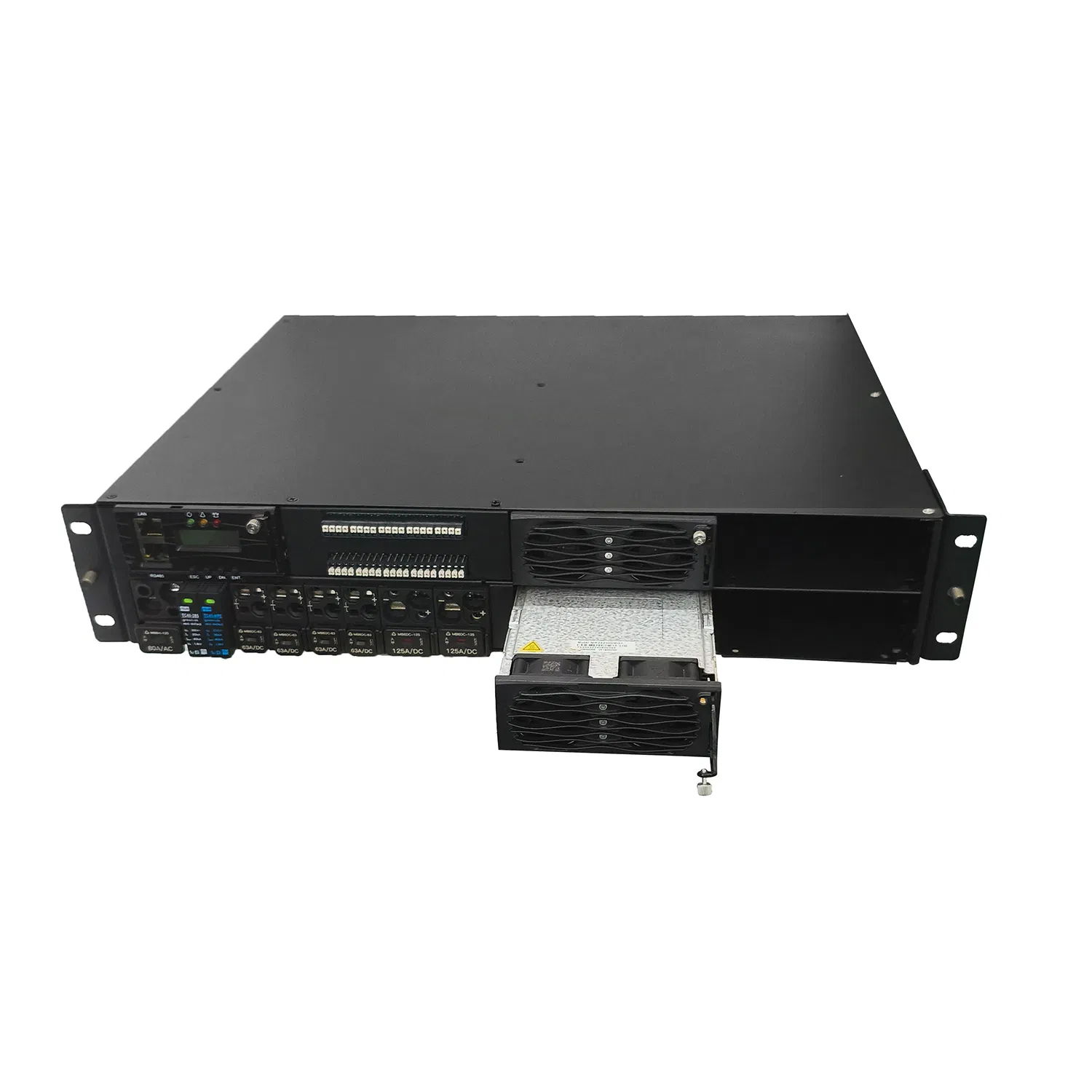

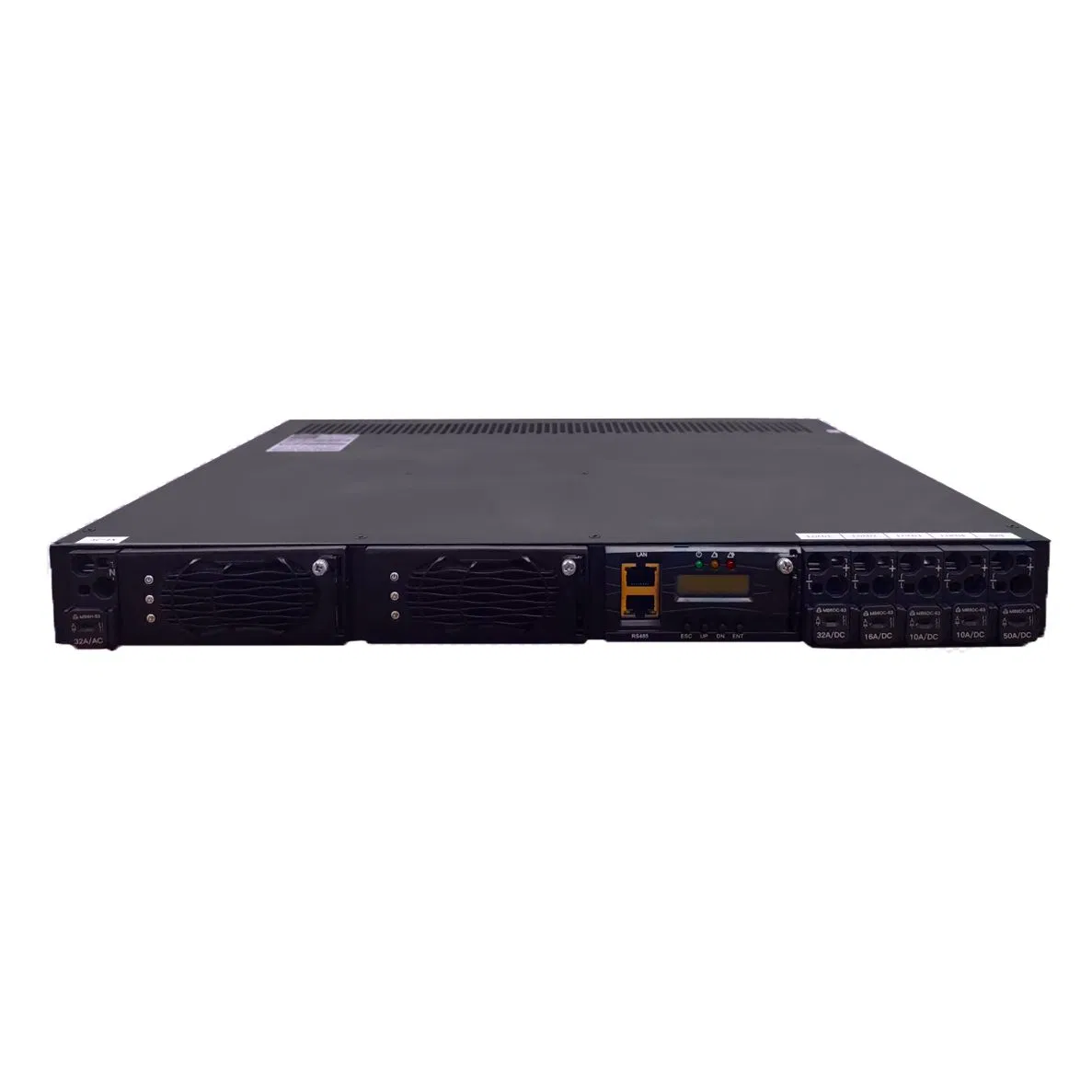

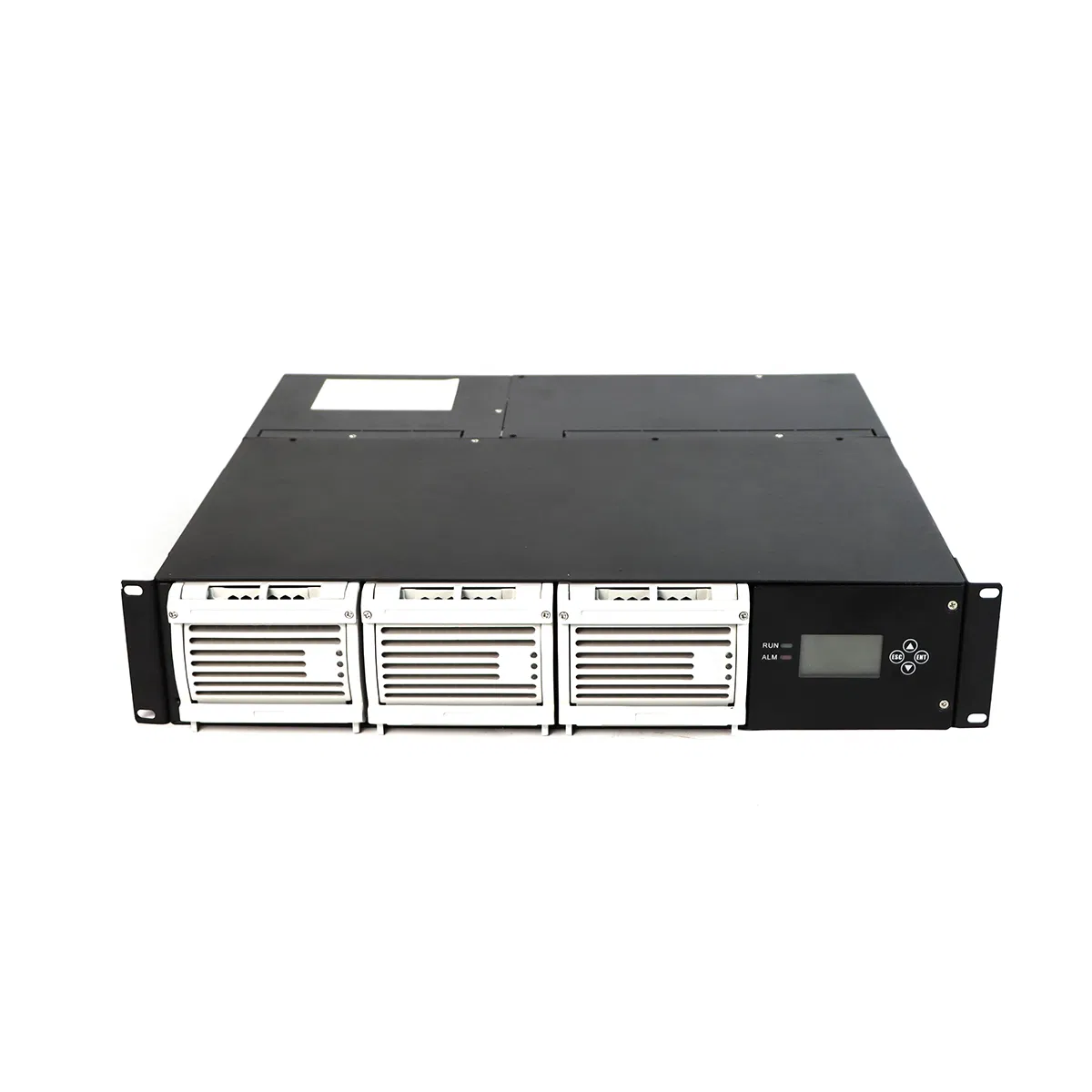

Bvt Rack Mount DC Power Supply 24VDC 1.8kw Rectifier 60A Embedded Rack Mounted Rectifier Modular Rack Telecom Rectifier System

Basic Specifications

Model NO.

BVT220/24-60AS

Output Power

1800W

Input Voltage

220V

Connection Mode

Parallel Switching Power Supply

Starting Mode

Self-excited Switching Power Supply

Voltage Regulating

Width Modulation Type

Energy Trans.

Two-way Transmission

Modulation

PWM

Certification

CE, ISO

Product Name

Rectifier System

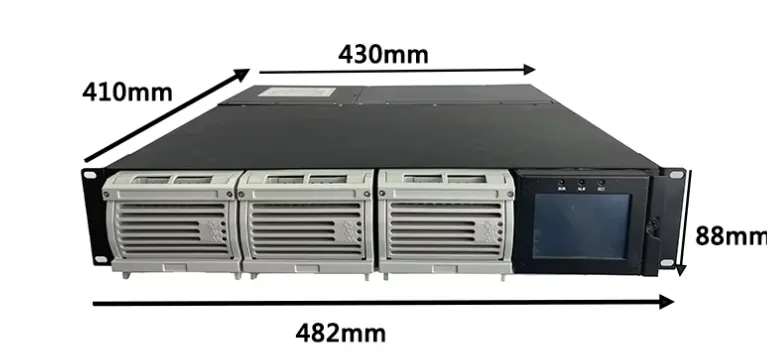

Dimension

482*410*88mm

HS Code

8504401990

Product Highlights

⚡

Wide Input Range

Operating range of AC input voltage: 90~290Vac for global compatibility.

📏

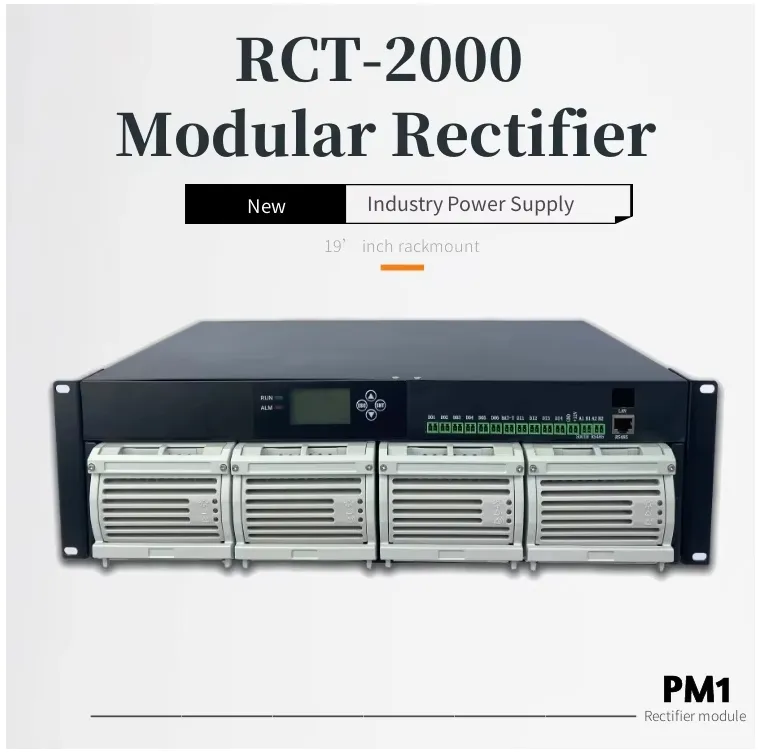

Rackmount Design

Compact 19-inch rackmount shelf for standard industrial installations.

🔋

Battery Management

Perfect battery management with accessory battery temperature detector.

🛠️

High Capacity

60 amp output per module, up to 180 amp system capacity for 2U systems.

Module Parameter	Technical Specifications
Rectifier Module	BR481800 1PCS
Efficiency	93.2%
Power Capacity (Max)	1800W
Height	88mm (2RU)
Width	482mm (19 Inch)
Depth	410mm
Weight	Approx. 14KG
Classification	IP21

Detailed Technical Data

DC Output Details	Specification
Output Voltage Range	21-29VDC (26.7Vdc nominal)
Output Current (Max)	66A
Equalize Charge	28.2V (Adjustable)
Float Voltage	26.7V (Adjustable)
Voltage Regulation	≤±1%
Ripple Voltage	≤200mV (0-20MHz)
Monitoring Interface	TCP/IP, RS485, SNMP (Optional)
Operating Temp.	-40 to +55°C

Quality Certifications & Solutions

🛡️

Full Protections

Input under-voltage, anti-DC reverse connection, over-voltage, overload, short-circuit, and over-temperature protections.

📊

Smart Monitoring

LCD display for input/output voltage, frequency, current, and historical alarm records up to 1000 units.

FAQ

Do you have a charging solution?

Yes, the BWT system is suitable for battery charging usage. Our rectifier system is widely used for N+1 power supply and battery charging system management.

Does the product support the SNMP function?

Yes, 90% of our products support SNMP. All products include built-in RS485 communication as a standard feature.

Can the system adapt to high temperatures?

The system supports operating temperatures from -20℃ to 60℃. Stable operation is maintained, though air conditioning cooling in high-temperature environments will increase product life.

What is the overload capacity of the inverter load?

It features super overload capacity and can withstand full load startup. With a bypass switch, it can switch to bypass power supply when overloaded.

Can I choose the mains mode for the power supply?

Yes, the system supports both AC main power supply and DC main power supply. These modes can be selected flexibly via the LCD panel or communication software.

What are the built-in protection functions?

Included protections are input under-voltage, anti-DC reverse connection, buffer protection, over-voltage, overload, short-circuit, and over-temperature protection with temperature-controlled fans.
