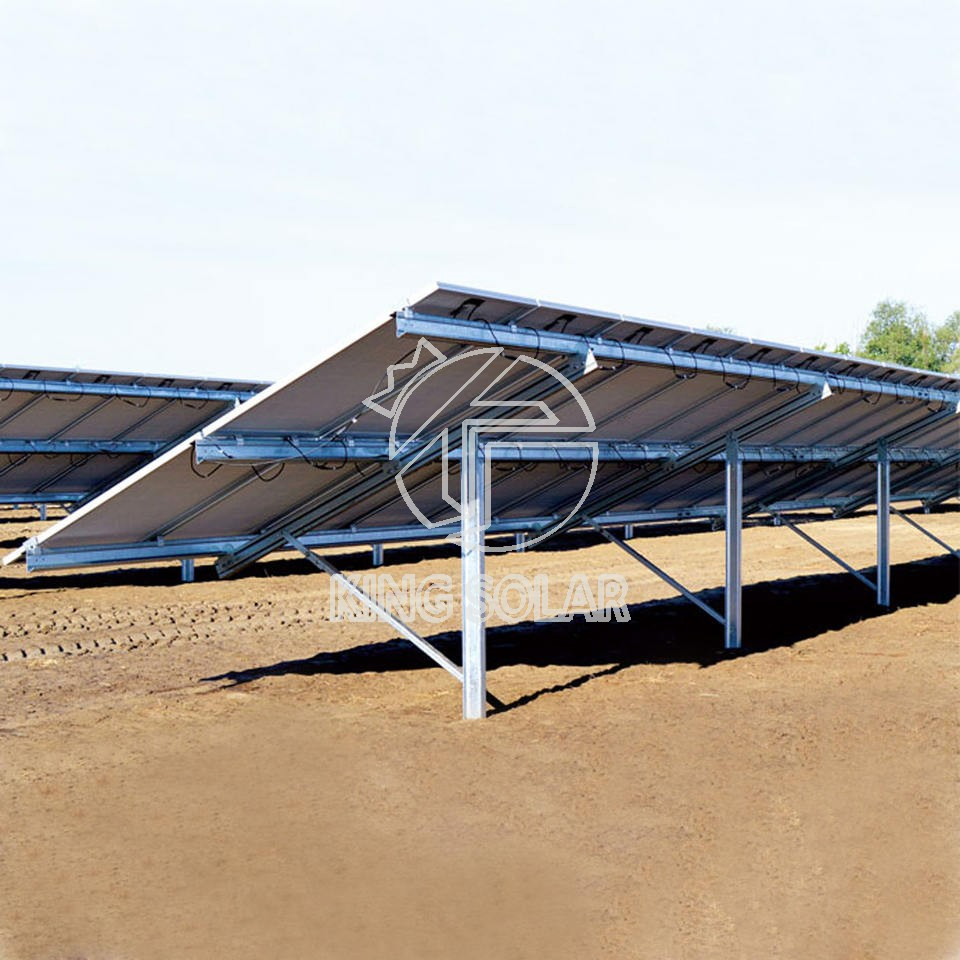

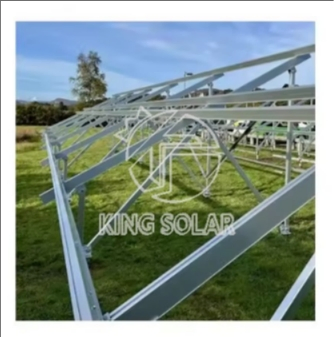

Modular Steel Solar Panel Ground Mounting Rack System

1 / 5

Modular Steel Solar Panel Ground Mounting Rack System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ

Basic Information

Model NO.

Steel

Certification

ISO, CE

Application

Commercial / Industrial

Material

High-Grade Steel

Type

Ground Bracket

Lead Time

5-15 Days

Transportation

Sea / Air / CIF / FOB

Corrosion Grade

IP65 / Outdoor Resistant

Production Capacity

1GW / Year

HS Code

730890000

⚙

Product Description

Multiple foundation options are available for different land types. Our team of specialized technicians can design ordinary ground supports, garages, sheds, adjustable tripods, and other supports set up on the ground. We customize all solutions according to your specific requirements. Available materials include aluminum alloy and hot-dip galvanized steel.

Foundation Applications

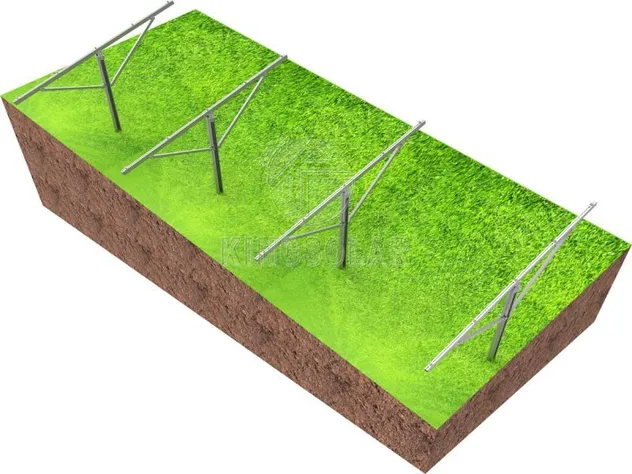

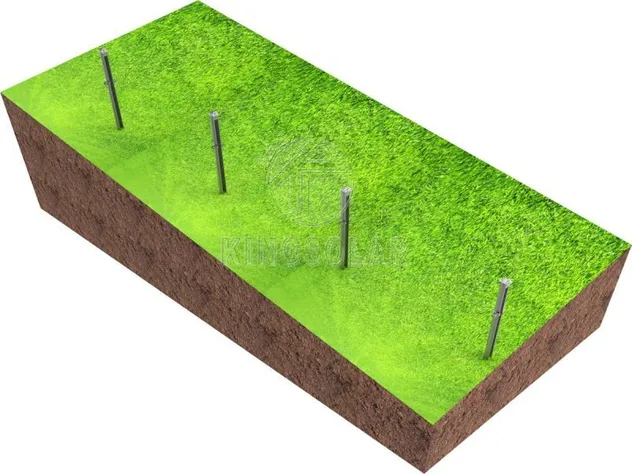

Pile Driven / Ground Screw: Creates a robust structure fully utilizing benefits of ground screws. Cost-competitive and environmentally friendly, designed to cope with harsh conditions like heavy snow load or high wind speeds.

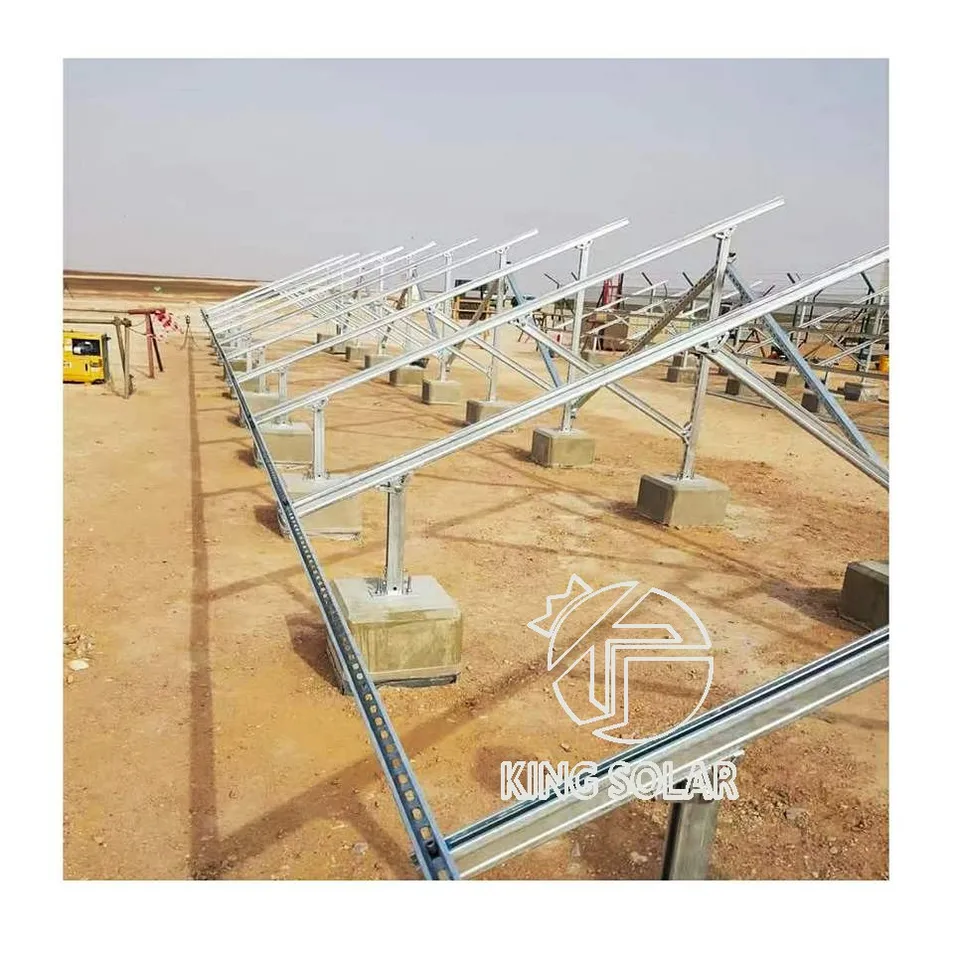

Concrete Base: Best suited where ground excavation is not permitted. Sizes are adjusted based on static requirements and location. Also suitable for cement flat roofs.

📊

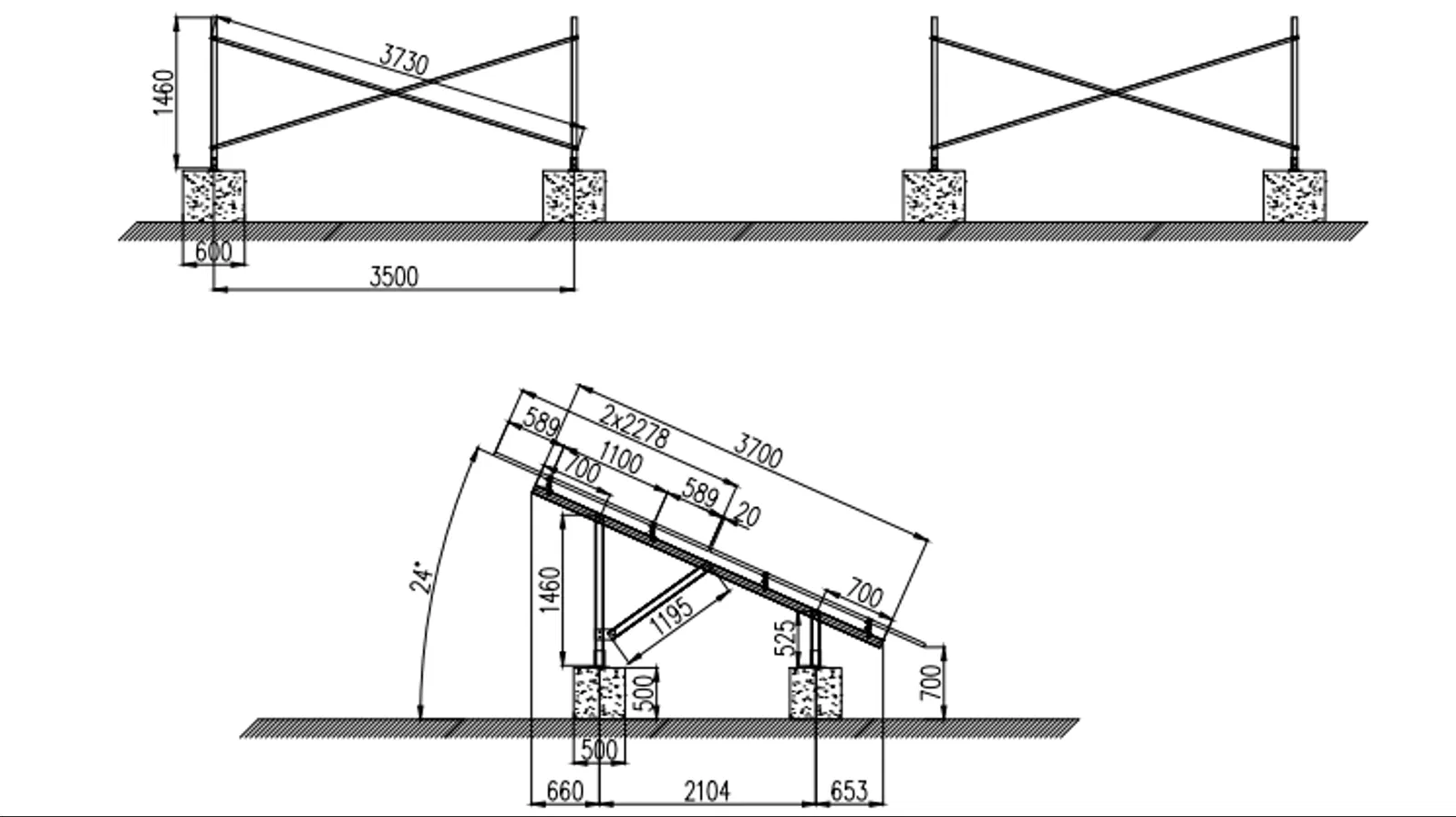

Technical Specifications

Material	Anodized AL6005-T5, HDG steel Q235B, SUS304
Foundation	Ground Screw and Concrete Base
Warranty	10 years warranty and 25 years service life
Standard	AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Max Wind Load	Up to 60m/s
Snow Load	Up to 1.4KN/M²
Module Orientation	Portrait or Landscape

📝

Inquiry Checklist

To provide an accurate quote, please prepare the following information:

Solar panel dimensions (L/W/T) and power (W).
Panel array configuration (Rows x Columns).
Local Wind Load (m/s) and Snow Load (cm).
Installation Angle and Orientation (Portrait/Landscape).
Installation environment (Salinity control requirements).
Preferred foundation type (Concrete or Ground Screw).

🏢

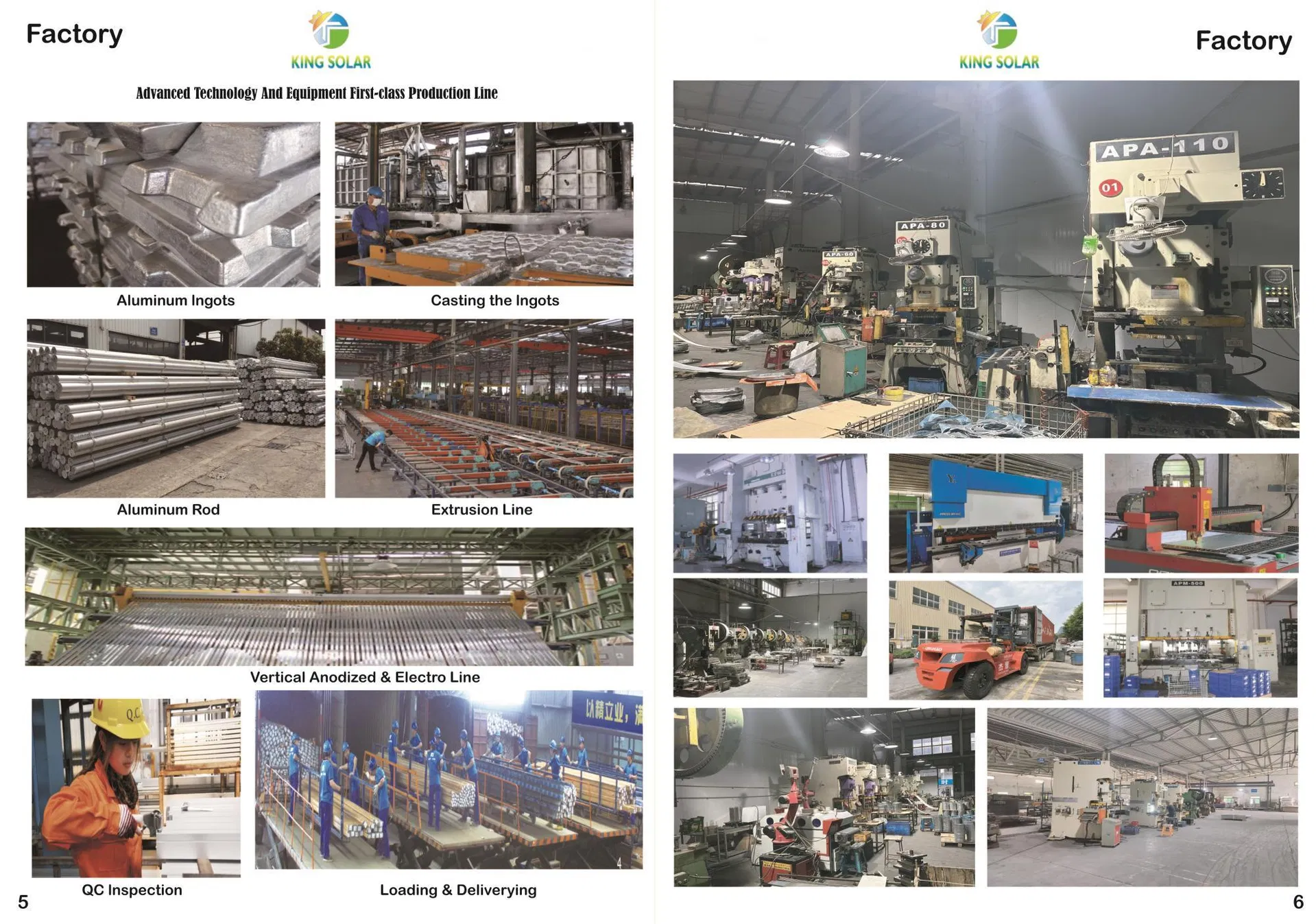

Manufacturing & Advantages

Located in a major coastal manufacturing hub with convenient sea transport, our independent factory specializes in customized solar mounting solutions. We offer specialized color processing and tailored designs to meet diverse client needs.

Key Benefits:

Lightweight design for easy transportation and safe construction.
High corrosion resistance and salt tolerance for coastal environments.
Maximum pre-assembly to save construction time and labor costs.
Environmental protection; durable and fully recyclable materials.
Versatile solutions suitable for a wide variety of geological conditions.

❓

Frequently Asked Questions

Q1: Are you a professional photovoltaic system manufacturer?

Yes, we have an R&D team offering free system design and services. With our own factory, we possess over 10 years of professional production experience.

Q2: Do you support OEM and ODM services?

Yes, we supply both OEM and ODM services. We have a long history of designing for top global EPC distributors.

Q3: What is your standard delivery time?

Standard delivery is between 5-15 days. For customized products, the lead time is approximately 20 days.

Q4: Can you provide samples for testing?

Yes, we provide free samples for your quality testing and verification.

Q5: What is the warranty period for your mounting systems?

We provide a 10-year warranty and a projected 25-year service lifespan for our structures.

Q6: How are the goods shipped?

Samples are usually shipped via DHL or FedEx (3-5 days). Large orders are shipped by sea, taking between 7 to 30 days depending on the destination.
